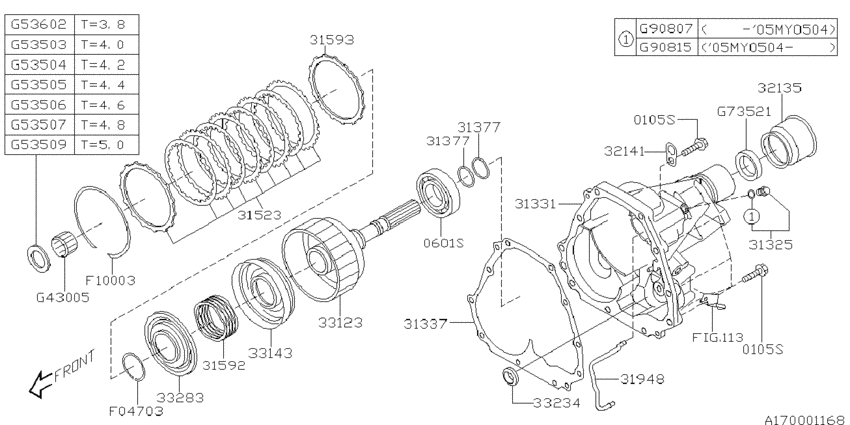

At, transfer & extension (ACT-4; 4AT; 2003-11-01~) Diagram Subaru LEGACY
- Year
- 2003 - 2011
- Sales region
- U.S.A.
- Engine
- 253
- drive
- 4W
- transmission
- 4AT
- grade
- 25ILTD
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0105S
|
0105S
010508350 FLANGE BOLT2003-11-01 ~ 2005-05-01; 5MT.253 +4AT +(S+W).25GT.(5MT+5AT) +25GTLTD.(5MT+5AT) +5AT.30D |
010508350 |
US $0.99 |
||
|
0105S
|
0105S
010508350 FLANGE BOLT2003-11-01 ~ 2005-05-01; 5MT.253 +4AT +(S+W).25GT.(5MT+5AT) +25GTLTD.(5MT+5AT) +5AT.30D |
010508350 |
US $0.99 |
||
|
0601S
|
0601S
060162080 RADIAL BALL BEARING2003-11-01 ~ 2005-05-01; 5MT.253 +4AT +(S+W).25GT.(5MT+5AT) +25GTLTD.(5MT+5AT) +5AT.30D |
060162080 |
US $17.70 |
||
|
31325
|
31325
31325KA080 BOLT ASSYSEAL2003-11-01 ~ 2005-05-01; 4AT +(S+W).25GT.5AT +25GTLTD.5AT +5AT.30D |
31325KA080 |
from US $5.08 |
||
|
31331
|
31331
31331AA221 CASE COMPLEXT2003-11-01 ~ 2005-05-01; 4AT |
31331AA221 |
US $458.78 |
||
|
31337
|
31337
31337AA191 GSKTTRANS CASE RR2003-11-01 ~ 2005-05-01; 4AT |
31337AA191 |
from US $5.31 |
||
|
31377
|
31377
31377AA201 RINGSEAL2003-11-01 ~ 2005-05-01; 4AT |
31377AA201 |
US $6.51 |
||
|
31377
|
31377
31377AA201 RINGSEAL2003-11-01 ~ 2005-05-01; 4AT |
31377AA201 |
US $6.51 |
||
|
31523
|
31523
31523AA410 PLATE SET-TRANSFER CLUTCH2003-11-01 ~ 2005-05-01; 4AT; 5PIECE T=3.3 |
31523AA410 |
from US $111.28 |
||
|
31592
|
31592
31592AA060 SPRCCH PIST RTN2003-11-01 ~ 2005-05-01; 4AT |
31592AA060 |
US $8.50 |
||
|
31593
|
31593
31593AA151 PLTPRESS FR2003-11-01 ~ 2005-05-01; 4AT +5AT.30D; T=3.3 |
31593AA151 |
from US $27.73 |
||
|
31593
|
31593
31593AA161 PLTPRESS2003-11-01 ~ 2005-05-01; 4AT; T=3.7 |
31593AA161 |
from US $27.73 |
||
|
31593
|
31593
31593AA171 PLTPRESS2003-11-01 ~ 2005-05-01; 4AT; T=4.1 |
31593AA171 |
from US $27.73 |
||
|
31593
|
31593
31593AA181 PLTPRESS2003-11-01 ~ 2005-05-01; 4AT; T=4.5 |
31593AA181 |
from US $27.73 |
||
|
31948
|
31948
31948AA050 PIPTRF CCH APPLY2003-11-01 ~ 2005-05-01; 4AT |
31948AA050 |
US $12.46 |
||
|
32135
|
32135
32135AA002 COVER-DUST2003-11-01 ~ 2005-05-01; 4AT +(S+W).25GT.5AT +25GTLTD.5AT +5AT.30D |
32135AA002 |
US $13.74 |
||
|
32141
|
32141
441865610 HANGER TRANS2003-11-01 ~ 2005-05-01; 4AT +(S+W).25GT.5AT +25GTLTD.5AT +5AT.30D |
441865610 |
US $2.55 |
||
|
33123
|
33123
33123AA180 SFT CPRR DRIVE2003-11-01 ~ 2005-05-01; 4AT |
33123AA180 |
US $236.47 |
||
|
33143
|
33143
33143AA080 PISTONCLUTCHT2003-11-01 ~ 2005-05-01; 4AT |
33143AA080 |
US $35.40 |
||
|
33234
|
33234
33234AA000 SEAL AYTRF CCH2003-11-01 ~ 2005-05-01; 4AT |
33234AA000 |
US $9.20 |
||
|
33283
|
33283
33283AA010 SEALTRF PISTON2003-11-01 ~ 2005-05-01; 4AT |
33283AA010 |
from US $25.22 |
||
|
F04703
|
F04703
805047030 SNAPRINGOTR 472003-11-01 ~ 2005-05-01; 4AT |
805047030 |
US $3.40 |
||
|
F10003
|
F10003
805100030 SNAPRINGINR 1202003-11-01 ~ 2005-05-01; 4AT |
805100030 |
US $4.53 |
||
|
G43005
|
G43005
806430050 NDLE BRG30X37X262003-11-01 ~ 2005-05-01; 4AT |
806430050 |
from US $18.83 |
||
|
G53503
|
G53503
806535030 CYLINDRICAL RLR BRG2003-11-01 ~ 2005-05-01; 4AT; T=4.0 |
806535030 |
from US $8.27 |
||
|
G53504
|
G53504
806535040 CYLINDRICAL RLR BRG2003-11-01 ~ 2005-05-01; 4AT; T=4.2 |
806535040 |
from US $9.03 |
||
|
G53505
|
G53505
806535050 CYLINDRICAL RLR BRG2003-11-01 ~ 2005-05-01; 4AT; T=4.4 |
806535050 |
from US $9.03 |
||
|
G53506
|
G53506
806535060 CYLINDRICAL RLR BRG2003-11-01 ~ 2005-05-01; 4AT; T=4.6 |
806535060 |
US $14.87 |
||
|
G53507
|
G53507
806535070 CYLINDRICAL RLR BRG2003-11-01 ~ 2005-05-01; 4AT; T=4.8 |
806535070 |
from US $9.03 |
||
|
G53509
|
G53509
806535090 CYLINDRICAL RLR BRG2003-11-01 ~ 2005-05-01; 4AT +(S+W).25GT.5AT +25GTLTD.5AT +5AT.30D; T=5.0 |
806535090 |
US $15.15 |
||
|
G53602
|
G53602
806536020 CYLINDRICAL RLR BRG2003-11-01 ~ 2005-05-01; 4AT; T=3.8 |
806536020 |
from US $8.29 |
||
|
G73521
|
G73521
806735210 OIL SEAL 35x50x112003-11-01 ~ 2005-05-01; 4AT +(S+W).25GT.5AT +25GTLTD.5AT +5AT.30D |
806735210 |
from US $4.09 |
||
|
G90807
|
G90807
806908070
Seal O-ring
2003-11-01 ~ 2005-04-01; 4AT +(S+W).25GT.5AT +25GTLTD.5AT +5AT.30D; 8.15X1.78 |
806908070 |
— | ||
| replacement | |||||
|
G90807
|
G90807
806908150 Seal O-ring2003-11-01 ~ 2005-04-01; 4AT +(S+W).25GT.5AT +25GTLTD.5AT +5AT.30D; 8.15X1.78 |
806908150 |
from US $0.39 |
||
|
G90815
|
G90815
806908150 Seal O-ring2005-04-01 ~ 2005-05-01; 4AT +(S+W).25GT.5AT +25GTLTD.5AT +5AT.30D |
806908150 |
from US $0.39 |
||
