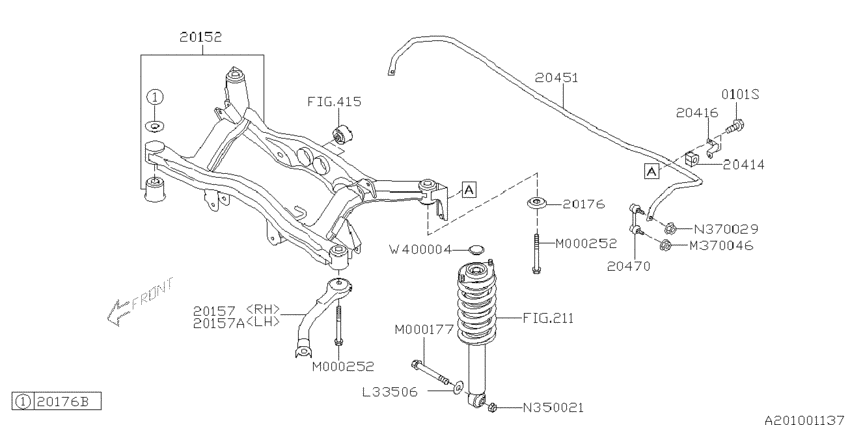

Rear suspension (FRAME & STABILIZER (OPC.83) '06MY-'06MY; S.25GTLTD.MT; 2004-10-01~2006-06-01) Diagram Subaru LEGACY
- Year
- 2003 - 2011
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 5MT
- grade
- 25GTLTD
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0101S
|
0101S
010108200 FLANGE BOLTPLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
010108200 |
US $0.42 |
||
|
0101S
|
0101S
010110207 FLANGE BOLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
010110207 |
US $0.57 |
||
|
20152
|
20152
20152AG00B
Frame sub assembly-rear suspension
2005-11-01 ~ 2006-07-01; S +SOBK +W +WOBK |
20152AG00B |
— | ||
|
20152
|
20152
20152AG00C
Frame sub assembly-rear suspension
2006-07-01 ~ 2007-02-01; S +SOBK +W +WOBK |
20152AG00C |
— | ||
|
20152
|
20152
20152AG00D
Frame sub assembly-rear suspension
2007-03-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20152AG00D |
— | ||
|
20157
|
20157
20157AG02A
Support-sub frame, right
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20157AG02A |
— | ||
|
20157A
|
20157A
20157AG03A
Support-sub frame, left
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20157AG03A |
— | ||
|
20176
|
20176
20176AG06A
STOPPER SUB FRM LWR
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20176AG06A |
— | ||
|
20176B
|
20176B
20176AE01A
STOPPER SBFRM UPR
2005-11-01 ~ 2007-03-01; W +S |
20176AE01A |
— | ||
|
20414
|
20414
20464AE07A
Bushing-stabilizer
2005-11-01 ~ 2007-03-01; S.(25GT+25GTLTD) +W.GT#; FOR STABILIZER(D=16) |
20464AE07A |
— | ||
|
20416
|
20416
20466AG000
Clamp-stabilizer bushing
2005-11-01 ~ 2007-03-01; W +S |
20466AG000 |
— | ||
|
20451
|
20451
20451AG01A
Stabilizer-rear
2005-11-01 ~ 2007-03-01; S.(25GT+25GTLTD) +W.GT#; STABILIZER(D=16) |
20451AG01A |
— | ||
|
20470
|
20470
20470AE00C
Link assembly-stabilizer,rear
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20470AE00C |
— | ||
|
M000177
|
M000177
901000177 BOLT FLG14X111X252005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901000177 |
from US $4.33 |
||
|
M000252
|
M000252
901000252 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ M14X1202005-11-01 ~ 2007-03-01; W +S |
901000252 |
US $8.07 |
||
|
M000252
|
M000252
901000252 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ M14X1202005-11-01 ~ 2007-03-01; W +S |
901000252 |
US $8.07 |
||
|
N350021
|
N350021
902350021 SELF LOCK NUT M142005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902350021 |
US $5.10 |
||
|
W400004
|
W400004
909400004 PLUG2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
909400004 |
from US $0.44 |
