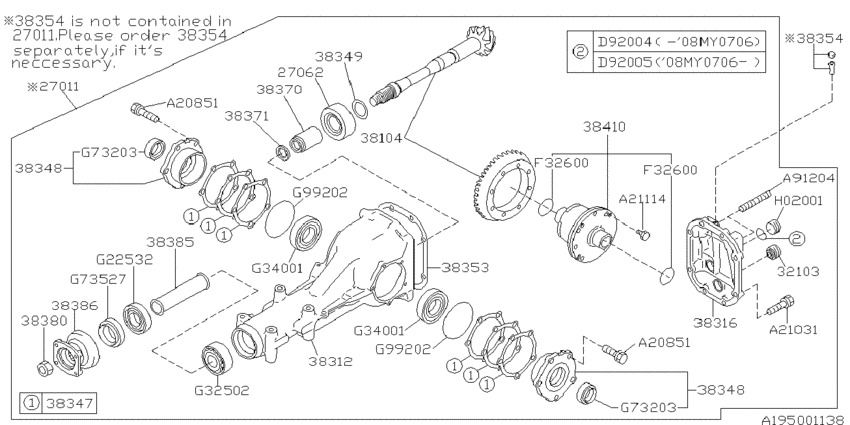

Differential (individual) ('07MY-; 6MT; 2005-11-01~) Diagram Subaru LEGACY
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 6MT
- grade
- 25GTB
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27011
|
27011
27011AB050 DIFF ASSY RR2005-11-01 ~ 2007-03-01; 6MT; G/R=3.545 |
27011AB050 |
US $2,404.37 |
||
|
27062
|
27062
27062AA000 BRGDRIVE PINION RR2005-11-01 ~ 2007-03-01; 6MT |
27062AA000 |
from US $40 |
||
|
32103
|
32103
32103KA000 PLUG COMPLDRAIN2005-11-01 ~ 2007-03-01; 6MT +(S+W).4AT |
32103KA000 |
US $6.66 |
||
|
38104
|
38104
38104AA230 PINION CROWN GEAR2005-11-01 ~ 2007-03-01; 6MT; G/R=3.545 |
38104AA230 |
US $566.40 |
||
|
38312
|
38312
38312AA030 CARRIER DIFF2005-11-01 ~ 2007-03-01; 6MT |
38312AA030 |
US $480.02 |
||
|
38316
|
38316
38316AA060 COVERDIFF CARR2005-11-01 ~ 2007-03-01; 6MT |
38316AA060 |
US $92.61 |
||
|
38347
|
38347
383475201 SHIMAXLE BRG 020T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=0.20 |
383475201 |
from US $3.31 |
||
|
38347
|
38347
383475202 SHIMAXLE BRG 025T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=0.25 |
383475202 |
US $4.67 |
||
|
38347
|
38347
383475203 SHIMAXLE BRG 030T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=0.30 |
383475203 |
US $5.10 |
||
|
38347
|
38347
383475204 SHIMAXLE BRG 040T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=0.40 |
383475204 |
US $7.08 |
||
|
38347
|
38347
383475205 SHIMAXLE BRG 050T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=0.50 |
383475205 |
US $3.82 |
||
|
38348
|
38348
383485200 HOLDERAXLE BRG2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
383485200 |
from US $68.11 |
||
|
38348
|
38348
383485200 HOLDERAXLE BRG2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
383485200 |
from US $68.11 |
||
|
38349
|
38349
38336AA230 SPACER 2PINION309T2005-11-01 ~ 2007-03-01; 6MT; T=3.09 |
38336AA230 |
from US $8.35 |
||
|
38349
|
38349
38336AA240 SPACER 2PINION312T2005-11-01 ~ 2007-03-01; 6MT; T=3.12 |
38336AA240 |
US $8.35 |
||
|
38349
|
38349
38336AA250 SPACER 2PINION315T2005-11-01 ~ 2007-03-01; 6MT; T=3.15 |
38336AA250 |
US $8.35 |
||
|
38349
|
38349
38336AA260 SPACER 2PINION318T2005-11-01 ~ 2007-03-01; 6MT; T=3.18 |
38336AA260 |
US $8.35 |
||
|
38349
|
38349
38336AA270 SPACER 2PINION321T2005-11-01 ~ 2007-03-01; 6MT; T=3.21 |
38336AA270 |
US $9.49 |
||
|
38349
|
38349
38336AA280 SPACER 2PINION324T2005-11-01 ~ 2007-03-01; 6MT; T=3.24 |
38336AA280 |
US $9.49 |
||
|
38349
|
38349
38336AA290 SPACER 2PINION327T2005-11-01 ~ 2007-03-01; 6MT; T=3.27 |
38336AA290 |
from US $9.49 |
||
|
38349
|
38349
38336AA300 SPACER 2PINION330T2005-11-01 ~ 2007-03-01; 6MT; T=3.30 |
38336AA300 |
US $9.49 |
||
|
38349
|
38349
38336AA310 SPACER 2PINION333T2005-11-01 ~ 2007-03-01; 6MT; T=3.33 |
38336AA310 |
from US $13.31 |
||
|
38349
|
38349
38336AA320 SPACER 2PINION336T2005-11-01 ~ 2007-03-01; 6MT; T=3.36 |
38336AA320 |
from US $13.31 |
||
|
38349
|
38349
38336AA330 SPACER 2PINION339T2005-11-01 ~ 2007-03-01; 6MT; T=3.39 |
38336AA330 |
from US $13.31 |
||
|
38349
|
38349
38336AA340 SPACER 2PINION342T2005-11-01 ~ 2007-03-01; 6MT; T=3.42 |
38336AA340 |
US $13.31 |
||
|
38349
|
38349
38336AA350 SPACER 2PINION345T2005-11-01 ~ 2007-03-01; 6MT; T=3.45 |
38336AA350 |
from US $13.31 |
||
|
38349
|
38349
38336AA360 SPACER 2PINION348T2005-11-01 ~ 2007-03-01; 6MT; T=3.48 |
38336AA360 |
from US $13.31 |
||
|
38349
|
38349
38336AA370 SPACER 2PINION351T2005-11-01 ~ 2007-03-01; 6MT; T=3.51 |
38336AA370 |
US $13.31 |
||
|
38349
|
38349
38336AA380 SPACER 2PINION354T2005-11-01 ~ 2007-03-01; 6MT; T=3.54 |
38336AA380 |
from US $13.31 |
||
|
38349
|
38349
38336AA390 SPACER 2PINION357T2005-11-01 ~ 2007-03-01; 6MT; T=3.57 |
38336AA390 |
from US $13.31 |
||
|
38349
|
38349
38336AA400 SPACER 2PINION360T2005-11-01 ~ 2007-03-01; 6MT; T=3.60 |
38336AA400 |
from US $13.31 |
||
|
38349
|
38349
38336AA410 SPACER 2PINION363T2005-11-01 ~ 2007-03-01; 6MT; T=3.63 |
38336AA410 |
from US $13.31 |
||
|
38349
|
38349
38336AA420 SPACER 2PINION366T2005-11-01 ~ 2007-03-01; 6MT; T=3.66 |
38336AA420 |
from US $13.31 |
||
|
38353
|
38353
38353AA050 GSKTDIFF CARR2005-11-01 ~ 2007-03-01; 6MT |
38353AA050 |
from US $9.25 |
||
|
38354
|
38354
38354AA002 CAP CPAIR BRTHR2005-11-01 ~ 2007-03-01; 6MT +4AT +5MT |
38354AA002 |
US $4.11 |
||
|
38370
|
38370
31454AA130 COLLAR 2PINION522L2005-11-01 ~ 2007-03-01; 6MT; L=52.2 |
31454AA130 |
from US $18.13 |
||
|
38370
|
38370
31454AA140 COLLAR 2PINION524L2005-11-01 ~ 2007-03-01; 6MT; L=52.4 |
31454AA140 |
from US $14.82 |
||
|
38370
|
38370
31454AA150 COLLAR 2PINION526L2005-11-01 ~ 2007-03-01; 6MT; L=52.6 |
31454AA150 |
from US $14.82 |
||
|
38370
|
38370
31454AA160 COLLAR 2PINION528L2005-11-01 ~ 2007-03-01; 6MT; L=52.8 |
31454AA160 |
from US $18.13 |
||
|
38370
|
38370
31454AA170 COLLAR 2PINION530L2005-11-01 ~ 2007-03-01; 6MT; L=53.0 |
31454AA170 |
from US $14.82 |
||
|
38370
|
38370
31454AA180 COLLAR 2PINION532L2005-11-01 ~ 2007-03-01; 6MT; L=53.2 |
31454AA180 |
from US $18.13 |
||
|
38371
|
38371
383705200 SPACERPINION 255T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.59 |
383705200 |
US $3.54 |
||
|
38371
|
38371
383715200 SPACERPINION 257T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.57 |
383715200 |
US $3.54 |
||
|
38371
|
38371
383725200 SPACERPINION 255T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.55 |
383725200 |
US $3.54 |
||
|
38371
|
38371
383735200 SPACERPINION 253T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.53 |
383735200 |
US $3.54 |
||
|
38371
|
38371
383745200 SPACERPINION 251T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.51 |
383745200 |
US $3.54 |
||
|
38371
|
38371
383755200 SPACERPINION 249T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.49 |
383755200 |
US $3.54 |
||
|
38371
|
38371
383765200 SPACERPINION 247T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.47 |
383765200 |
from US $3.54 |
||
|
38371
|
38371
383775200 SPACERPINION 245T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.45 |
383775200 |
US $3.54 |
||
|
38371
|
38371
383785200 SPACERPINION 243T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.43 |
383785200 |
US $3.54 |
||
|
38371
|
38371
383795200 SPACERPINION 241T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.41 |
383795200 |
from US $3.54 |
||
|
38371
|
38371
383805200 SPACERPINION 239T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.39 |
383805200 |
US $3.54 |
||
|
38371
|
38371
383815200 SPACERPINION 237T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.37 |
383815200 |
US $3.54 |
||
|
38371
|
38371
383825200 SPACERPINION 235T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.35 |
383825200 |
US $3.54 |
||
|
38371
|
38371
383835200 SPACERPINION 233T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.33 |
383835200 |
US $3.54 |
||
|
38371
|
38371
383845200 SPACERPINION 231T2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; T=2.31 |
383845200 |
US $3.54 |
||
|
38380
|
38380
383875200 LOCK NUTDRV PINION2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
383875200 |
from US $3.64 |
||
|
38385
|
38385
32285AA080 COLLARDRV PINION2005-11-01 ~ 2007-03-01; 6MT |
32285AA080 |
from US $51.39 |
||
|
38386
|
38386
38358AA000 FLG CPCOMPANION2005-11-01 ~ 2007-03-01; 5MT.255 +WOBK.5MT.253 +6MT +4AT.253 |
38358AA000 |
US $82.55 |
||
|
38410
|
38410
38410AA140 LSD ASSY2005-11-01 ~ 2007-03-01; 6MT |
38410AA140 |
US $1,077.58 |
||
|
A20851
|
A20851
800208510 BOLT8X20X142005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
800208510 |
from US $3.40 |
||
|
A20851
|
A20851
800208510 BOLT8X20X142005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
800208510 |
from US $3.40 |
||
|
A21031
|
A21031
800210310 BOLT10X30X182005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT; 10X30X18 |
800210310 |
US $2.41 |
||
|
A21114
|
A21114
800211140 GEAR BOLT2005-11-01 ~ 2007-03-01; 5MT.255 +WOBK.5MT.253 +6MT +(SOBK+WOBK).4AT.253; 11X20X12 |
800211140 |
from US $1.84 |
||
|
A91204
|
A91204
800812020 STUD12X84X242005-11-01 ~ 2007-03-01; 5MT +6MT +4AT +5AT |
800812020 |
from US $1.85 |
||
|
D92004
|
D92004
803920040 GSKT205X25X152005-11-01 ~ 2007-03-01; 6MT |
803920040 |
US $3.82 |
||
|
F32600
|
F32600
805326000 CIRCLIPINR 26X22005-11-01 ~ 2007-03-01; 6MT |
805326000 |
US $3.12 |
||
|
F32600
|
F32600
805326000 CIRCLIPINR 26X22005-11-01 ~ 2007-03-01; 6MT |
805326000 |
US $3.12 |
||
|
G22532
|
G22532
806225320 BALL BEARING2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806225320 |
from US $22.94 |
||
|
G32502
|
G32502
806325020 TAPER ROLLER BEARING2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806325020 |
from US $21.95 |
||
|
G34001
|
G34001
806340010
TAPER ROLLER BEARING
2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806340010 |
— | ||
| replacements | |||||
|
G34001
|
G34001
806441020 NDLE BRG41X46X132005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806441020 |
US $25.35 |
||
|
G34001
|
G34001
806340120 ROLLER BEARING2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806340120 |
from US $36.85 |
||
|
G34001
|
G34001
806340010
TAPER ROLLER BEARING
2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806340010 |
— | ||
| replacements | |||||
|
G34001
|
G34001
806441020 NDLE BRG41X46X132005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806441020 |
US $25.35 |
||
|
G34001
|
G34001
806340120 ROLLER BEARING2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806340120 |
from US $36.85 |
||
|
G73203
|
G73203
806732030
OIL SEAL32X52X11
2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806732030 |
— | ||
|
G73203
|
G73203
806732030
OIL SEAL32X52X11
2005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806732030 |
— | ||
|
G73527
|
G73527
806735270 OIL SEAL35X67X122005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806735270 |
from US $11.19 |
||
|
G99202
|
G99202
806992020 RING92X22005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806992020 |
from US $1.70 |
||
|
G99202
|
G99202
806992020 RING92X22005-11-01 ~ 2007-03-01; 5MT +6MT +(SOBK+WOBK).4AT |
806992020 |
from US $1.70 |
||
|
H02001
|
H02001
807020010 PLUG20X142005-11-01 ~ 2007-03-01; 6MT +(S+W).4AT; 20X14 |
807020010 |
from US $1.59 |
||
