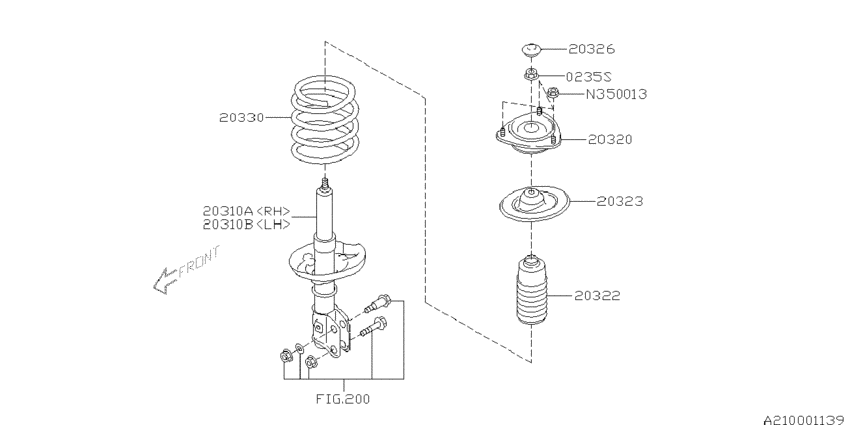

Front shock absorber ('07MY-; S.6MT; 2005-11-01~) Diagram Subaru LEGACY
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 6MT
- grade
- 25GTB
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0235S
|
0235S
023512000
SELF LOCK NUT
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023512000 |
— | ||
| replacement | |||||
|
0235S
|
0235S
902350027 SELF LOCK NUT M122005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902350027 |
from US $0.81 |
||
|
20310A
|
20310A
20310AG400 STRUT COMPL F RH2005-11-01 ~ 2007-03-01; YELLOW; S.25GTB; BILSTEIN |
20310AG400 |
US $644.28 |
||
|
20310B
|
20310B
20310AG410 STRUT COMPL F LH2005-11-01 ~ 2007-03-01; YELLOW; S.25GTB; BILSTEIN |
20310AG410 |
US $644.28 |
||
|
20320
|
20320
20320AG01A
Strut mount-front
2005-11-01 ~ 2007-03-01; S.25GTB |
20320AG01A |
— | ||
|
20322
|
20322
20322AG010 DUST COVER2005-11-01 ~ 2007-03-01; S.25GTB |
20322AG010 |
US $10.76 |
||
|
20323
|
20323
20323AG00A
Spring seat-front strut,upper
2005-11-01 ~ 2006-09-01; S +SOBK +W +WOBK |
20323AG00A |
— | ||
|
20323
|
20323
20323AG00B
Spring seat-front strut,upper
2006-09-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20323AG00B |
— | ||
|
20326
|
20326
20326AG000 DUST SEAL2005-11-01 ~ 2007-03-01; S.25GTB |
20326AG000 |
US $3.82 |
||
|
20330
|
20330
20330AG14A
Coil spring-front
2005-11-01 ~ 2007-03-01; S.25GTB |
20330AG14A |
— | ||
|
N350013
|
N350013
902350013 SELF LOCK NUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902350013 |
from US $0.63 |
||
