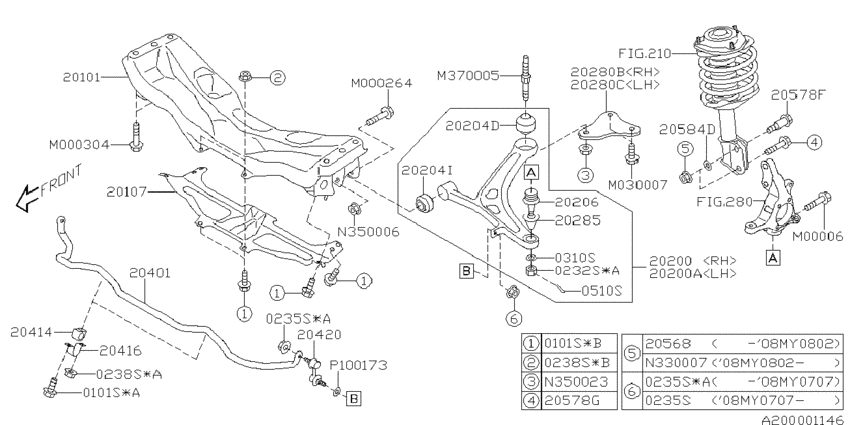

Front suspension ('07MY-; S.6MT; 2005-11-01~) Diagram Subaru LEGACY
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 6MT
- grade
- 25GTB
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0101S
|
0101S
010108200 FLANGE BOLTPLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
010108200 |
from US $0.39 |
||
|
0101S
|
0101S
010110200 FLANGE BOLTPLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
010110200 |
US $0.71 |
||
|
0101S
|
0101S
010108200 FLANGE BOLTPLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
010108200 |
from US $0.39 |
||
|
0101S
|
0101S
010110200 FLANGE BOLTPLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
010110200 |
US $0.71 |
||
|
0232S
|
0232S
023212010 CASTLE NUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023212010 |
from US $0.46 |
||
|
0232S
|
0232S
023212017 CASTLE NUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023212017 |
US $1.42 |
||
|
0235S
|
0235S
023510000 SELF LOCK NUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023510000 |
US $1.27 |
||
| replacement | |||||
|
0235S
|
0235S
901250075 BOLT WASHER M82005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901250075 |
US $0.57 |
||
|
0235S
|
0235S
023510007
SELF LOCK NUT
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023510007 |
— | ||
| replacement | |||||
|
0235S
|
0235S
902350001 SELF LOCK NUT102005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902350001 |
from US $0.35 |
||
|
0235S
|
0235S
023510000 SELF LOCK NUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023510000 |
US $1.27 |
||
| replacement | |||||
|
0235S
|
0235S
901250075 BOLT WASHER M82005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901250075 |
US $0.57 |
||
|
0235S
|
0235S
023510007
SELF LOCK NUT
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023510007 |
— | ||
| replacement | |||||
|
0235S
|
0235S
902350001 SELF LOCK NUT102005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902350001 |
from US $0.35 |
||
|
0235S
|
0235S
023510000 SELF LOCK NUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023510000 |
US $1.27 |
||
| replacement | |||||
|
0235S
|
0235S
901250075 BOLT WASHER M82005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901250075 |
US $0.57 |
||
|
0235S
|
0235S
023510007
SELF LOCK NUT
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023510007 |
— | ||
| replacement | |||||
|
0235S
|
0235S
902350001 SELF LOCK NUT102005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902350001 |
from US $0.35 |
||
|
0238S
|
0238S
023808000 FLANGE NUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023808000 |
US $0.42 |
||
|
0238S
|
0238S
023810000
FLANGE NUT
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023810000 |
— | ||
| replacement | |||||
|
0238S
|
0238S
902380007 NUT FLG M102005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902380007 |
US $0.57 |
||
|
0238S
|
0238S
023808000 FLANGE NUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023808000 |
US $0.42 |
||
|
0238S
|
0238S
023810000
FLANGE NUT
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
023810000 |
— | ||
| replacement | |||||
|
0238S
|
0238S
902380007 NUT FLG M102005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902380007 |
US $0.57 |
||
|
0310S
|
0310S
031012007 WASHER2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
031012007 |
US $0.42 |
||
|
0510S
|
0510S
051030250
COTTER PIN
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
051030250 |
— | ||
| replacement | |||||
|
0510S
|
0510S
51030300
COTTER PIN
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
51030300 |
— | ||
|
20101
|
20101
20101AG01A
Cross member complete-front suspension
2005-11-01 ~ 2007-03-01; S.GT# +W.GT# +WOBK.GT# |
20101AG01A |
— | ||
|
20107
|
20107
20107AG00A
Support arm,front
2005-11-01 ~ 2007-03-01; S.GT# +W.GT# +WOBK.GT# |
20107AG00A |
— | ||
|
20200
|
20200
20202AG161
Transverse link assembly-right
2005-11-01 ~ 2007-03-01; S.25GTB |
20202AG161 |
— | ||
|
20200A
|
20200A
20202AG171
Transverse link assembly-left
2005-11-01 ~ 2007-03-01; S.25GTB |
20202AG171 |
— | ||
|
20204D
|
20204D
20204AG011 BUSHING-TRANSVERSE LINK,REAR2005-11-01 ~ 2007-03-01; S.25GTB |
20204AG011 |
from US $18.83 |
||
|
20204I
|
20204I
20204AG040
BUSHING-TRANSVERSE LINK,FRONT
2005-11-01 ~ 2007-03-01; S.25GTB |
20204AG040 |
— | ||
| replacements | |||||
|
20204I
|
20204I
20204AG030 BUSHING-TRANSVERSE LINK,FRONT2005-11-01 ~ 2007-03-01; S.25GTB |
20204AG030 |
from US $12.08 |
||
|
20204I
|
20204I
20204AJ000 BUSHING-TRANSVERSE LINK,FRONT2005-11-01 ~ 2007-03-01; S.25GTB |
20204AJ000 |
from US $15.28 |
||
|
20206
|
20206
21067GA050
BALL JOINT
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
21067GA050 |
— | ||
| replacement | |||||
|
20206
|
20206
20206AJ000 BALL JOINT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20206AJ000 |
from US $21.50 |
||
|
20280B
|
20280B
20216AG00B
Plate-arm front rear,right
2005-11-01 ~ 2006-05-01; W +S |
20216AG00B |
— | ||
|
20280B
|
20280B
20216AG08B PLATE ARM F R NMLRH2006-05-01 ~ 2007-03-01; W +S |
20216AG08B |
US $30.04 |
||
|
20280C
|
20280C
20216AG01B
Plate-arm front rear,left
2005-11-01 ~ 2006-05-01; W +S |
20216AG01B |
— | ||
|
20280C
|
20280C
20216AG09B
Plate-arm front rear,left
2006-05-01 ~ 2007-03-01; W +S |
20216AG09B |
— | ||
|
20285
|
20285
20216FA000 BOSS TV LINK2005-11-01 ~ 2007-03-01; S.25GTB |
20216FA000 |
from US $7.05 |
||
|
20401
|
20401
20401AG04A
Stabilizer-front
2005-11-01 ~ 2007-03-01; S.GT# +W.GT# +WOBK.GT# |
20401AG04A |
— | ||
|
20414
|
20414
20464AG08A
Bushing-stabilizer
2005-11-01 ~ 2007-03-01; S.GT# +SOBK +W.GT# +WOBK; FOR STABILIZER(D=21) |
20464AG08A |
— | ||
|
20416
|
20416
20416AG00A
Clamp-stabilizer bushing
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20416AG00A |
— | ||
|
20420
|
20420
20420AG00A
Link assembly-front stabilizer
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20420AG00A |
— | ||
|
20568
|
20568
20550AA010 SELF LOCK NUT M142005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20550AA010 |
from US $1.94 |
||
|
20578F
|
20578F
20540AA090 ADJUSTING BOLT M142005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20540AA090 |
from US $3.46 |
||
|
20578G
|
20578G
20540AA100 FLANG BOLT M142005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20540AA100 |
from US $1.79 |
||
|
20584D
|
20584D
20560AA040 WASHER ADJUST 142005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
20560AA040 |
from US $0.46 |
||
|
M00006
|
M00006
901000060 FLANGE BOLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901000060 |
from US $0.74 |
||
|
M000264
|
M000264
901000264 BOLT FLG 12X8552005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901000264 |
US $13.03 |
||
|
M000304
|
M000304
901000304 BOLT FLG M12X1022005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901000304 |
from US $3.40 |
||
|
M030007
|
M030007
901030007 BOLT FLG M14X302005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901030007 |
from US $2.39 |
||
|
M370005
|
M370005
901370005
BOLT STUD NML
2005-11-01 ~ 2007-03-01; W +S |
901370005 |
— | ||
| replacement | |||||
|
M370005
|
M370005
901370009 BOLT STUD M142005-11-01 ~ 2007-03-01; W +S |
901370009 |
US $7.93 |
||
|
N350006
|
N350006
902350006 SELF ROCK NUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902350006 |
from US $0.56 |
||
|
N350023
|
N350023
902350023 SELF LOCK NUT M142005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
902350023 |
from US $1.22 |
||
|
P100173
|
P100173
903100173 WASHER D102005-11-01 ~ 2007-03-01; S.25GTB |
903100173 |
US $1.13 |
||
