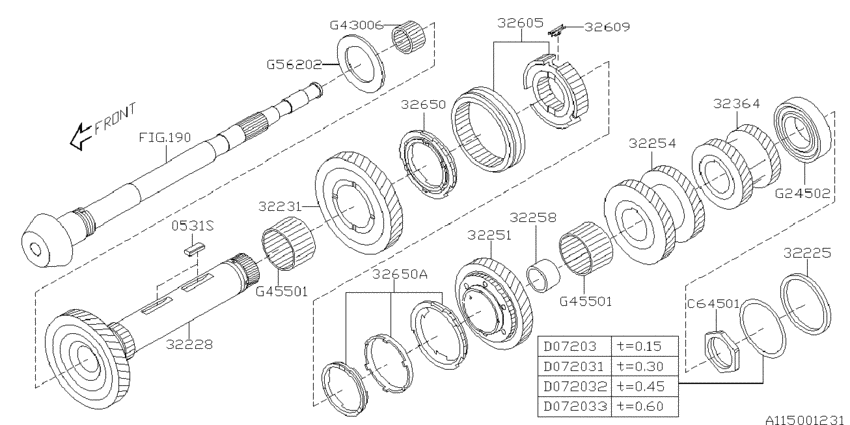

Mt, drive pinion shaft (6MT; 2005-11-01~) Diagram Subaru LEGACY
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 6MT
- grade
- 25GTB
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0531S
|
0531S
053107250 KEY2005-11-01 ~ 2007-03-01; 5MT +6MT +4AT +5AT |
053107250 |
from US $0.93 |
||
|
32225
|
32225
32225AA000 COLLARDRIVEN SFT2005-11-01 ~ 2007-03-01; 6MT |
32225AA000 |
from US $3.79 |
||
|
32228
|
32228
32228AA020 SHAFT COMPLDRVN2005-11-01 ~ 2007-03-01; 6MT |
32228AA020 |
US $390.82 |
||
|
32231
|
32231
32231AB280 ｷﾞﾔ,1ST ﾄﾞﾘﾌﾞﾝ2005-11-01 ~ 2007-03-01; 6MT |
32231AB280 |
US $144.43 |
||
|
32251
|
32251
32251AA910
ｷﾞﾔ,2ND ﾄﾞﾘﾌﾞﾝ
2005-11-01 ~ 2007-03-01; 6MT |
32251AA910 |
— | ||
|
32254
|
32254
32254AA630 ｷﾞﾔ,3RD ｱﾝﾄﾞ 4TH ﾄﾞﾘﾌﾞﾝ2005-11-01 ~ 2007-03-01; 6MT |
32254AA630 |
US $342.67 |
||
|
32258
|
32258
32258AA010 BUSHDRVN GR2ND2005-11-01 ~ 2007-03-01; 6MT |
32258AA010 |
from US $39.15 |
||
|
32364
|
32364
32364AA100
Gear-5th and 6th driven
2005-11-01 ~ 2007-03-01; 6MT |
32364AA100 |
— | ||
|
32605
|
32605
32605AA210
SLEEVE HUB ASSY
2005-11-01 ~ 2007-03-01; 6MT |
32605AA210 |
— | ||
| replacement | |||||
|
32605
|
32605
32605AA330 SLEEVE HUB ASSY2005-11-01 ~ 2007-03-01; 6MT |
32605AA330 |
from US $90.63 |
||
|
32609
|
32609
32609AA061
ｲﾝｻｰﾄ,ｼﾌﾁﾝｸﾞ 1ST ｱﾝﾄﾞ 2ND
2005-11-01 ~ 2007-03-01; 6MT |
32609AA061 |
— | ||
| replacement | |||||
|
32609
|
32609
32609AA062 INSERT-SHIFTING,1ST & 2ND2005-11-01 ~ 2007-03-01; 6MT |
32609AA062 |
from US $1.35 |
||
|
32650
|
32650
32650AA140 SYNCRO SET2005-11-01 ~ 2007-03-01; 6MT |
32650AA140 |
US $127.86 |
||
|
32650A
|
32650A
32650AA150 SYNCRO SET2005-11-01 ~ 2007-03-01; 6MT |
32650AA150 |
US $139.76 |
||
|
C64501
|
C64501
802645010 LK NUT45X1052005-11-01 ~ 2007-03-01; 6MT |
802645010 |
US $20.11 |
||
|
D07203
|
D07203
803072030 WASH72X842005-11-01 ~ 2007-03-01; 6MT; T=0.15 |
803072030 |
from US $4.22 |
||
|
D072031
|
D072031
803072031 WASH72X842005-11-01 ~ 2007-03-01; 6MT; T=0.30 |
803072031 |
from US $4.48 |
||
|
D072032
|
D072032
803072032 WASH72X842005-11-01 ~ 2007-03-01; 6MT; T=0.45 |
803072032 |
from US $4.42 |
||
|
D072033
|
D072033
803072033 WASH72X842005-11-01 ~ 2007-03-01; 6MT; T=0.60 |
803072033 |
from US $4.48 |
||
|
G24502
|
G24502
806245020 BALL BEARING (45X85X19)2005-11-01 ~ 2007-03-01; 6MT |
806245020 |
from US $24.79 |
||
|
G43006
|
G43006
806430060 NDLE BRG30X37X232005-11-01 ~ 2007-03-01; 6MT +5MT |
806430060 |
from US $11.16 |
||
|
G45501
|
G45501
806455010 NDLE BRG55X60X302005-11-01 ~ 2007-03-01; 6MT |
806455010 |
from US $9.31 |
||
|
G45501
|
G45501
806455010 NDLE BRG55X60X302005-11-01 ~ 2007-03-01; 6MT |
806455010 |
from US $9.31 |
||
|
G56202
|
G56202
806562020 THR BRG62X82X362005-11-01 ~ 2007-03-01; 6MT |
806562020 |
from US $19.17 |
||
