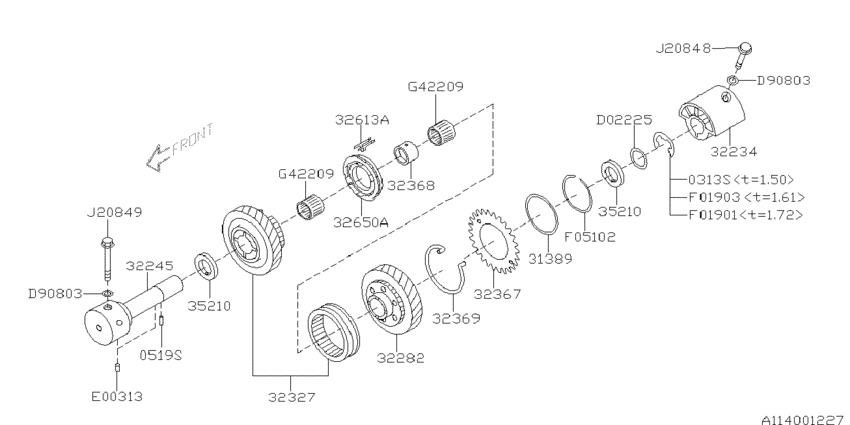

Mt, main shaft (REVERSE GEAR; 6MT; 2005-11-01~) Diagram Subaru LEGACY
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 6MT
- grade
- 25GTB
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0313S
|
0313S
031319000 CLIP2005-11-01 ~ 2007-03-01; 5MT +6MT +4AT +5AT; T=1.50 |
031319000 |
from US $0.46 |
||
|
0519S
|
0519S
051903080 SPRING PIN2005-11-01 ~ 2007-03-01; 5MT +6MT +4AT +5AT |
051903080 |
US $0.28 |
||
|
31389
|
31389
31389AA010 PLATEFRICTION2005-11-01 ~ 2007-03-01; 6MT |
31389AA010 |
from US $1.48 |
||
|
32234
|
32234
32234AA000
HOLDERREV IDL
2005-11-01 ~ 2006-12-01; 6MT |
32234AA000 |
— | ||
|
32234
|
32234
32234AA010 HOLDERREV IDLER2006-12-01 ~ 2007-03-01; 6MT |
32234AA010 |
from US $20.70 |
||
|
32245
|
32245
32245AA021
BASEIDLER GRREV
2005-11-01 ~ 2007-03-01; 6MT |
32245AA021 |
— | ||
|
32282
|
32282
32282AA150 GEARREV IDLER2005-11-01 ~ 2007-03-01; 6MT |
32282AA150 |
US $65.14 |
||
|
32327
|
32327
32327AA001 SLEEVE GEAR AY2005-11-01 ~ 2007-03-01; 6MT |
32327AA001 |
from US $233.64 |
||
|
32367
|
32367
32367AA001 SUBGEARREV IDL2005-11-01 ~ 2007-03-01; 6MT |
32367AA001 |
from US $22.24 |
||
|
32368
|
32368
32368AA002 COLRIDL GEARREV2005-11-01 ~ 2007-03-01; 6MT |
32368AA002 |
from US $6.09 |
||
|
32369
|
32369
32369AA000 SPRREV IDLER2005-11-01 ~ 2007-03-01; 6MT |
32369AA000 |
US $2.27 |
||
|
32613A
|
32613A
32613AA060 INSERTSHIFTING2005-11-01 ~ 2007-03-01; 6MT |
32613AA060 |
from US $0.76 |
||
|
32650A
|
32650A
32650AA170 SYNCRO SET2005-11-01 ~ 2007-03-01; 6MT |
32650AA170 |
from US $63.46 |
||
|
35210
|
35210
35210AA000 WASHCNTRHILO2005-11-01 ~ 2007-03-01; 6MT |
35210AA000 |
US $6.94 |
||
|
35210
|
35210
35210AA000 WASHCNTRHILO2005-11-01 ~ 2007-03-01; 6MT |
35210AA000 |
US $6.94 |
||
|
D02225
|
D02225
803022250 WASH221X36X12005-11-01 ~ 2007-03-01; 6MT |
803022250 |
from US $2.46 |
||
|
D90803
|
D90803
803908030
GSKT83X14X14
2005-11-01 ~ 2007-03-01; 6MT |
803908030 |
— | ||
| replacement | |||||
|
D90803
|
D90803
803908050 GASKET 83X14X102005-11-01 ~ 2007-03-01; 6MT |
803908050 |
from US $1.98 |
||
|
D90803
|
D90803
803908030
GSKT83X14X14
2005-11-01 ~ 2007-03-01; 6MT |
803908030 |
— | ||
| replacement | |||||
|
D90803
|
D90803
803908050 GASKET 83X14X102005-11-01 ~ 2007-03-01; 6MT |
803908050 |
from US $1.98 |
||
|
E00313
|
E00313
804003130 STR PIN3X62005-11-01 ~ 2007-03-01; 6MT |
804003130 |
US $0.28 |
||
|
F01901
|
F01901
805019010 SNAPRINGOTR 192005-11-01 ~ 2007-03-01; 6MT; T=1.72 |
805019010 |
US $1.84 |
||
|
F01903
|
F01903
805019030 SNAPRINGOTR 192005-11-01 ~ 2007-03-01; 6MT; T=1.61 |
805019030 |
US $1.84 |
||
|
F05102
|
F05102
805051020 SNAPRINGOTR 512005-11-01 ~ 2007-03-01; 6MT |
805051020 |
from US $1.70 |
||
|
G42209
|
G42209
806422090 NDLE BRG22X26X232005-11-01 ~ 2007-03-01; 6MT |
806422090 |
from US $4.46 |
||
|
G42209
|
G42209
806422090 NDLE BRG22X26X232005-11-01 ~ 2007-03-01; 6MT |
806422090 |
from US $4.46 |
||
|
J20848
|
J20848
808208480 BOLT8X40X232005-11-01 ~ 2007-03-01; 6MT |
808208480 |
US $1.70 |
||
|
J20849
|
J20849
808208490 BOLT8X52X182005-11-01 ~ 2007-03-01; 6MT |
808208490 |
from US $1.13 |
||
