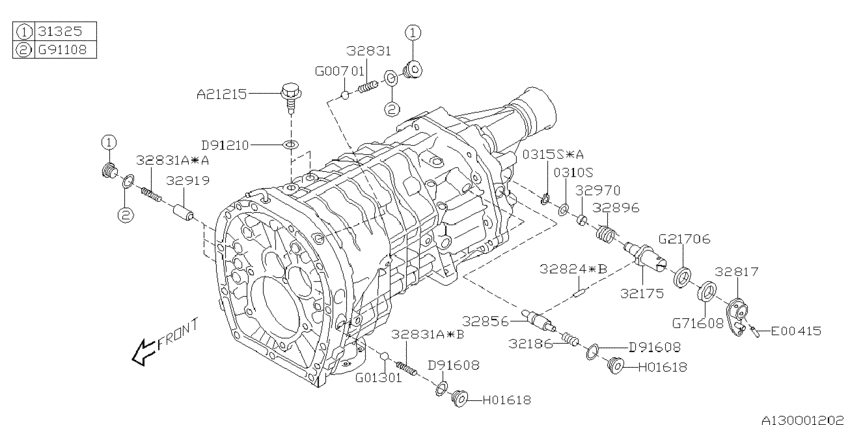

Mt, shifter fork & shifter rail (REVERSE CHECKING; 6MT; 2005-11-01~) Diagram Subaru LEGACY
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 6MT
- grade
- 25GTB
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0310S
|
0310S
031010000 WASHER2005-11-01 ~ 2007-03-01; 5MT +6MT +4AT +5AT |
031010000 |
US $0.14 |
||
|
0315S
|
0315S
031510000 SNAP RINGOUT2005-11-01 ~ 2007-03-01; 5MT +6MT +4AT +5AT |
031510000 |
US $0.28 |
||
|
0315S
|
0315S
031514000 SNAP RINGOUT2005-11-01 ~ 2007-03-01; 5MT +6MT +4AT +5AT |
031514000 |
US $0.42 |
||
|
0315S
|
0315S
031516000 SNAP RINGOUT2005-11-01 ~ 2007-03-01; 5MT +6MT +4AT +5AT |
031516000 |
US $0.42 |
||
|
31325
|
31325
31325KA151 BOLT ASSYSEAL2005-11-01 ~ 2007-03-01; 6MT |
31325KA151 |
US $3.54 |
||
|
32175
|
32175
32175AA002 SFTCHECKINGREV2005-11-01 ~ 2007-03-01; 6MT |
32175AA002 |
from US $19.97 |
||
|
32186
|
32186
32186AA010 SPRCHECKINGREV2005-11-01 ~ 2007-03-01; 6MT |
32186AA010 |
from US $1.15 |
||
|
32817
|
32817
32817AA000 LEVER CPCHKREV2005-11-01 ~ 2007-03-01; 6MT |
32817AA000 |
from US $14.13 |
||
|
32824
|
32824
32824AA020 PLUNGERINTERLOCK2005-11-01 ~ 2007-03-01; 6MT +5MT |
32824AA020 |
from US $0.63 |
||
|
32831
|
32831
32831AA050 SPRCHECKING BALL2005-11-01 ~ 2007-03-01; 6MT +5MT |
32831AA050 |
US $0.85 |
||
|
32831A
|
32831A
32831AA080 SPRCHECKING BALL2005-11-01 ~ 2007-03-01; 6MT |
32831AA080 |
US $1.56 |
||
|
32831A
|
32831A
32831AA090 SPRCHECKING BALL2005-11-01 ~ 2007-03-01; 6MT |
32831AA090 |
US $1.56 |
||
|
32831A
|
32831A
32831AA080 SPRCHECKING BALL2005-11-01 ~ 2007-03-01; 6MT |
32831AA080 |
US $1.56 |
||
|
32831A
|
32831A
32831AA090 SPRCHECKING BALL2005-11-01 ~ 2007-03-01; 6MT |
32831AA090 |
US $1.56 |
||
|
32856
|
32856
32856AA030 PLUNGERCHKNGREV2005-11-01 ~ 2007-03-01; 6MT |
32856AA030 |
US $7.79 |
||
|
32896
|
32896
32896AA010 SPRRTNCAM REV2005-11-01 ~ 2007-03-01; 6MT |
32896AA010 |
from US $1.56 |
||
|
32919
|
32919
32919AA000 Plunger-Shift Accent2005-11-01 ~ 2007-03-01; 6MT |
32919AA000 |
US $9.91 |
||
|
32970
|
32970
32970AA001 BUSHCHECKINGREV2005-11-01 ~ 2007-03-01; 6MT |
32970AA001 |
US $11.47 |
||
|
A21215
|
A21215
800212150 BOLT12X242005-11-01 ~ 2007-03-01; 6MT |
800212150 |
US $1.84 |
||
|
D91210
|
D91210
803912100 GSKT123X18X142005-11-01 ~ 2007-03-01; 6MT |
803912100 |
US $3.96 |
||
|
D91608
|
D91608
803916080 GSKT163X22X102005-11-01 ~ 2007-03-01; 6MT |
803916080 |
US $1.98 |
||
|
D91608
|
D91608
803916080 GSKT163X22X102005-11-01 ~ 2007-03-01; 6MT |
803916080 |
US $1.98 |
||
|
E00415
|
E00415
804004150 STRAIGHT PIN4X222005-11-01 ~ 2007-03-01; 6MT; 4X22 |
804004150 |
US $1.13 |
||
|
G00701
|
G00701
806007010 BALL79372005-11-01 ~ 2007-03-01; 6MT +5MT |
806007010 |
from US $0.14 |
||
|
G01301
|
G01301
806013010
BALL1349
2005-11-01 ~ 2007-03-01; 6MT |
806013010 |
— | ||
|
G21706
|
G21706
806217060 BALL BRG17X27X52005-11-01 ~ 2007-03-01; 6MT |
806217060 |
from US $6.94 |
||
|
G71608
|
G71608
806716080 OILSEAL16X27X52005-11-01 ~ 2007-03-01; 6MT |
806716080 |
from US $3.90 |
||
|
G91108
|
G91108
806911080 RING115X212005-11-01 ~ 2007-03-01; 6MT |
806911080 |
from US $1.15 |
||
|
H01618
|
H01618
807016180 PLUG16X852005-11-01 ~ 2007-03-01; 6MT |
807016180 |
from US $4.33 |
||
|
H01618
|
H01618
807016180 PLUG16X852005-11-01 ~ 2007-03-01; 6MT |
807016180 |
from US $4.33 |
