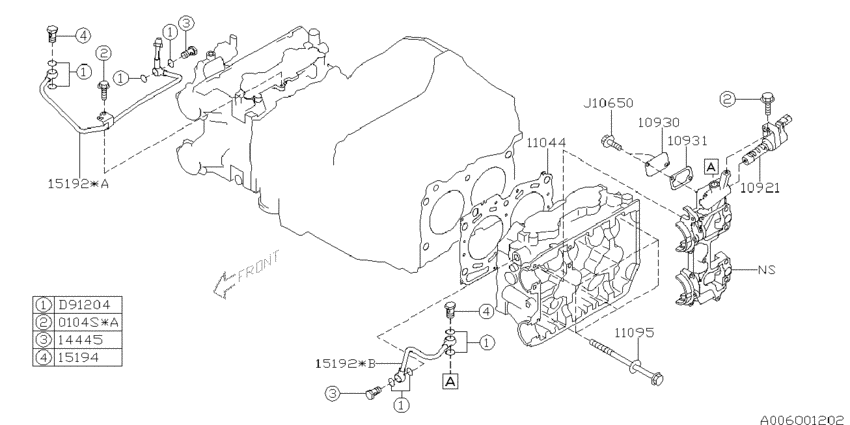

Cylinder head (SYSTEM '07MY-; 255; 2006-04-01~) Diagram Subaru LEGACY
- Year
- 2006 - 2011
- Sales region
- Europe
- Engine
- 255
- drive
- 4W
- transmission
- 6MT
- grade
- 25GTB
- body
- S
- Suspension
- N/S
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0104S
|
0104S
010406120 FLANGE BOLT2006-04-01 ~ 2007-06-01; 204 +255 +25# +30D |
010406120 |
from US $0.33 |
||
|
10921
|
10921
10921AA080 VALVE AYOIL CONT2006-04-01 ~ 2007-06-01; 204 +255; ND |
10921AA080 |
from US $82.62 |
||
|
10930
|
10930
10930AA001 COVER CPOIL RTN2006-04-01 ~ 2007-06-01; 204 +255 |
10930AA001 |
from US $1.35 |
||
|
10931
|
10931
10931AA010 GASKET OIL RETURN COVER2006-04-01 ~ 2007-06-01; 204 +255 |
10931AA010 |
from US $1 |
||
|
11044
|
11044
11044AA670 GSKTCYL HEAD2006-04-01 ~ 2007-06-01; 255 |
11044AA670 |
from US $36.06 |
||
|
11095
|
11095
11095AA041
BOLT AYCYL HEAD
2006-04-01 ~ 2006-10-01; 204 +255 |
11095AA041 |
— | ||
| replacement | |||||
|
11095
|
11095
11095AA042 BOLT AYCYL HEAD2006-04-01 ~ 2006-10-01; 204 +255 |
11095AA042 |
from US $4.22 |
||
|
11095
|
11095
11095AA042 BOLT AYCYL HEAD2006-10-01 ~ 2007-06-01; 204 +255 |
11095AA042 |
from US $4.22 |
||
|
14445
|
14445
14445AA090 UNION SCRFLTR AY2006-04-01 ~ 2007-06-01; 204 +255 +30D |
14445AA090 |
from US $9.77 |
||
|
15192
|
15192
15192AA510 PIPE COMPLOIL2006-04-01 ~ 2006-08-01; 255 |
15192AA510 |
US $43.90 |
||
|
15192
|
15192
15192AA511 PIPE COMPLOIL2006-09-01 ~ 2007-06-01; 255 |
15192AA511 |
US $43.90 |
||
|
15192
|
15192
15192AA550 PIPE COMPLOIL2006-04-01 ~ 2006-08-01; 204 +255 |
15192AA550 |
US $43.90 |
||
|
15192
|
15192
15192AA551 PIPE COMPLOIL2006-09-01 ~ 2007-06-01; 204 +255 |
15192AA551 |
from US $30.45 |
||
|
15192
|
15192
15192AA510 PIPE COMPLOIL2006-04-01 ~ 2006-08-01; 255 |
15192AA510 |
US $43.90 |
||
|
15192
|
15192
15192AA511 PIPE COMPLOIL2006-09-01 ~ 2007-06-01; 255 |
15192AA511 |
US $43.90 |
||
|
15192
|
15192
15192AA550 PIPE COMPLOIL2006-04-01 ~ 2006-08-01; 204 +255 |
15192AA550 |
US $43.90 |
||
|
15192
|
15192
15192AA551 PIPE COMPLOIL2006-09-01 ~ 2007-06-01; 204 +255 |
15192AA551 |
from US $30.45 |
||
|
15194
|
15194
15194AA270 SCRUNION2006-04-01 ~ 2007-06-01; 204 +255 +30D; M12 |
15194AA270 |
from US $4.14 |
||
|
D91204
|
D91204
803912040 GASKET (12X16X1)2006-04-01 ~ 2007-06-01; 204 +255 +30D; 12X6X1 |
803912040 |
from US $0.28 |
||
|
J10650
|
J10650
808106500 ﾎﾞﾙﾄ2006-04-01 ~ 2007-06-01; 204 +255 |
808106500 |
US $0.57 |
||
