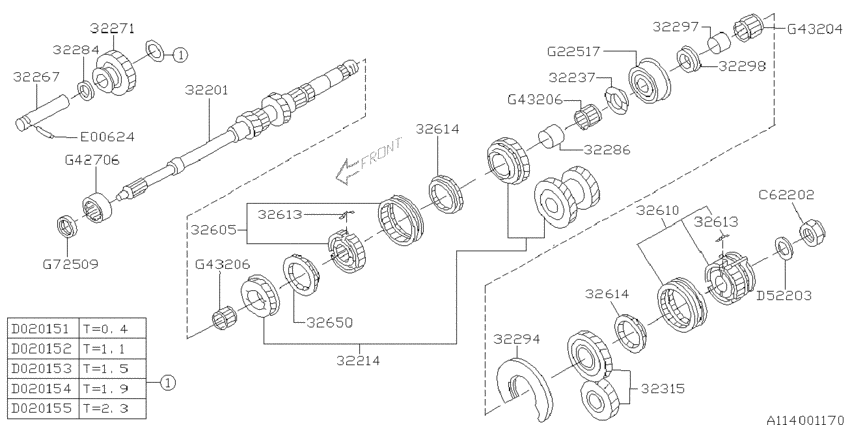

Mt, main shaft (S.5MT.(202+204+25#); 2003-05-01~2005-11-01) Diagram Subaru LEGACY
- Year
- 2003 - 2004
- Sales region
- Europe
- Engine
- 25#
- drive
- 4W
- transmission
- 5MT
- grade
- 25I
- body
- S
- Suspension
- N/S
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32201
|
32201
32201AB140
Shaft-transmission main
2006-04-01 ~ 2006-10-01; S.25I.5MT.RH |
32201AB140 |
— | ||
|
32201
|
32201
32201AB250 SFTTRANS MAIN2006-10-01 ~ 2007-06-01; S.25I.5MT.RH |
32201AB250 |
US $249.22 |
||
|
32214
|
32214
32214AA740 ｷﾞﾔ ｾﾂﾄ,3RD ｱﾝﾄﾞ 4TH2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32214AA740 |
US $295.94 |
||
|
32237
|
32237
32237AA030 ﾜﾂｼﾔ,ｷﾞﾔ ｽﾗｽﾄ 4TH2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32237AA030 |
US $8.50 |
||
|
32267
|
32267
32267AA000 SFTIDLER GRREV2007-05-01 ~ 2007-06-01; 5MT |
32267AA000 |
US $15.15 |
||
|
32267
|
32267
32281AA010 SFTIDLERREV2006-04-01 ~ 2007-04-01; 5MT |
32281AA010 |
US $15.15 |
||
|
32271
|
32271
32271AA130 GEAR CPREV IDLER2006-04-01 ~ 2007-06-01; 5MT |
32271AA130 |
US $48.85 |
||
|
32284
|
32284
32284AA010 WASHIDLERREV2006-04-01 ~ 2007-06-01; 5MT |
32284AA010 |
from US $4.46 |
||
|
32286
|
32286
32286AA001 RACENDLE BRG4TH2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32286AA001 |
US $8.50 |
||
|
32294
|
32294
32294AA041 PLATEMAIN SFT2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH; T=5.50 |
32294AA041 |
from US $15.02 |
||
|
32294
|
32294
32294AA051 PLATEMAIN SFT2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH; T=5.63 |
32294AA051 |
US $21.10 |
||
|
32297
|
32297
32297AA001
ﾚｰｽ,ﾆｰﾄﾞﾙ ﾍﾞｱﾘﾝｸﾞ 5TH
2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32297AA001 |
— | ||
| replacement | |||||
|
32297
|
32297
32292AA080 BRG SET NDLE 5TH2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32292AA080 |
from US $10.40 |
||
|
32298
|
32298
32298AA000 WASHGEAR THR5TH2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32298AA000 |
US $11.75 |
||
|
32315
|
32315
32315AA410 GEAR SET5TH2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32315AA410 |
US $218.06 |
||
|
32605
|
32605
32605AA180 SLEEVE HUB ASSY2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32605AA180 |
US $92.61 |
||
|
32613
|
32613
32613AA041 INSERTSHIFTING2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32613AA041 |
US $1.27 |
||
|
32613
|
32613
32613AA041 INSERTSHIFTING2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32613AA041 |
US $1.27 |
||
|
32614
|
32614
32614AA131 RING BAULK2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32614AA131 |
US $35.26 |
||
|
32614
|
32614
32614AA150
RINGBAULK
2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32614AA150 |
— | ||
| replacement | |||||
|
32614
|
32614
32614AA151 RINGBAULK2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32614AA151 |
from US $20.52 |
||
|
32614
|
32614
32614AA131 RING BAULK2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32614AA131 |
US $35.26 |
||
|
32614
|
32614
32614AA150
RINGBAULK
2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32614AA150 |
— | ||
| replacement | |||||
|
32614
|
32614
32614AA151 RINGBAULK2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32614AA151 |
from US $20.52 |
||
|
32650
|
32650
32650AA051 Synchronizer Set2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
32650AA051 |
from US $86.30 |
||
|
C62202
|
C62202
802622020 LOCK NUT22X132006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
802622020 |
from US $5.98 |
||
|
D020151
|
D020151
803020151 WASH205X26XT2006-04-01 ~ 2007-06-01; 5MT; T=0.40 |
803020151 |
US $0.99 |
||
|
D020152
|
D020152
803020152 WASH205X26XT2006-04-01 ~ 2007-06-01; 5MT; T=1.10 |
803020152 |
US $0.99 |
||
|
D020153
|
D020153
803020153 WASH205X26XT2006-04-01 ~ 2007-06-01; 5MT; T=1.50 |
803020153 |
US $0.99 |
||
|
D020154
|
D020154
803020154 WASH205X26XT2006-04-01 ~ 2007-06-01; 5MT; T=1.90 |
803020154 |
US $0.99 |
||
|
D020155
|
D020155
803020155 WASH205X26XT2006-04-01 ~ 2007-06-01; 5MT; T=2.30 |
803020155 |
US $0.99 |
||
|
D52203
|
D52203
803522030 LK WASH22X38X22006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH; 22X38X2 |
803522030 |
US $5.10 |
||
|
E00624
|
E00624
804006240 STR PIN6X4112006-04-01 ~ 2007-06-01; 5MT |
804006240 |
US $0.85 |
||
|
G22517
|
G22517
806225170 RADIAL BALL BEARING2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
806225170 |
from US $30.58 |
||
|
G42706
|
G42706
806427060 NDLE BRG27X46X212006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
806427060 |
from US $19.91 |
||
|
G43204
|
G43204
806432040
ﾆｰﾄﾞﾙ ﾍﾞｱﾘﾝｸﾞ
2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
806432040 |
— | ||
| replacement | |||||
|
G43204
|
G43204
806432060 NEEDLE ROLL BEARING2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
806432060 |
from US $8.33 |
||
|
G43206
|
G43206
806432060 NEEDLE ROLL BEARING2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
806432060 |
from US $8.33 |
||
|
G43206
|
G43206
806432060 NEEDLE ROLL BEARING2006-04-01 ~ 2007-06-01; (S+W).5MT.25#.RH |
806432060 |
from US $8.33 |
||
|
G72509
|
G72509
806725090 OIL SEAL (25x44x10)2006-04-01 ~ 2007-06-01; S.25I.5MT.RH |
806725090 |
from US $3.05 |
||
