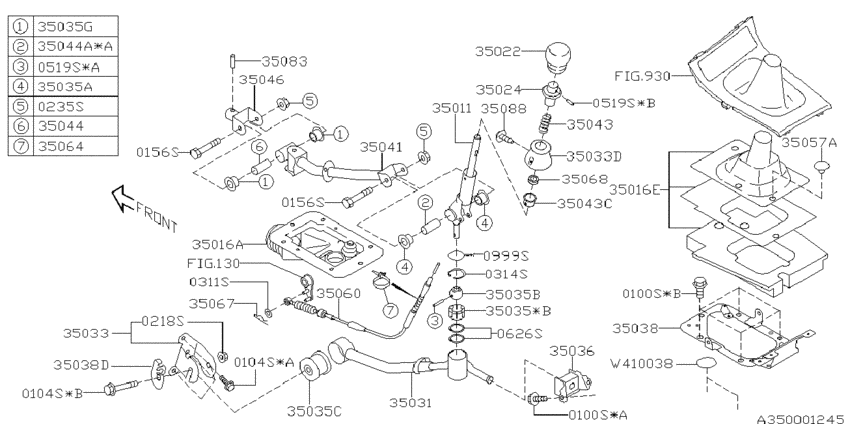

Manual gear shift system (SHIFT LEVER '07MY-; 6MT; 2005-11-01~) Diagram Subaru LEGACY
- Year
- 2005 - 2011
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 6MT
- grade
- 25GTB
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0100S
|
0100S
010008160 FLANGE BOLT-PILOT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
010008160 |
from US $0.20 |
||
|
0100S
|
0100S
010008200 FLANGE BOLTPLT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
010008200 |
US $1.56 |
||
|
0100S
|
0100S
010008160 FLANGE BOLT-PILOT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
010008160 |
from US $0.20 |
||
|
0100S
|
0100S
010008200 FLANGE BOLTPLT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
010008200 |
US $1.56 |
||
|
0104S
|
0104S
010408200 Bolt2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
010408200 |
US $0.57 |
||
|
0104S
|
0104S
010410600 FLANGE BOLT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
010410600 |
US $1.27 |
||
|
0104S
|
0104S
010408200 Bolt2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
010408200 |
US $0.57 |
||
|
0104S
|
0104S
010410600 FLANGE BOLT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
010410600 |
US $1.27 |
||
|
0156S
|
0156S
015608600 BOLT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
015608600 |
US $0.85 |
||
|
0156S
|
0156S
015608600 BOLT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
015608600 |
US $0.85 |
||
|
0218S
|
0218S
021810000 NUT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
021810000 |
US $0.28 |
||
|
0235S
|
0235S
023508000 SELF LOCK NUT2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
023508000 |
US $1.13 |
||
|
0311S
|
0311S
031106000 WASHER2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
031106000 |
US $0.28 |
||
|
0314S
|
0314S
031432000 SNAP RINGIN2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
031432000 |
from US $0.35 |
||
|
0519S
|
0519S
051903180 SPRING PIN2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
051903180 |
US $0.14 |
||
|
0519S
|
0519S
051904220 SPRING PIN2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
051904220 |
from US $0.28 |
||
|
0519S
|
0519S
051903180 SPRING PIN2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
051903180 |
US $0.14 |
||
|
0519S
|
0519S
051904220 SPRING PIN2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
051904220 |
from US $0.28 |
||
|
0626S
|
0626S
062620280 RING2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
062620280 |
US $0.57 |
||
|
0999S
|
0999S
099910190 LOCK WIRE2006-10-01 ~ 2008-04-01; 5MT +6MT +4AT +5AT |
099910190 |
US $0.28 |
||
|
35011
|
35011
35011AG050
Lever complete-gear shift
2006-10-01 ~ 2008-04-01; 6MT |
35011AG050 |
— | ||
|
35011
|
35011
35011AG051 LEVER COMPL LHD2008-04-01 ~ 2008-04-01; 6MT |
35011AG051 |
US $94.87 |
||
|
35016A
|
35016A
35016AG040 BOOT GR SHIFT2006-10-01 ~ 2008-01-01; 6MT |
35016AG040 |
US $24.50 |
||
|
35016A
|
35016A
35016FG000 BOOT2008-01-01 ~ 2008-04-01; 6MT |
35016FG000 |
US $37.52 |
||
|
35016E
|
35016E
35016AG030 BOOTINSULATOR2006-10-01 ~ 2008-04-01; 6MT |
35016AG030 |
from US $26.97 |
||
|
35022
|
35022
35022AG041 KNOB LTHR DIMPLE 6MT2006-10-01 ~ 2007-05-01; 6MT |
35022AG041 |
US $127.16 |
||
|
35022
|
35022
35022AG042 Knob, Gear shift lever2007-05-01 ~ 2008-04-01; 6MT |
35022AG042 |
US $127.16 |
||
|
35024
|
35024
35024FE010 KNOBSLIDER2006-10-01 ~ 2008-04-01; 6MT |
35024FE010 |
from US $47.54 |
||
|
35031
|
35031
35031AG020 STAY COMPL2006-10-01 ~ 2008-04-01; 6MT |
35031AG020 |
from US $29.67 |
||
|
35033
|
35033
35033FE010 BRKT STAY2006-10-01 ~ 2008-04-01; 6MT |
35033FE010 |
US $32.14 |
||
|
35033D
|
35033D
35033AG070 BRKT HOLDER2006-10-01 ~ 2008-04-01; 6MT |
35033AG070 |
US $26.76 |
||
|
35035
|
35035
35035KA010 BUSH B2006-10-01 ~ 2008-04-01; 5MT +6MT |
35035KA010 |
from US $2.79 |
||
|
35035A
|
35035A
35035FE030 BUSHING2006-10-01 ~ 2008-04-01; 6MT |
35035FE030 |
from US $17.63 |
||
|
35035B
|
35035B
35035KC010 BUSH2008-04-01 ~ 2008-04-01; 5MT +6MT |
35035KC010 |
US $3.54 |
||
|
35035B
|
35035B
733146310 BUSH2006-10-01 ~ 2008-04-01; 6MT |
733146310 |
from US $1.59 |
||
|
35035C
|
35035C
35035AG040 ﾌﾞｼﾕ,ｽﾃｰ ｺﾝﾌﾟﾘｰﾄ ﾚﾊﾞｰ ﾌﾛﾝﾄ2006-10-01 ~ 2008-04-01; 6MT |
35035AG040 |
US $21.24 |
||
|
35035G
|
35035G
35035AG030 BUSHING2006-10-01 ~ 2008-04-01; 6MT |
35035AG030 |
from US $13.47 |
||
|
35036
|
35036
35036AA010 CUSHION RUBBER2006-10-01 ~ 2008-04-01; 5MT +6MT |
35036AA010 |
from US $19.54 |
||
|
35038
|
35038
35038AG060 PLATE COMPL2006-10-01 ~ 2008-04-01; 6MT |
35038AG060 |
US $26.76 |
||
|
35038D
|
35038D
35038FE000 PLATE CABLE2006-10-01 ~ 2008-04-01; 6MT |
35038FE000 |
US $3.12 |
||
|
35041
|
35041
35041AG020 ROD COMPL2006-10-01 ~ 2008-04-01; 6MT |
35041AG020 |
US $43.75 |
||
|
35043
|
35043
35043FE000 SPRING2006-10-01 ~ 2008-04-01; 6MT |
35043FE000 |
US $7.25 |
||
|
35043C
|
35043C
35043AG000 SPRING SEAT2006-10-01 ~ 2008-04-01; 6MT |
35043AG000 |
US $6.80 |
||
|
35044
|
35044
35044AG030 SPACER2006-10-01 ~ 2008-04-01; 6MT |
35044AG030 |
US $4.11 |
||
|
35044A
|
35044A
35044FE030 SPACER2006-10-01 ~ 2008-04-01; 5MT +6MT |
35044FE030 |
US $3.82 |
||
|
35046
|
35046
35046FE010 JOINT COMPL2006-10-01 ~ 2008-04-01; 6MT |
35046FE010 |
US $34.55 |
||
|
35057A
|
35057A
35057AE000 CLAMP2006-10-01 ~ 2008-04-01; 5MT +6MT |
35057AE000 |
US $3.54 |
||
|
35060
|
35060
35060AG010 CABLE ASSYR CK2006-10-01 ~ 2008-04-01; 6MT |
35060AG010 |
US $114.98 |
||
|
35064
|
35064
35064AG000 BAND2006-10-01 ~ 2008-04-01; 6MT |
35064AG000 |
US $1.56 |
||
|
35067
|
35067
35067FE000 SHAFT PIN2006-10-01 ~ 2008-04-01; 6MT |
35067FE000 |
US $0.71 |
||
|
35068
|
35068
35068FE000 SEAT CUSHION2006-10-01 ~ 2008-04-01; 6MT |
35068FE000 |
US $0.75 |
||
|
35083
|
35083
633046020 SPRING PIN UNGS2006-10-01 ~ 2008-04-01; 5MT +6MT |
633046020 |
from US $0.65 |
||
|
35088
|
35088
733148070 SCREW WASHER2006-10-01 ~ 2008-04-01; 6MT |
733148070 |
US $1.27 |
||
|
W410038
|
W410038
909410038 PLUG M82006-10-01 ~ 2008-04-01; 5MT +6MT |
909410038 |
US $0.71 |
