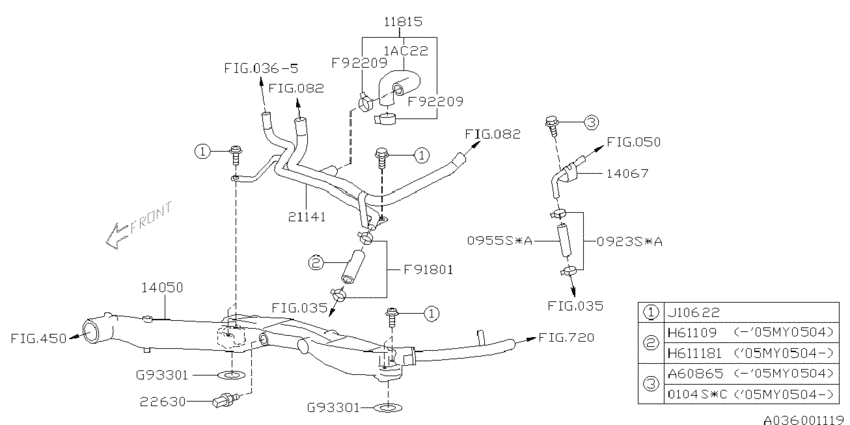

Water pipe (1) (WATER PIPE '04MY-'06MY; 20X +20Y; 2003-05-01~2006-06-01) Diagram Subaru LEGACY
- Year
- 2005 - 2006
- Sales region
- Europe
- Engine
- 20X
- drive
- 4W
- transmission
- 5AT
- grade
- 20GTS
- body
- W
- Suspension
- N/S
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0104S
|
0104S
010406160 FLANGE BOLT2005-03-01 ~ 2006-06-01; 20RS.204 +20GTS.(20X+20Y) +25IS.25# +BLI.30D |
010406160 |
US $0.42 |
||
|
0104S
|
0104S
010408160 FLANGE BOLT2005-03-01 ~ 2006-06-01; 20RS.204 +20GTS.(20X+20Y) +25IS.25# +BLI.30D |
010408160 |
from US $0.35 |
||
|
0923S
|
0923S
092313102 CLIP2005-03-01 ~ 2006-06-01; 20RS.204 +20GTS.(20X+20Y) +25IS.25# +BLI.30D |
092313102 |
from US $0.41 |
||
|
0923S
|
0923S
092318002 HOSE CLP182005-03-01 ~ 2006-06-01; 20RS.204 +20GTS.(20X+20Y) +25IS.25# +BLI.30D |
092318002 |
US $2.12 |
||
|
0955S
|
0955S
09551B050 WATR HOSE2005-03-01 ~ 2006-06-01; 20RS.204 +20GTS.(20X+20Y) +25IS.25# +BLI.30D |
09551B050 |
US $7.22 |
||
|
11815
|
11815
11815AB720 HOSE ASSYPCV2005-03-01 ~ 2006-06-01; 20GTS.(20X+20Y) |
11815AB720 |
from US $6.85 |
||
|
14050
|
14050
14050AA370 PIPE COMPLWATER2005-03-01 ~ 2006-06-01; 20GTS.(20X+20Y) |
14050AA370 |
US $145.85 |
||
|
14067
|
14067
14067AA140 PIPEWATER BYPASS2005-03-01 ~ 2006-06-01; 20GTS.(20X+20Y) |
14067AA140 |
US $32.14 |
||
|
1AC22
|
1AC22
99071AC220 HOSEVACUUM2005-03-01 ~ 2006-06-01; 20GTS.(20X+20Y) |
99071AC220 |
from US $5.01 |
||
|
21141
|
21141
21141AA140
ﾊﾟｲﾌﾟ,ｳｵｰﾀ ﾀﾝｸ
2005-03-01 ~ 2006-06-01; 20GTS.(20X+20Y) |
21141AA140 |
— | ||
|
22630
|
22630
22630AA140 SEN ASSYTEMP2005-03-01 ~ 2006-06-01; 20RS.204 +20GTS.(20X+20Y) +25IS.25# +BLI.30D |
22630AA140 |
from US $14.28 |
||
|
A60865
|
A60865
800608650 BOLT8X18X182005-03-01 ~ 2006-06-01; 20GTS.(20X+20Y) |
800608650 |
US $4.81 |
||
|
F91801
|
F91801
805918010 HOSE CLIP 182005-03-01 ~ 2006-06-01; S.20RS.204.LH +20GTS.(20X+20Y) |
805918010 |
from US $0.57 |
||
|
F92209
|
F92209
805922090 HOSE, CLAMP2005-03-01 ~ 2006-06-01; 20RS.4AT.204.LH +20GTS.(20X+20Y) +BLI.30D |
805922090 |
from US $1.41 |
||
|
F92209
|
F92209
805922090 HOSE, CLAMP2005-03-01 ~ 2006-06-01; 20RS.4AT.204.LH +20GTS.(20X+20Y) +BLI.30D |
805922090 |
from US $1.41 |
||
|
G93301
|
G93301
806933010 RING337X352005-03-01 ~ 2006-06-01; 20RS.204 +20GTS.(20X+20Y) +25IS.25# |
806933010 |
from US $1.05 |
||
|
G93301
|
G93301
806933010 RING337X352005-03-01 ~ 2006-06-01; 20RS.204 +20GTS.(20X+20Y) +25IS.25# |
806933010 |
from US $1.05 |
||
|
H611181
|
H611181
807611181 HOSE11X18X45X632005-03-01 ~ 2006-06-01; 20GTS.(20X+20Y) |
807611181 |
from US $4.90 |
||
|
J10622
|
J10622
808106220 BOLT6X30X182005-03-01 ~ 2006-06-01; 20RS.204 +20GTS.(20X+20Y) +25IS.25#; 6X30X18 |
808106220 |
from US $0.67 |
