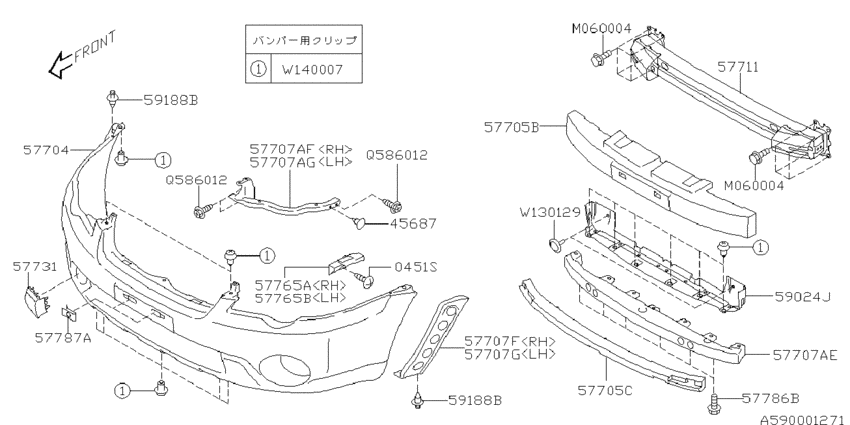

Front bumper (Aﾈﾝｶｲ-Cﾈﾝｶｲ; OBK; 2003-01-01~2006-04-01) Diagram Subaru LEGACY
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 253
- drive
- 4W
- transmission
- 4AT
- grade
- 25I
- body
- OBK
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0451S
|
0451S
045105120 TAPPING SCREW2005-03-01 ~ 2006-04-01; S +W +OBK |
045105120 |
from US $0.06 |
||
|
45687
|
45687
46064AE000 CLIP2005-03-01 ~ 2006-04-01; S +W +OBK |
46064AE000 |
from US $0.57 |
||
|
57704
|
57704
57703AG010BE ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2005-03-01 ~ 2006-04-01; OBK.(25I+25II+30R+30RA); C |
57703AG010BE |
US $903.41 |
||
|
57704
|
57704
57703AG010GA ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2005-03-01 ~ 2006-04-01; OBK.(25I+25II+30R+30RA); C |
57703AG010GA |
US $903.41 |
||
|
57704
|
57704
57703AG010LR ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2005-03-01 ~ 2006-04-01; OBK.(25I+25II+30R+30RA); C |
57703AG010LR |
US $903.41 |
||
|
57704
|
57704
57703AG010TE ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2005-03-01 ~ 2006-04-01; OBK.(25I+25II+30R+30RA); C |
57703AG010TE |
US $903.41 |
||
|
57704
|
57704
57703AG010VW ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2005-03-01 ~ 2006-04-01; OBK.(25I+25II+30R+30RA); C |
57703AG010VW |
US $903.41 |
||
|
57704
|
57704
57703AG010WZ ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2005-03-01 ~ 2006-04-01; OBK.(25I+25II+30R+30RA); C |
57703AG010WZ |
US $903.41 |
||
|
57704
|
57704
57704AG010 BUMPER FACE F OBK2005-03-01 ~ 2006-04-01; OBK; ﾑﾄｿｳﾋﾝ |
57704AG010 |
from US $293.76 |
||
|
57705B
|
57705B
57705AG010 ENR ABSORB FOAM FOBK2005-03-01 ~ 2006-04-01; OBK |
57705AG010 |
US $39.79 |
||
|
57705C
|
57705C
57705AG030 ENR ABSORB FOAM LOBK2005-03-01 ~ 2006-04-01; OBK |
57705AG030 |
from US $20.07 |
||
|
57707AE
|
57707AE
57707AG080 ﾌﾞﾗｹﾂﾄ,ﾊﾞﾝﾊﾟ ﾌﾛﾝﾄ ﾛｱ2005-03-01 ~ 2006-04-01; S +W +OBK |
57707AG080 |
US $19.97 |
||
|
57707AF
|
57707AF
57707AG060 BRKT CORNER F RH2005-03-01 ~ 2006-04-01; S +W +OBK |
57707AG060 |
US $28.46 |
||
|
57707AG
|
57707AG
57707AG070 BRKT CORNER F LH2005-03-01 ~ 2006-04-01; S +W +OBK |
57707AG070 |
US $28.46 |
||
|
57707F
|
57707F
57707AG021 BRKT SD F RH2005-03-01 ~ 2006-04-01; OBK |
57707AG021 |
from US $22.40 |
||
|
57707G
|
57707G
57707AG031 BRKT SD F LH2005-03-01 ~ 2006-04-01; OBK |
57707AG031 |
from US $22.40 |
||
|
57711
|
57711
57712AG000 ﾊﾞﾂｸ ﾋﾞｰﾑ ｺﾝﾌﾟﾘｰﾄ,ﾌﾛﾝﾄ2005-03-01 ~ 2006-04-01; S +W +OBK |
57712AG000 |
US $230.81 |
||
|
57731
|
57731
57731AG060 COVER HOOK OBK CLH42005-03-01 ~ 2006-04-01; OBK |
57731AG060 |
from US $11.30 |
||
|
57765A
|
57765A
57765AG001 SLIDER F RH2005-03-01 ~ 2006-04-01; S +W +OBK |
57765AG001 |
from US $2.37 |
||
|
57765B
|
57765B
57765AG011 SLIDER F LH2005-03-01 ~ 2006-04-01; S +W +OBK |
57765AG011 |
from US $2.83 |
||
|
57786B
|
57786B
57770KC000 SCREW BUMPER2005-03-01 ~ 2006-04-01; S +W +OBK |
57770KC000 |
US $1.42 |
||
|
57787A
|
57787A
57738KA000 NUT2005-03-01 ~ 2006-04-01; S +W +OBK |
57738KA000 |
from US $1.65 |
||
|
59024J
|
59024J
57731AG591 ｶﾊﾞｰ,ｴｱｲﾝﾃｰｸ2005-03-01 ~ 2006-04-01; S +W.(I#+20R+20RI+30R+30RA+30RB+30RAB+GT#) +OBK |
57731AG591 |
US $21.38 |
||
|
59188B
|
59188B
59122PA010 CLIP P2005-03-01 ~ 2006-04-01; S +W +OBK |
59122PA010 |
from US $0.63 |
||
|
M060004
|
M060004
901060004 FT BOLT2005-03-01 ~ 2006-04-01; S +W +OBK |
901060004 |
US $0.99 |
||
|
Q586012
|
Q586012
904586012 TAPPING SCREW F2005-03-01 ~ 2006-04-01; S +W +OBK |
904586012 |
from US $0.30 |
||
|
W130129
|
W130129
909130129 CLIP TREE M62005-03-01 ~ 2006-04-01; S +W.(I#+20R+20RI+30R+30RA+30RB+30RAB+GT#) +OBK |
909130129 |
from US $0.67 |
||
|
W140007
|
W140007
909140007 CLIP2005-03-01 ~ 2006-04-01; *25I +25II +OBK.30R +OBK.30RA |
909140007 |
from US $0.41 |
