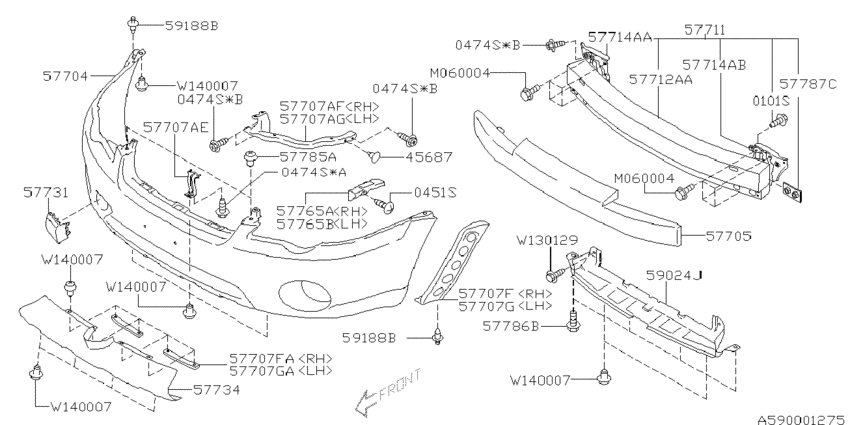

Front bumper ('05MY-'07MY; SOBK +WOBK; 2003-11-01~2007-03-01) Diagram Subaru LEGACY
- Year
- 2003 - 2007
- Sales region
- U.S.A.
- Engine
- 255
- drive
- 4W
- transmission
- 5MT
- grade
- 25GT
- body
- WOBK
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0101S
|
0101S
010108207 FLANGE BOLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
010108207 |
US $0.42 |
||
|
0451S
|
0451S
045105120 TAPPING SCREW2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
045105120 |
from US $0.06 |
||
|
0474S
|
0474S
047406127 FT TAPPING SCRE2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
047406127 |
US $0.42 |
||
|
0474S
|
0474S
047406160 FT TAPPING SCREW2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
047406160 |
US $0.28 |
||
|
0474S
|
0474S
047406127 FT TAPPING SCRE2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
047406127 |
US $0.42 |
||
|
0474S
|
0474S
047406160 FT TAPPING SCREW2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
047406160 |
US $0.28 |
||
|
0474S
|
0474S
047406127 FT TAPPING SCRE2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
047406127 |
US $0.42 |
||
|
0474S
|
0474S
047406160 FT TAPPING SCREW2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
047406160 |
US $0.28 |
||
|
0474S
|
0474S
047406127 FT TAPPING SCRE2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
047406127 |
US $0.42 |
||
|
0474S
|
0474S
047406160 FT TAPPING SCREW2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
047406160 |
US $0.28 |
||
|
45687
|
45687
46064AE000 CLIP2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
46064AE000 |
from US $0.57 |
||
|
57704
|
57704
57704AG03A
Bumper face-front
2005-11-01 ~ 2007-03-01; SOBK +WOBK; PAINT FOR USAGE |
57704AG03A |
— | ||
|
57705
|
57705
57705AG05A
Energy absorber-front bumper
2005-11-01 ~ 2006-07-01; SOBK +WOBK |
57705AG05A |
— | ||
|
57705
|
57705
57705AG05B
Energy absorber-front bumper
2006-08-01 ~ 2007-03-01; SOBK +WOBK |
57705AG05B |
— | ||
|
57707AE
|
57707AE
57707AG64A
Bracket-bumper,front lower
2005-11-01 ~ 2007-03-01; SOBK +WOBK |
57707AG64A |
— | ||
|
57707AF
|
57707AF
57707AG21A
Bracket-front bumper corner,right
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57707AG21A |
— | ||
|
57707AG
|
57707AG
57707AG22A
Bracket-front bumper corner,left
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57707AG22A |
— | ||
|
57707F
|
57707F
57707AG17A
Bracket-front bumper side,right
2005-11-01 ~ 2007-03-01; SOBK +WOBK |
57707AG17A |
— | ||
|
57707G
|
57707G
57707AG18A
Bracket-front bumper side,left
2005-11-01 ~ 2007-03-01; SOBK +WOBK |
57707AG18A |
— | ||
|
57711
|
57711
57712AG02A
Back beam complete-front
2005-11-01 ~ 2006-12-01; SOBK +WOBK |
57712AG02A |
— | ||
|
57711
|
57711
57712AG02B
Back beam complete-front
2006-12-01 ~ 2007-03-01; SOBK +WOBK |
57712AG02B |
— | ||
|
57712AA
|
57712AA
57712AG28A
Beam front main
2005-11-01 ~ 2007-03-01; SOBK +WOBK |
57712AG28A |
— | ||
|
57714AA
|
57714AA
57714AG08A9P
Stay complete-front right
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57714AG08A9P |
— | ||
|
57714AB
|
57714AB
57714AG09A9P
Stay complete-front left
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57714AG09A9P |
— | ||
|
57731
|
57731
57731AG11A
Cover-front bumper
2005-11-01 ~ 2007-03-01; SOBK +WOBK |
57731AG11A |
— | ||
|
57765A
|
57765A
57765AG02A
Slider-front bumper side right
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57765AG02A |
— | ||
|
57765B
|
57765B
57765AG03A
Slider-front bumper side left
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57765AG03A |
— | ||
|
57785A
|
57785A
57737GA290 BOLT (F BUMPER)2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57737GA290 |
from US $1.39 |
||
|
57786B
|
57786B
57770KC000 SCREW BUMPER2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57770KC000 |
US $1.42 |
||
|
57787C
|
57787C
57722AG10A9P
Nut plate
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57722AG10A9P |
— | ||
|
59024J
|
59024J
57731AG70A
Cover-air intake
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
57731AG70A |
— | ||
|
59188B
|
59188B
59122PA010 CLIP P2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
59122PA010 |
from US $0.63 |
||
|
59188B
|
59188B
59122PA010 CLIP P2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
59122PA010 |
from US $0.63 |
||
|
M060004
|
M060004
901060004 FT BOLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901060004 |
US $0.99 |
||
|
M060004
|
M060004
901060004 FT BOLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
901060004 |
US $0.99 |
||
|
W130129
|
W130129
909130129 CLIP TREE M62005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
909130129 |
from US $0.67 |
||
|
W140007
|
W140007
909140007 CLIP2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
909140007 |
from US $0.39 |
||
|
W140007
|
W140007
909140007 CLIP2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
909140007 |
from US $0.39 |
||
|
W140007
|
W140007
909140007 CLIP2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
909140007 |
from US $0.39 |
||
|
W140007
|
W140007
909140007 CLIP2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
909140007 |
from US $0.39 |
||
|
W140007
|
W140007
909140007 CLIP2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
909140007 |
from US $0.39 |
