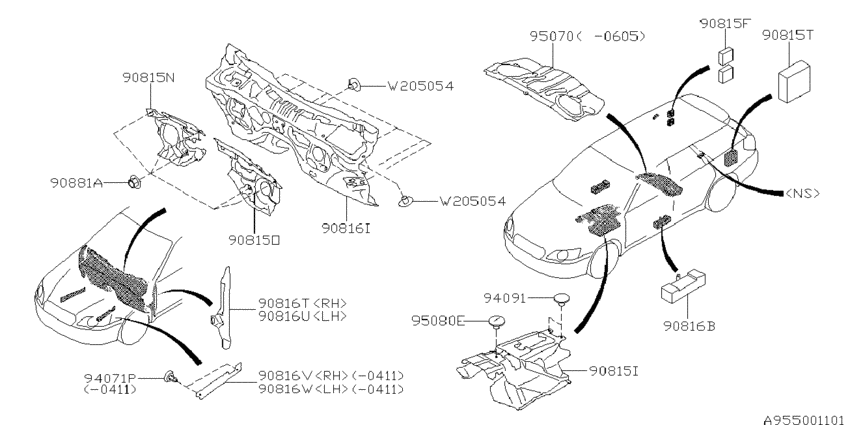

Floor insulator (W +WOBK; 2003-11-01~) Diagram Subaru LEGACY
- Year
- 2003 - 2011
- Sales region
- U.S.A.
- Engine
- 253
- drive
- 4W
- transmission
- 4AT
- grade
- 25I
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
90815F
|
90815F
90815AC430
Insulator-front pillar
2005-11-01 ~ 2007-03-01; W +WOBK |
90815AC430 |
— | ||
|
90815I
|
90815I
90815AG09A
Insulator-tunnel
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
90815AG09A |
— | ||
|
90815N
|
90815N
90815AG21A
Insulaor-toe board outer,right
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
90815AG21A |
— | ||
|
90815O
|
90815O
90815AG13A
Insulator-tob board outer,left
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
90815AG13A |
— | ||
|
90815T
|
90815T
90815AC350 INSULATOR TRUNK SLH2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
90815AC350 |
US $9.06 |
||
|
90816B
|
90816B
90815AG24A
Insulator-rear pillar lower
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
90815AG24A |
— | ||
|
90816I
|
90816I
90815AG10D
Insulator-toe board
2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
90815AG10D |
— | ||
|
90816T
|
90816T
90815AG041 INSULATOR FENDER RH2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
90815AG041 |
US $37.52 |
||
|
90816U
|
90816U
90815AG051 INSULATOR FENDER LH2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
90815AG051 |
from US $34.56 |
||
|
90881A
|
90881A
90810PA000 CLIP INS OUT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
90810PA000 |
US $1.84 |
||
|
94091
|
94091
94091FC000 CLIPM6 BOLT2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
94091FC000 |
US $1.13 |
||
|
95070
|
95070
95070AG02A
Cover-rear floor
2005-11-01 ~ 2006-05-01; S +SOBK +W +WOBK |
95070AG02A |
— | ||
|
95080E
|
95080E
94099AA270OE CLIP MAT FLOOR C2005-11-01 ~ 2007-03-01; DARK GRAY; S +SOBK +W +WOBK |
94099AA270OE |
from US $0.87 |
||
|
W205054
|
W205054
909205054 HOLDER INSULATO2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
909205054 |
US $0.99 |
||
|
W205054
|
W205054
909205054 HOLDER INSULATO2005-11-01 ~ 2007-03-01; S +SOBK +W +WOBK |
909205054 |
US $0.99 |
