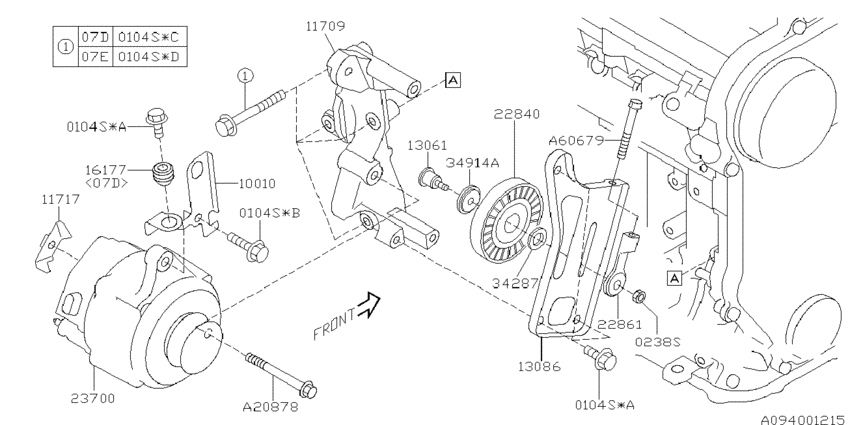

Alternator (07E +07D; 2004-11-01~) Diagram Subaru R1
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 07D
- drive
- 2WD
- transmission
- CVT
- grade
- R
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0104S
|
0104S
010408160 FLANGE BOLT2006-09-01 ~ 2007-06-01; 07# |
010408160 |
US $0.42 |
||
|
0104S
|
0104S
010408200 Bolt2006-09-01 ~ 2007-06-01; 07# |
010408200 |
US $0.57 |
||
|
0104S
|
0104S
010408250
FLANGE BOLT
2006-09-01 ~ 2007-06-01; 07# |
010408250 |
— | ||
| replacement | |||||
|
0104S
|
0104S
01040825A FLANGE BOLT2006-09-01 ~ 2007-06-01; 07# |
01040825A |
US $0.57 |
||
|
0104S
|
0104S
010408350 FLG BOLT2006-09-01 ~ 2007-06-01; 07# |
010408350 |
from US $0.57 |
||
|
0104S
|
0104S
010408400 FLG BOLT2006-09-01 ~ 2007-06-01; 07# |
010408400 |
US $1.13 |
||
|
0104S
|
0104S
010408500 FLANGE BOLT2006-09-01 ~ 2007-06-01; 07# |
010408500 |
US $0.99 |
||
|
0104S
|
0104S
010408600 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ2006-09-01 ~ 2007-06-01; 07# |
010408600 |
US $1.56 |
||
|
0238S
|
0238S
023808000 FLANGE NUT2006-09-01 ~ 2007-06-01; 07# |
023808000 |
US $0.42 |
||
|
10010
|
10010
10010KA260 ﾊﾝｶﾞ,ｴﾝｼﾞﾝ2006-09-01 ~ 2007-06-01; 07D |
10010KA260 |
US $7.79 |
||
|
11709
|
11709
11709KA300 ﾌﾞﾗｹﾂﾄ,ｵﾙﾀﾈｰﾀ2006-09-01 ~ 2007-06-01; 07D |
11709KA300 |
US $42.76 |
||
|
11717
|
11717
11717KA080 ﾌﾟﾚｰﾄ,ｵﾙﾀﾈｰﾀ2006-09-01 ~ 2007-06-01; 07# |
11717KA080 |
US $3.68 |
||
|
13061
|
13061
13061KA040 ｼﾔﾌﾄ,ﾎﾞﾙﾄ ｱｼﾞﾔｽﾄ2006-09-01 ~ 2007-06-01; 07D +07E |
13061KA040 |
US $9.20 |
||
|
13086
|
13086
13086KA040 ﾌﾞﾗｹﾂﾄ,ﾃﾝｼﾖﾅ2006-09-01 ~ 2007-06-01; 07D +07E |
13086KA040 |
US $38.37 |
||
|
16177
|
16177
16177KA030 ｲﾝｼﾕﾚｰﾀ,ｷﾔﾌﾞﾚｰﾀ2006-09-01 ~ 2007-06-01; 07D |
16177KA030 |
US $2.27 |
||
|
22840
|
22840
22840KA030 ﾌﾟｰﾘ ｺﾝﾌﾟﾘｰﾄ,ﾃﾝｼﾖﾅ2006-09-01 ~ 2007-06-01; 07D +07E |
22840KA030 |
US $42.76 |
||
|
22861
|
22861
22861KA030 ｽﾃｰ,ｱｼﾞﾔｽﾀ2006-09-01 ~ 2007-06-01; 07D +07E |
22861KA030 |
US $5.81 |
||
|
23700
|
23700
23700KA860 ｵﾙﾀﾈｰﾀ ｱｾﾝﾌﾞﾘ2006-09-01 ~ 2007-06-01; 07D +07E; ND |
23700KA860 |
US $734.90 |
||
|
34287
|
34287
34292KC000 ﾜﾂｼﾔ,ﾌﾟｰﾘ2006-09-01 ~ 2007-06-01; 07D +07E |
34292KC000 |
US $1.84 |
||
|
34914A
|
34914A
34252KC000 ﾌﾟﾛﾃｸﾀ,ｱｲﾄﾞﾗ ﾌﾟｰﾘ2006-09-01 ~ 2007-06-01; 07D +07E |
34252KC000 |
US $1.98 |
||
|
A20878
|
A20878
800208780 BOLT8X80X202006-09-01 ~ 2007-06-01; 07# |
800208780 |
US $1.27 |
||
|
A60679
|
A60679
800606790 ﾎﾞﾙﾄ,6X50X502006-09-01 ~ 2007-06-01; 07D +07E |
800606790 |
US $1.13 |
||
