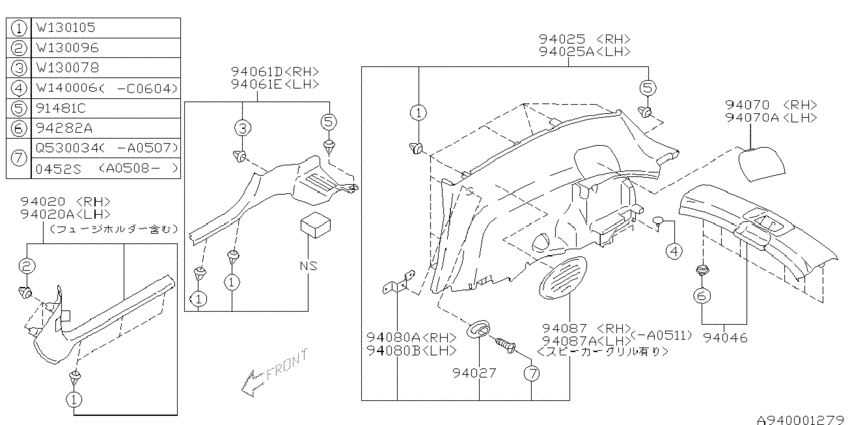

Inner trim (ﾛｱ; W; 2004-11-01~) Diagram Subaru R1
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 07D
- drive
- 2WD
- transmission
- CVT
- grade
- R
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0452S
|
0452S
045205163 TAPPING SCREW2006-09-01 ~ 2007-06-01; W |
045205163 |
US $0.28 |
||
|
91481C
|
91481C
91087KA040 ｸﾘﾂﾌﾟ,ｶｳﾙ ﾊﾟﾈﾙ2006-09-01 ~ 2007-06-01; W |
91087KA040 |
US $1.27 |
||
|
94020
|
94020
94020KG000LJ ﾄﾘﾑ ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾋﾟﾗｰ ﾛｱ ﾗｲﾄ2006-09-01 ~ 2007-06-01; W |
94020KG000LJ |
US $19.97 |
||
|
94020A
|
94020A
94020KG010LJ ﾄﾘﾑ ﾊﾟﾈﾙ,ﾌﾛﾝﾄ ﾋﾟﾗｰ ﾛｱ ﾚﾌﾄ2006-09-01 ~ 2007-06-01; W |
94020KG010LJ |
US $19.97 |
||
|
94025
|
94025
94027KG040LJ ﾄﾘﾑ ﾊﾟﾈﾙ,ﾘﾔ ｸｵｰﾀ ﾗｲﾄ2006-09-01 ~ 2007-06-01; W |
94027KG040LJ |
US $113.28 |
||
|
94025A
|
94025A
94027KG050LJ ﾄﾘﾑ ﾊﾟﾈﾙ,ﾘﾔ ｸｵｰﾀ ﾚﾌﾄ2006-09-01 ~ 2007-06-01; W |
94027KG050LJ |
US $113.28 |
||
|
94027
|
94027
94072SA040LJ ﾄﾘﾑ ﾊﾟﾈﾙ,ﾘﾔ ｴﾌﾟﾛﾝ ﾗｲﾄ2006-09-01 ~ 2007-06-01; W |
94072SA040LJ |
US $6.09 |
||
|
94046
|
94046
94046KG020LJ ﾄﾘﾑ ﾊﾟﾈﾙ,ﾘﾔ ｽｶｰﾄ2006-09-01 ~ 2007-06-01; W |
94046KG020LJ |
US $18.41 |
||
|
94061D
|
94061D
94027KG060LJ ｶﾊﾞｰ,ｻｲﾄﾞ ｼﾙ ﾘﾔ ｱｳﾀ ﾗｲﾄ2006-09-01 ~ 2007-06-01; W |
94027KG060LJ |
US $26.76 |
||
|
94061E
|
94061E
94027KG070LJ ｶﾊﾞｰ,ｻｲﾄﾞ ｼﾙ ﾘﾔ ｱｳﾀ ﾚﾌﾄ2006-09-01 ~ 2007-06-01; W |
94027KG070LJ |
US $26.76 |
||
|
94070
|
94070
94067KG010LJ ｷﾔﾂﾌﾟ,ｽﾄﾗﾂﾄ ﾏｳﾝﾄ ﾗｲﾄ2006-09-01 ~ 2007-06-01; W |
94067KG010LJ |
US $4.67 |
||
|
94070A
|
94070A
94067KG020LJ ｷﾔﾂﾌﾟ,ｽﾄﾗﾂﾄ ﾏｳﾝﾄ ﾚﾌﾄ2006-09-01 ~ 2007-06-01; W |
94067KG020LJ |
US $4.67 |
||
|
94080A
|
94080A
94080KG020 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ｸｵｰﾀ ﾄﾘﾑ ﾗｲﾄ2006-09-01 ~ 2007-06-01; W |
94080KG020 |
US $3.82 |
||
|
94080B
|
94080B
94080KG030 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ｸｵｰﾀ ﾄﾘﾑ ﾚﾌﾄ2006-09-01 ~ 2007-06-01; W |
94080KG030 |
US $3.82 |
||
|
94282A
|
94282A
94070GA010
CLIP N
2006-09-01 ~ 2007-06-01; W |
94070GA010 |
— | ||
| replacement | |||||
|
94282A
|
94282A
94078FC010 CLIP N2006-09-01 ~ 2007-06-01; W |
94078FC010 |
US $1.98 |
||
|
W130078
|
W130078
909130078 CLIP PIN D9X82006-09-01 ~ 2007-06-01; W |
909130078 |
from US $1.46 |
||
|
W130096
|
W130096
909130096 CLIP PIN D85X102006-09-01 ~ 2007-06-01; W |
909130096 |
from US $0.50 |
||
|
W130105
|
W130105
909130105 CLIP GROMMET D852006-09-01 ~ 2007-06-01; W |
909130105 |
from US $0.50 |
||
