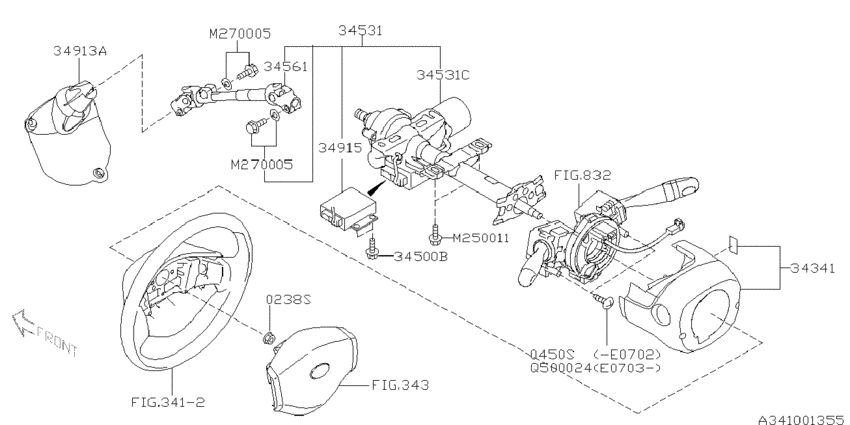

Steering column (ｽﾃｱﾘﾝｸﾞｺﾗﾑ; W; 2004-11-01~) Diagram Subaru R1
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 07D
- drive
- 2WD
- transmission
- CVT
- grade
- R
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0238S
|
0238S
023812000 FLANGE NUT2006-09-01 ~ 2007-06-01; W |
023812000 |
from US $0.44 |
||
|
0450S
|
0450S
045005123 TAPPING SCREW2006-09-01 ~ 2007-02-01; W |
045005123 |
US $0.14 |
||
|
34341
|
34341
34341KG000OE ｶﾊﾞｰ ｱｾﾝﾌﾞﾘ,ｺﾗﾑ2006-09-01 ~ 2007-06-01; W |
34341KG000OE |
US $24.50 |
||
|
34500B
|
34500B
34500KG030 ﾎﾞﾙﾄ ｱｾﾝﾌﾞﾘ,ECU2006-09-01 ~ 2007-06-01; W |
34500KG030 |
US $0.71 |
||
|
34531
|
34531
34500KG002 ｺﾗﾑ ｱｾﾝﾌﾞﾘ,ｽﾃｱﾘﾝｸﾞ2006-09-01 ~ 2007-06-01; W |
34500KG002 |
US $1,499.54 |
||
|
34531C
|
34531C
34500KG011 ﾕﾆﾂﾄ ｱｾﾝﾌﾞﾘ,ｽﾃｱﾘﾝｸﾞ ｺﾗﾑ2006-09-01 ~ 2007-06-01; W |
34500KG011 |
US $797.21 |
||
|
34561
|
34561
34561KG000 ｼﾞﾖｲﾝﾄ ｱｾﾝﾌﾞﾘ,ｽﾃｱﾘﾝｸﾞ ｺﾗﾑ2006-09-01 ~ 2007-06-01; W |
34561KG000 |
US $152.93 |
||
|
34913A
|
34913A
34342KG000 ｶﾊﾞｰ,ﾕﾆﾊﾞｰｻﾙ ｼﾞﾖｲﾝﾄ2006-09-01 ~ 2007-06-01; W |
34342KG000 |
US $3.82 |
||
|
34915
|
34915
34500KG021 ｺﾝﾄﾛｰﾗ,ｽﾃｱﾘﾝｸﾞ2006-09-01 ~ 2007-06-01; W |
34500KG021 |
US $552.24 |
||
|
M250011
|
M250011
901250011 B0LT ASSY2006-09-01 ~ 2007-06-01; W |
901250011 |
US $3.68 |
||
|
M270005
|
M270005
901270005 BOLT WASHER M82006-09-01 ~ 2007-06-01; W |
901270005 |
from US $1.13 |
||
|
Q500024
|
Q500024
904500024 Screw2007-03-01 ~ 2007-06-01; W |
904500024 |
US $0.14 |
