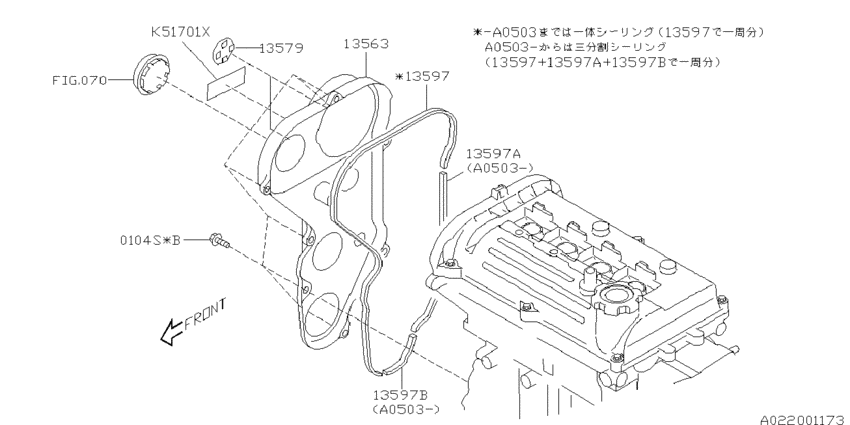

Timing belt cover (07D; 2004-11-01~) Diagram Subaru R1
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 07D
- drive
- 2WD
- transmission
- CVT
- grade
- R
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0104S
|
0104S
010406100 FLNG BOLT2006-09-01 ~ 2007-06-01; 07# |
010406100 |
from US $0.68 |
||
|
0104S
|
0104S
010406160 FLANGE BOLT2006-09-01 ~ 2007-06-01; 07# |
010406160 |
US $0.42 |
||
|
13563
|
13563
13563KA351 ｶﾊﾞｰ ｺﾝﾌﾟﾘｰﾄ,ﾍﾞﾙﾄ NO.22006-09-01 ~ 2007-05-01; 07D; -E/#0342295 |
13563KA351 |
US $24.07 |
||
|
13563
|
13563
13563KA352 ｶﾊﾞｰ ｺﾝﾌﾟﾘｰﾄ,ﾍﾞﾙﾄ NO.22007-05-01 ~ 2007-06-01; 07D; E/#0342296- |
13563KA352 |
US $24.07 |
||
|
13579
|
13579
13579KA060 ﾌﾟﾗｸﾞ,ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ ｶﾊﾞｰ2006-09-01 ~ 2007-06-01; 07D +07E |
13579KA060 |
US $2.83 |
||
|
13597
|
13597
13597KA150 ｼｰﾘﾝｸﾞ,ﾍﾞﾙﾄ ｶﾊﾞｰ2006-09-01 ~ 2007-06-01; 07D |
13597KA150 |
US $3.26 |
||
|
13597A
|
13597A
13597KA160 ｼｰﾘﾝｸﾞ,ﾍﾞﾙﾄ ｶﾊﾞｰ2006-09-01 ~ 2007-06-01; 07D |
13597KA160 |
US $7.50 |
||
|
13597B
|
13597B
13597KA170 ｼｰﾘﾝｸﾞ,ﾍﾞﾙﾄ ｶﾊﾞｰ2006-09-01 ~ 2007-06-01; 07D |
13597KA170 |
US $1.13 |
||
|
K51701X
|
K51701X
809517010 ﾗﾍﾞﾙ,ﾀｲﾐﾝｸﾞ ﾍﾞﾙﾄ ﾒﾝﾃﾅﾝｽ2006-09-01 ~ 2007-06-01; 07# |
809517010 |
US $1.13 |
