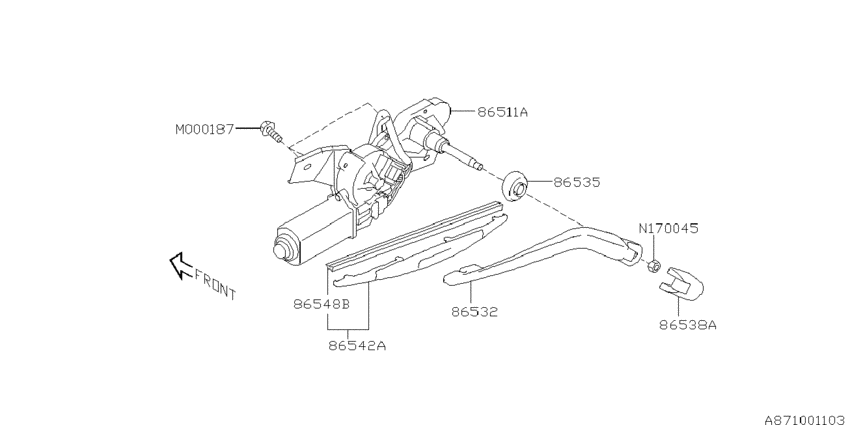

Wiper (rear) (W; 2004-11-01~) Diagram Subaru R1
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 07D
- drive
- 2WD
- transmission
- CVT
- grade
- R
- body
- W
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86511A
|
86511A
86510KG101 ﾓｰﾀ ｱｾﾝﾌﾞﾘ,ﾘﾔ ﾜｲﾊﾟ2006-09-01 ~ 2007-06-01; W |
86510KG101 |
US $189.74 |
||
|
86532
|
86532
86532KG100 WIPER ARM R2006-09-01 ~ 2007-06-01; W |
86532KG100 |
US $20.67 |
||
|
86535
|
86535
86535KG100 ｷﾔﾂﾌﾟ,ﾋﾟﾎﾞﾂﾄ ﾜｲﾊﾟ2006-09-01 ~ 2007-06-01; W |
86535KG100 |
US $3.12 |
||
|
86538A
|
86538A
86538AG070 COVER R WAG2006-09-01 ~ 2007-06-01; W |
86538AG070 |
from US $2.09 |
||
|
86542A
|
86542A
86542KG100 BLADE NR14 305 GC2006-09-01 ~ 2007-06-01; W; 305MM |
86542KG100 |
US $20.11 |
||
|
86548B
|
86548B
86548KG100 RUBBER 305 GC2006-09-01 ~ 2007-06-01; W; 305MM |
86548KG100 |
US $7.65 |
||
|
M000187
|
M000187
901000187 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ2006-09-01 ~ 2007-06-01; W |
901000187 |
US $0.57 |
||
|
N170045
|
N170045
902170045 NUT M62006-09-01 ~ 2007-06-01; W |
902170045 |
US $0.28 |
