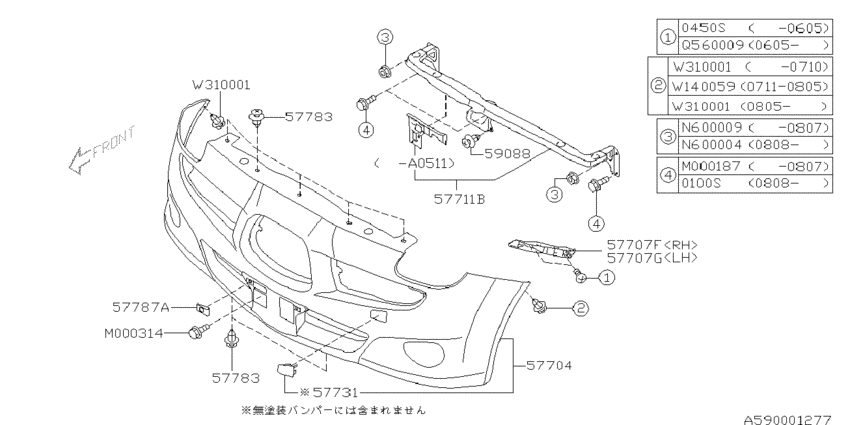

Front bumper (W; 2004-11-01~) Diagram Subaru R1
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 07D
- drive
- 2WD
- transmission
- CVT
- grade
- R
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57704
|
57704
57703KG020EN ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2007-04-01 ~ 2008-06-01; W; C |
57703KG020EN |
US $528.17 |
||
|
57704
|
57704
57703KG020PV ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2007-04-01 ~ 2008-06-01; W; C |
57703KG020PV |
US $528.17 |
||
|
57704
|
57704
57703KG020VW ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2007-04-01 ~ 2008-06-01; W; C |
57703KG020VW |
US $528.17 |
||
|
57704
|
57704
57704KG020 ﾊﾞﾝﾊﾟ ﾌｴｰｽ,ﾌﾛﾝﾄ2007-04-01 ~ 2008-06-01; W; ﾑﾄｿｳﾋﾝ |
57704KG020 |
US $321.43 |
||
|
57707F
|
57707F
57707KG100 ﾌﾞﾗｹﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ ｻｲﾄﾞ ﾗｲﾄ2007-04-01 ~ 2008-06-01; W |
57707KG100 |
US $4.67 |
||
|
57707G
|
57707G
57707KG110 ﾌﾞﾗｹﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ ｻｲﾄﾞ ﾚﾌﾄ2007-04-01 ~ 2008-06-01; W |
57707KG110 |
US $4.67 |
||
|
57711B
|
57711B
57712KG021 ﾋﾞｰﾑ ｱﾂﾊﾟ,ﾊﾞﾝﾊﾟ ﾌﾛﾝﾄ2007-04-01 ~ 2008-06-01; W |
57712KG021 |
US $30.59 |
||
|
57731
|
57731
57727KG010 ｶﾊﾞｰ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ2007-04-01 ~ 2008-06-01; W |
57727KG010 |
US $1.56 |
||
|
57783
|
57783
57728AC090 CLIP-BUMPER,SIDE2007-04-01 ~ 2008-06-01; W |
57728AC090 |
from US $1.35 |
||
|
57787A
|
57787A
57738KA000 NUT2007-04-01 ~ 2008-06-01; W |
57738KA000 |
from US $1.65 |
||
|
59088
|
59088
59033KA000 ｸﾘﾂﾌﾟ,ｽｸﾘﾕ ﾘﾍﾞﾂﾄ2007-04-01 ~ 2008-06-01; W |
59033KA000 |
US $1.98 |
||
|
M000187
|
M000187
901000187 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ2007-04-01 ~ 2008-06-01; W |
901000187 |
US $0.57 |
||
|
M000314
|
M000314
901000314 BOLT FLG M6X162007-04-01 ~ 2008-06-01; W |
901000314 |
US $0.71 |
||
|
N600009
|
N600009
902600009 NUT CON SP WASH2007-04-01 ~ 2008-06-01; W |
902600009 |
US $0.71 |
||
|
Q560009
|
Q560009
904560009
SCREW TAP TRU6X16
2007-04-01 ~ 2008-06-01; W |
904560009 |
— | ||
| replacement | |||||
|
Q560009
|
Q560009
904560041 Screw (6x16)2007-04-01 ~ 2008-06-01; W |
904560041 |
US $0.71 |
||
|
W140059
|
W140059
909140059 CLIP2007-11-01 ~ 2008-05-01; W |
909140059 |
from US $1.07 |
||
|
W310001
|
W310001
909310001 SCRIVET PAI52007-04-01 ~ 2007-10-01; W |
909310001 |
from US $0.50 |
||
