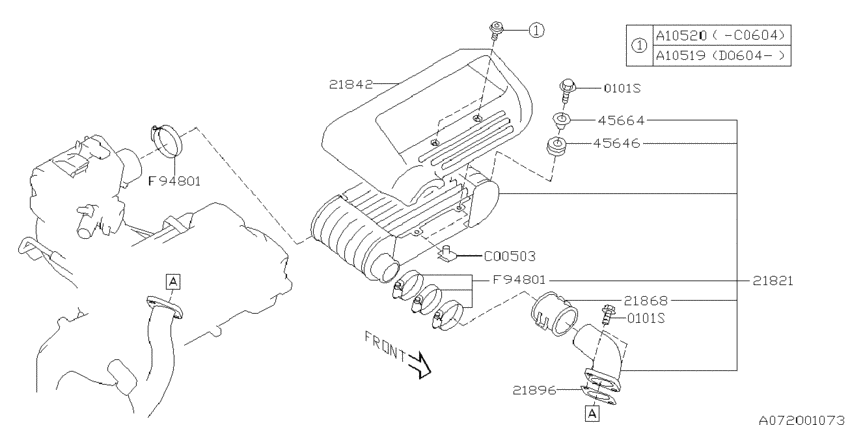

Inter cooler (Cﾈﾝｶｲ-; 07X; 2005-10-01~) Diagram Subaru R1
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- 07X
- drive
- 2WD
- transmission
- S/S
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0101S
|
0101S
010108300 FLANGE BOLT2007-04-01 ~ 2008-06-01; 07D +07X |
010108300 |
US $0.57 |
||
|
21821
|
21821
21821KA130 ｲﾝﾀ ｸｰﾗ ｺﾝﾌﾟﾘｰﾄ2007-04-01 ~ 2008-06-01; 07X |
21821KA130 |
US $528.17 |
||
|
21842
|
21842
21842KA050 ｶﾊﾞｰ,ｲﾝﾀ ｸｰﾗ2007-04-01 ~ 2008-06-01; 07X |
21842KA050 |
US $28.46 |
||
|
21868
|
21868
21868KA021 ﾎｰｽ,ｲﾝﾀ ｸｰﾗ2007-04-01 ~ 2008-06-01; 07X |
21868KA021 |
US $16.85 |
||
|
21896
|
21896
21896KA020 ｶﾞｽｹﾂﾄ,ｲﾝﾀ ｸｰﾗ2007-04-01 ~ 2008-06-01; 07X |
21896KA020 |
US $4.25 |
||
|
45646
|
45646
45668AA000 CUSHION2007-04-01 ~ 2008-06-01; 07X; ND |
45668AA000 |
US $2.13 |
||
|
45664
|
45664
45659AA000 SPACER2007-04-01 ~ 2008-06-01; 07X; ND |
45659AA000 |
from US $1.87 |
||
|
A10519
|
A10519
800105190 ﾎﾞﾙﾄ2007-04-01 ~ 2008-06-01; 07X |
800105190 |
US $0.57 |
||
|
C00503
|
C00503
802005030 ﾅﾂﾄ2007-04-01 ~ 2008-06-01; 07X |
802005030 |
US $0.57 |
||
|
F94801
|
F94801
805948010 HOSE CLAMP 482007-04-01 ~ 2008-06-01; 07X |
805948010 |
US $14.02 |
