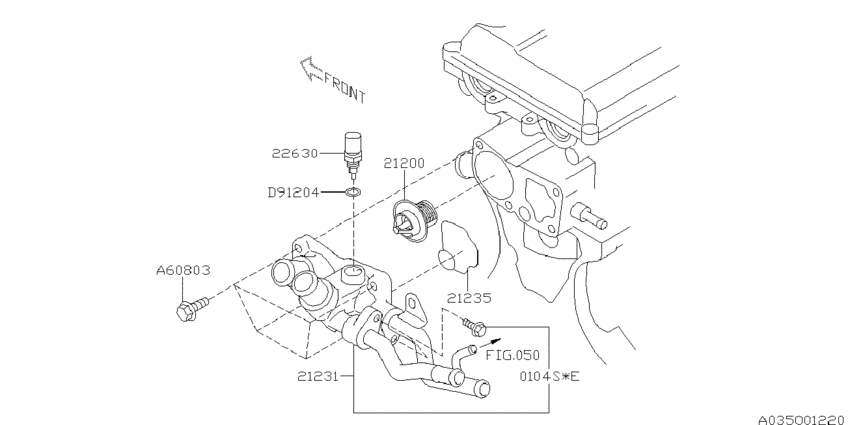

Water pump (ｻｰﾓｽﾀﾂﾄ Eﾈﾝｶｲ-; 07D; 2006-09-01~) Diagram Subaru R1
- Year
- 2004 - 2011
- Sales region
- Japan
- Engine
- 07D
- drive
- F4WD
- transmission
- CVT
- grade
- R
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0104S
|
0104S
010406100 FLNG BOLT2006-04-01 ~ 2006-10-01; 07# |
010406100 |
US $1.13 |
||
|
0104S
|
0104S
010406250 FLG BOLT2006-04-01 ~ 2006-10-01; 07# |
010406250 |
from US $0.43 |
||
|
0104S
|
0104S
010408160 FLANGE BOLT2006-04-01 ~ 2006-10-01; 07# |
010408160 |
from US $0.35 |
||
|
0104S
|
0104S
010408250
FLANGE BOLT
2006-04-01 ~ 2006-10-01; 07# |
010408250 |
— | ||
| replacement | |||||
|
0104S
|
0104S
01040825A FLANGE BOLT2006-04-01 ~ 2006-10-01; 07# |
01040825A |
US $0.57 |
||
|
21200
|
21200
21200KA190 ｻｰﾓ ｱｾﾝﾌﾞﾘ2006-04-01 ~ 2006-10-01; 07D +07X |
21200KA190 |
US $28.89 |
||
|
21231
|
21231
21231KA120 ﾊｳｼﾞﾝｸﾞ ｺﾝﾌﾟﾘｰﾄ,ｱｳﾄﾚﾂﾄ2006-04-01 ~ 2006-10-01; 07D |
21231KA120 |
US $87.93 |
||
|
21235
|
21235
21235KA020 ｶﾞｽｹﾂﾄ,ｱｳﾄﾚﾂﾄ ﾊｳｼﾞﾝｸﾞ2006-04-01 ~ 2006-10-01; 07D |
21235KA020 |
US $5.10 |
||
|
22630
|
22630
22630KA140 SEN ASSYTEMP2006-04-01 ~ 2006-10-01; 07#; ND |
22630KA140 |
from US $15.29 |
||
|
A60803
|
A60803
800608030 BOLT8X28X202006-04-01 ~ 2006-10-01; 07#; 6X12X12 |
800608030 |
US $0.85 |
||
|
D91204
|
D91204
803912040 GASKET (12X16X1)2006-04-01 ~ 2006-10-01; 07#; 12X6X1 |
803912040 |
from US $0.28 |
||
