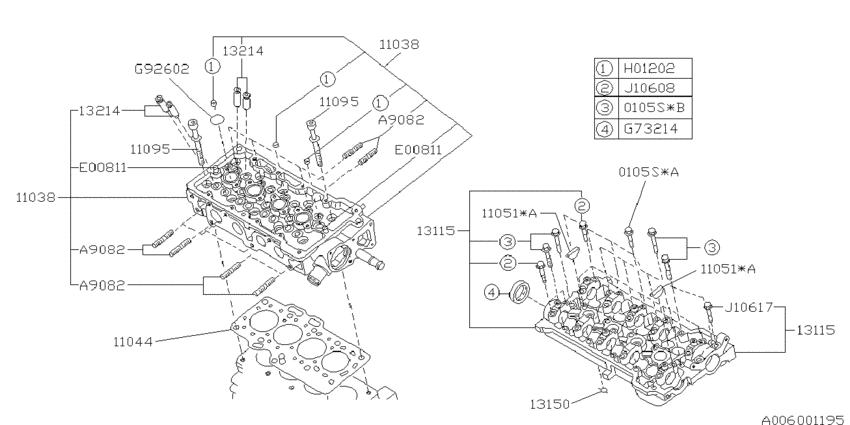

Cylinder head (Cﾈﾝｶｲ-; 07X; 2005-10-01~) Diagram Subaru R1
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- 07X
- drive
- F4WD
- transmission
- S/S
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0105S
|
0105S
010506350 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ2006-04-01 ~ 2006-10-01; 07# |
010506350 |
US $0.85 |
||
|
0105S
|
0105S
010506480 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ2006-04-01 ~ 2006-10-01; 07# |
010506480 |
US $0.99 |
||
|
11038
|
11038
11038KB090 ﾍﾂﾄﾞ ｱｾﾝﾌﾞﾘ,ｼﾘﾝﾀﾞ2006-04-01 ~ 2006-10-01; 07X |
11038KB090 |
US $681.10 |
||
|
11044
|
11044
11044KA390 ｶﾞｽｹﾂﾄ,ｼﾘﾝﾀﾞ ﾍﾂﾄﾞ2006-04-01 ~ 2006-10-01; 07X |
11044KA390 |
US $69.53 |
||
|
11051
|
11051
11051KA000 Plug, cylinder head2006-04-01 ~ 2006-10-01; 07D +07X |
11051KA000 |
US $10.90 |
||
|
11095
|
11095
11095KA080 ﾎﾞﾙﾄ ｱｾﾝﾌﾞﾘ,ｼﾘﾝﾀﾞ ﾍﾂﾄﾞ2006-04-01 ~ 2006-10-01; 07D +07X |
11095KA080 |
US $4.53 |
||
|
13115
|
13115
13115KA002 ｷﾔﾘﾔ ｺﾝﾌﾟﾘｰﾄ,ｶﾑｼﾔﾌﾄ2006-04-01 ~ 2006-10-01; 07X |
13115KA002 |
US $522.50 |
||
|
13150
|
13150
13150KA002 ｶﾞｽｹﾂﾄ,ｶﾑｼﾔﾌﾄ ｷﾔﾘﾔ2006-04-01 ~ 2006-10-01; 07X |
13150KA002 |
US $3.54 |
||
|
13214
|
13214
13214KA030 ｶﾞｲﾄﾞ,ﾊﾞﾙﾌﾞ2006-04-01 ~ 2006-10-01; 07X |
13214KA030 |
US $8.78 |
||
|
A9082
|
A9082
800908200 STUD8X36X122006-04-01 ~ 2006-10-01; 07# |
800908200 |
US $1.56 |
||
|
E00811
|
E00811
804008110 STRPIN 8X102006-04-01 ~ 2006-10-01; 07E +07X; 8X10 |
804008110 |
US $0.85 |
||
|
G73214
|
G73214
806732140 Oil seal (32X42X8)2006-04-01 ~ 2006-10-01; 07D +07X |
806732140 |
from US $3.16 |
||
|
G92602
|
G92602
806926020 Seal O-ring2006-04-01 ~ 2006-10-01; 07X; 26.2X1.9 |
806926020 |
US $2.12 |
||
|
H01202
|
H01202
807012020 PLUG12X62006-04-01 ~ 2006-10-01; 07X; 12X6 |
807012020 |
US $0.85 |
||
|
J10608
|
J10608
808106080 BOLT6X35X102006-04-01 ~ 2006-10-01; 07X; 6X35X10 |
808106080 |
US $0.99 |
||
|
J10617
|
J10617
808106170 ﾎﾞﾙﾄ2006-04-01 ~ 2006-10-01; 07X; 6X35X10 |
808106170 |
US $0.99 |
