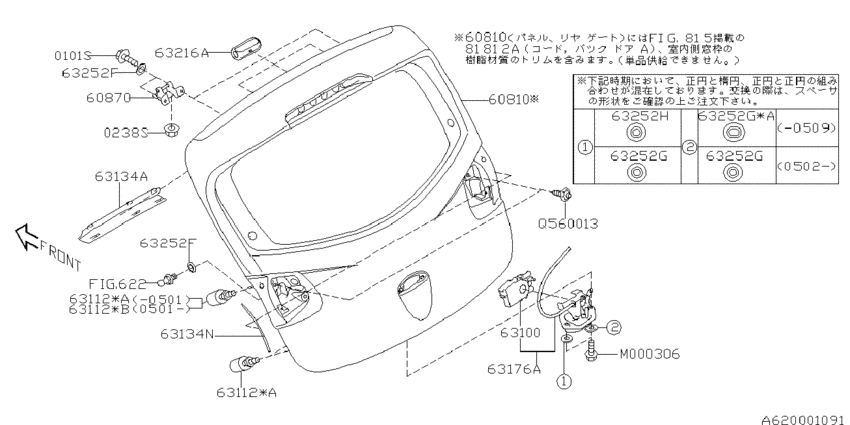

Back door panel (W; 2004-11-01~) Diagram Subaru R1
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- 07X
- drive
- F4WD
- transmission
- S/S
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0101S
|
0101S
010106200 FLANGE BOLT2006-09-01 ~ 2007-06-01; W |
010106200 |
from US $0.44 |
||
|
0238S
|
0238S
023808000 FLANGE NUT2006-09-01 ~ 2007-06-01; W |
023808000 |
US $0.42 |
||
|
60810
|
60810
60819KG122EN ﾊﾟﾈﾙ,ﾘﾔ ｹﾞｰﾄ2006-09-01 ~ 2007-06-01; W; C |
60819KG122EN |
US $811.37 |
||
|
60810
|
60810
60819KG122RS ﾊﾟﾈﾙ,ﾘﾔ ｹﾞｰﾄ2006-09-01 ~ 2007-06-01; W; C |
60819KG122RS |
US $811.37 |
||
|
60810
|
60810
60819KG122VW ﾊﾟﾈﾙ,ﾘﾔ ｹﾞｰﾄ2006-09-01 ~ 2007-06-01; W; C |
60819KG122VW |
US $811.37 |
||
|
60870
|
60870
60870KG100 ﾋﾝｼﾞ,ﾊﾞﾂｸ ﾄﾞｱ2006-09-01 ~ 2007-06-01; W |
60870KG100 |
US $19.97 |
||
|
63100
|
63100
63101KG000 ｱｸﾁｴｰﾀ,ﾘﾔ ｹﾞｰﾄ2006-09-01 ~ 2007-06-01; W |
63101KG000 |
US $61.31 |
||
|
63112
|
63112
63112KG000 ﾊﾞﾂﾌｱ,ﾘｱ ｹﾞｰﾄ2006-09-01 ~ 2007-06-01; W |
63112KG000 |
US $1.84 |
||
|
63112
|
63112
63112KG010 ﾊﾞﾂﾌｱ,ﾘｱ ｹﾞｰﾄ2006-09-01 ~ 2007-06-01; W |
63112KG010 |
US $4.67 |
||
|
63134A
|
63134A
63134KG000 ｶﾊﾞｰ A,ﾊﾞﾂｸ ﾄﾞｱ2006-09-01 ~ 2007-06-01; W |
63134KG000 |
US $6.09 |
||
|
63176A
|
63176A
63032KG101 ﾗﾂﾁ ｱﾝﾄﾞ ｱｸﾁｴｰﾀ,ﾘﾔ ｹﾞｰﾄ2006-09-01 ~ 2007-06-01; W |
63032KG101 |
US $168.50 |
||
|
63216A
|
63216A
63216KG000 ﾌﾟﾗｸﾞ,ｴｱ ﾍﾞﾝﾄ2006-09-01 ~ 2007-06-01; W |
63216KG000 |
US $3.82 |
||
|
63252F
|
63252F
63252KG010 ｽﾍﾟｰｻ,ﾘﾔ ｹﾞｰﾄ A2006-09-01 ~ 2007-06-01; W |
63252KG010 |
US $1.56 |
||
|
63252G
|
63252G
63252KG040 ｽﾍﾟｰｻ,ﾘﾔ ｹﾞｰﾄ B2006-09-01 ~ 2007-06-01; W |
63252KG040 |
US $1.56 |
||
|
M000306
|
M000306
901000306 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ2006-09-01 ~ 2007-06-01; W |
901000306 |
US $0.71 |
||
|
Q560013
|
Q560013
904560013 TAPPING SCREW M62006-09-01 ~ 2007-06-01; W; M6 |
904560013 |
US $0.99 |
