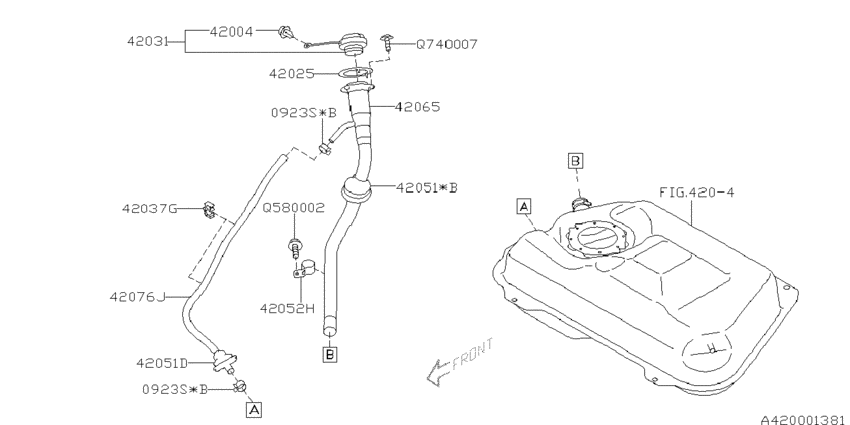

Fuel piping (ﾌｲﾗﾊﾟｲﾌﾟ; 07#; 2004-11-01~) Diagram Subaru R1
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- 07X
- drive
- F4WD
- transmission
- S/S
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0923S
|
0923S
092311502 CLIP 122006-09-01 ~ 2007-06-01; 07# |
092311502 |
US $1.27 |
||
|
0923S
|
0923S
092315500 CLAMP2006-09-01 ~ 2007-06-01; 07# |
092315500 |
US $0.85 |
||
|
42004
|
42004
42037KG050 ｸﾘﾂﾌﾟ2006-09-01 ~ 2007-06-01; 4W.07# |
42037KG050 |
US $0.71 |
||
|
42025
|
42025
42060GA081 PACKING, FILLER PIPE2006-09-01 ~ 2007-06-01; 4W.07# |
42060GA081 |
US $7.36 |
||
|
42031
|
42031
42031KG000 ﾌｲﾗ ｷﾔﾂﾌﾟ ｱｾﾝﾌﾞﾘ2006-09-01 ~ 2007-06-01; 4W.07# |
42031KG000 |
US $23.08 |
||
|
42037G
|
42037G
42037KE150 Clamp2006-09-01 ~ 2007-06-01; 4W.07# |
42037KE150 |
US $3.82 |
||
|
42051
|
42051
42051KE010 ｸﾞﾛﾒﾂﾄ2006-09-01 ~ 2007-06-01; 4W.07#; ND |
42051KE010 |
US $3.12 |
||
|
42051
|
42051
42051KG000 ｸﾞﾛﾒﾂﾄ2006-09-01 ~ 2007-06-01; 4W.07# |
42051KG000 |
US $6.80 |
||
|
42051D
|
42051D
42051KG020 ｸﾞﾛﾒﾂﾄ,ﾍﾞﾝﾁﾚｰﾀ ﾊﾟｲﾌﾟ A2006-09-01 ~ 2007-06-01; 4W.07# |
42051KG020 |
US $11.47 |
||
|
42052H
|
42052H
42052KG010 ﾌﾞﾗｹﾂﾄ,ﾌｲﾗ ﾊﾟｲﾌﾟ2006-09-01 ~ 2007-06-01; 4W.07# |
42052KG010 |
US $4.67 |
||
|
42065
|
42065
42066KG020 ﾌｲﾗ ﾊﾟｲﾌﾟ ｺﾝﾌﾟﾘｰﾄ2006-09-01 ~ 2007-06-01; 4W.07# |
42066KG020 |
US $105.78 |
||
|
42076J
|
42076J
42075KG170 ﾎｰｽ,ｴｱ ﾍﾞﾝﾄ2006-09-01 ~ 2007-06-01; 4W.07# |
42075KG170 |
US $18.41 |
||
|
Q580002
|
Q580002
904580002 BOLT2006-09-01 ~ 2007-06-01; 4W.07# |
904580002 |
US $0.42 |
||
|
Q740007
|
Q740007
904740007 ﾀﾂﾋﾟﾝｸﾞ ｽｸﾘﾕ2006-09-01 ~ 2007-06-01; 4W.07# |
904740007 |
US $0.42 |
