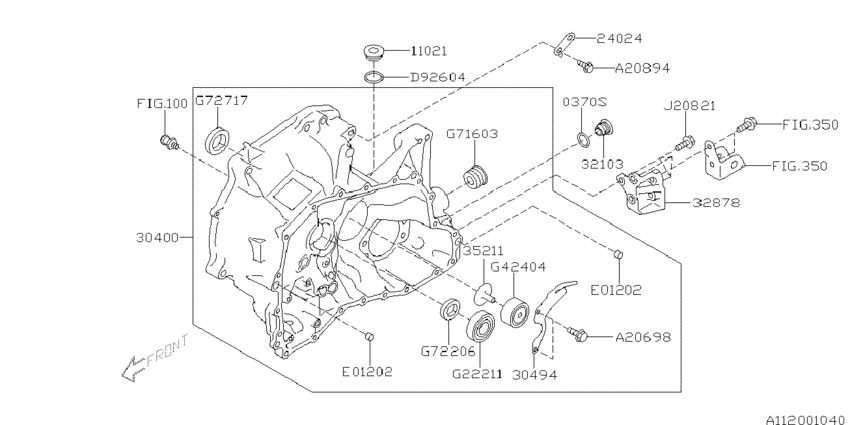

Mt, clutch housing (4W.MT; 2003-10-01~) Diagram Subaru R2
- Year
- 2003 - 2004
- Sales region
- Japan
- Engine
- 07E
- drive
- F4WD
- transmission
- MT
- grade
- I
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0370S
|
0370S
037018200 GSKTALMINIUM2004-10-01 ~ 2005-11-01; MT +CVT +S/S |
037018200 |
from US $0.30 |
||
|
11021
|
11021
11021AA010 PLUGCYL BLOCK2004-10-01 ~ 2005-11-01; 4W.MT |
11021AA010 |
from US $2.53 |
||
|
24024
|
24024
24024KB610 ｽﾃｰ,ｴﾝｼﾞﾝ ﾊｰﾈｽ2004-10-01 ~ 2005-11-01; MT |
24024KB610 |
US $3.82 |
||
|
30400
|
30400
30400KB250 ﾊｳｼﾞﾝｸﾞ ｱｾﾝﾌﾞﾘ,ｸﾗﾂﾁ2004-10-01 ~ 2005-11-01; 4W.MT |
30400KB250 |
US $505.51 |
||
|
30494
|
30494
30494KA010 ﾘﾃｰﾅ,ﾆｰﾄﾞﾙ ﾍﾞｱﾘﾝｸﾞ2004-10-01 ~ 2005-11-01; MT |
30494KA010 |
US $6.80 |
||
|
32103
|
32103
32103AA070 PLUG COMPLDRAIN2004-10-01 ~ 2005-11-01; 4W.MT |
32103AA070 |
from US $3.20 |
||
|
32878
|
32878
32878KA190 ﾌﾞﾗｹﾂﾄ,ｼﾌﾄ2004-10-01 ~ 2005-11-01; 4W.MT |
32878KA190 |
US $23.08 |
||
|
35211
|
35211
35211KA000 ｶﾞｲﾄﾞ,ｵｲﾙ2004-10-01 ~ 2005-11-01; MT |
35211KA000 |
US $1.84 |
||
|
A20698
|
A20698
800206980 ﾎﾞﾙﾄ2004-10-01 ~ 2005-11-01; MT |
800206980 |
US $0.57 |
||
|
A20894
|
A20894
800208940 BOLT8X18X182004-10-01 ~ 2005-11-01; MT; 8X18X18 |
800208940 |
from US $1.85 |
||
|
D92604
|
D92604
803926040 GASKET265X30X152004-10-01 ~ 2005-11-01; 4W.MT; 26.3X30X1.5 |
803926040 |
US $0.57 |
||
|
E01202
|
E01202
804012020 STRAIGHT PIN 12X162004-10-01 ~ 2005-11-01; MT; 12X16 |
804012020 |
US $0.99 |
||
|
G22211
|
G22211
806222110 ﾎﾞｰﾙ ﾍﾞｱﾘﾝｸﾞ2004-10-01 ~ 2005-11-01; MT; 22X50X14 |
806222110 |
US $10.76 |
||
|
G42404
|
G42404
806424040 NDLE BRG24X44X222004-10-01 ~ 2005-11-01; MT; 24X44X22 |
806424040 |
US $35.40 |
||
|
G71603
|
G71603
806716030 Oil seal (16x31x20)2004-10-01 ~ 2005-11-01; MT; 16X31X20 |
806716030 |
US $7.50 |
||
|
G72206
|
G72206
806722060 ｵｲﾙ ｼｰﾙ,22X35X72004-10-01 ~ 2005-11-01; MT |
806722060 |
US $5.38 |
||
|
G72717
|
G72717
806727170 DIFF GEAR OIL SEAL2004-10-01 ~ 2005-11-01; MT |
806727170 |
from US $1.92 |
||
|
J20821
|
J20821
808208210 BOLT8X22X162004-10-01 ~ 2005-11-01; 4W.MT; 8X22X16 |
808208210 |
US $0.99 |
