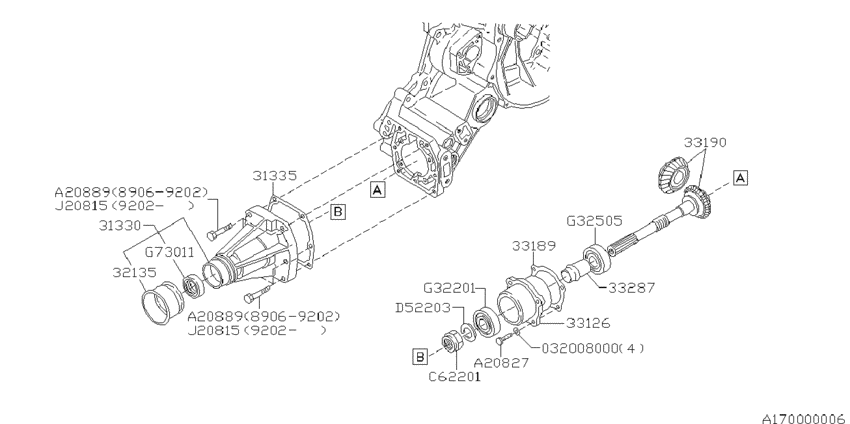

At, transfer & extension (ｴｷｽﾃﾝｼﾖﾝ; F4WD.ECVT; 1989-06-01~1992-02-01) Diagram Subaru REX
- Year
- 1989 - 1992
- Sales region
- Japan
- drive
- 4WD
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31330
|
31330
31330KA001 CASE ASSYEXT1989-06-01 ~ 1992-02-01; S.F4WD.ECVT |
31330KA001 |
US $122.48 |
||
|
31335
|
31335
31335KA030 GSKTEXT1989-06-01 ~ 1992-02-01; S.F4WD.ECVT |
31335KA030 |
US $1.84 |
||
|
32135
|
32135
32135KA000 COVERDUST1989-06-01 ~ 1992-02-01; S.F4WD.ECVT |
32135KA000 |
US $9.49 |
||
|
33126
|
33126
33126KA001 RETBRGTRANSFER1989-06-01 ~ 1992-02-01; S.F4WD.ECVT |
33126KA001 |
US $56.64 |
||
|
33189
|
33189
33189KA000 SHIMTRF HYP GEAR1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.150 |
33189KA000 |
US $1.27 |
||
|
33189
|
33189
33189KA010 SHIMTRF HYP GEAR1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.175 |
33189KA010 |
US $1.27 |
||
|
33189
|
33189
33189KA020 SHIMTRF HYP GEAR1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.200 |
33189KA020 |
US $1.27 |
||
|
33189
|
33189
33189KA030 SHIMTRF HYP GEAR1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.225 |
33189KA030 |
US $1.56 |
||
|
33189
|
33189
33189KA040 SHIMTRF HYP GEAR1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.250 |
33189KA040 |
US $1.56 |
||
|
33189
|
33189
33189KA050 SHIMTRF HYP GEAR1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.275 |
33189KA050 |
US $1.84 |
||
|
33189
|
33189
33189KA060 SHIMTRF HYP GEAR1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.300 |
33189KA060 |
US $1.84 |
||
|
33189
|
33189
33189KA070 SHIMTRF HYP GEAR1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.500 |
33189KA070 |
US $3.12 |
||
|
33189
|
33189
33189KA080 ｼﾑ,ﾄﾗﾝｽﾌｱ ﾊｲﾎﾟｲﾄﾞ ｷﾞﾔ1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.1625 |
33189KA080 |
US $1.27 |
||
|
33189
|
33189
33189KA090 ｼﾑ,ﾄﾗﾝｽﾌｱ ﾊｲﾎﾟｲﾄﾞ ｷﾞﾔ1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.1825 |
33189KA090 |
US $1.27 |
||
|
33189
|
33189
33189KA100 ｼﾑ,ﾄﾗﾝｽﾌｱ ﾊｲﾎﾟｲﾄﾞ ｷﾞﾔ1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.2125 |
33189KA100 |
US $1.56 |
||
|
33189
|
33189
33189KA110 ｼﾑ,ﾄﾗﾝｽﾌｱ ﾊｲﾎﾟｲﾄﾞ ｷﾞﾔ1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 1-3ﾏｲｾﾝﾀｸ; T=0.2375 |
33189KA110 |
US $1.56 |
||
|
33190
|
33190
33190KA020 GR SETBEVELTRF1989-06-01 ~ 1992-02-01; S.F4WD.ECVT |
33190KA020 |
US $345.50 |
||
|
33287
|
33287
435205600 SPACERBEV GR1989-06-01 ~ 1992-02-01; S.F4WD.ECVT |
435205600 |
from US $15.15 |
||
|
A20827
|
A20827
800208270 ﾎﾞﾙﾄ1989-06-01 ~ 1992-02-01; S.F4WD.ECVT |
800208270 |
US $0.57 |
||
|
A20889
|
A20889
800208890 ﾎﾞﾙﾄ1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 8X40X20 |
800208890 |
US $1.56 |
||
|
C62201
|
C62201
802622010 LOCK NUT22X131989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 22X13 |
802622010 |
from US $2.70 |
||
|
D52203
|
D52203
803522030 LK WASH22X38X21989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 22X38X2 |
803522030 |
US $5.10 |
||
|
G32201
|
G32201
806322010 TAPER ROLLER BEARING1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 22X50X19 |
806322010 |
US $27.90 |
||
|
G32505
|
G32505
806325050 TAPER ROLLER BEARING1989-06-01 ~ 1992-02-01; S.F4WD.ECVT; 25X52X19 |
806325050 |
from US $19.02 |
||
|
J20815
|
J20815
808208150 BOLT8X40X201992-02-01 ~ 1992-02-01; S.F4WD.ECVT; M/#363971-; 8X40X20 |
808208150 |
US $1.13 |
