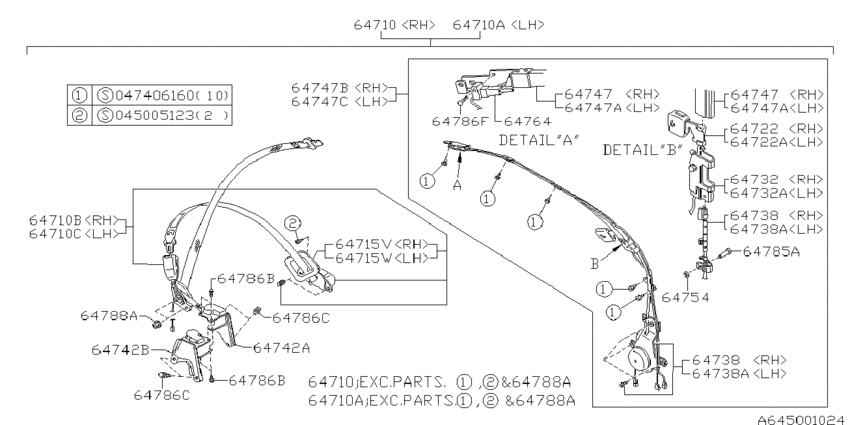

Front seat belt (2C.LE; 1993-08-01~) Diagram Subaru SVX
- Year
- 1993 - 1994
- Sales region
- U.S.A.
- Engine
- EG33D
- drive
- 2WD
- transmission
- AT
- grade
- LE
- body
- 2C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64710
|
64710
64600PA010MD
Seat belt set-shoulder,right
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64600PA010MD |
— | ||
|
64710A
|
64710A
64600PA020MD
Seat belt set-shoulder,left
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64600PA020MD |
— | ||
|
64710B
|
64710B
64600PA050MD
Seat belt set-lap,right
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64600PA050MD |
— | ||
|
64710C
|
64710C
64600PA060MD
Seat belt set-lap,left
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64600PA060MD |
— | ||
|
64715V
|
64715V
64790PA020MD
Cover-lap anchor,right
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64790PA020MD |
— | ||
|
64715W
|
64715W
64790PA030MD
Cover-lap anchor,left
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64790PA030MD |
— | ||
|
64722
|
64722
64700PA160MD
Runner assembly-right
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64700PA160MD |
— | ||
|
64722A
|
64722A
64700PA170MD
Runner assembly-left
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64700PA170MD |
— | ||
|
64732
|
64732
64700PA180
Lock device-automatic shoulder belt,rh
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA180 |
— | ||
|
64732A
|
64732A
64700PA190
Lock device-automatic shoulder belt,left
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA190 |
— | ||
|
64738
|
64738
64700PA140
Motor assembly-automatic seat-belt,right
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA140 |
— | ||
|
64738
|
64738
64700PA140
Motor assembly-automatic seat-belt,right
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA140 |
— | ||
|
64738A
|
64738A
64700PA150
Motor assembly-automatic seat-belt,left
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA150 |
— | ||
|
64738A
|
64738A
64700PA150
Motor assembly-automatic seat-belt,left
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA150 |
— | ||
|
64742A
|
64742A
64720PA110MD
Emergency locking retractor assembly-rh
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64720PA110MD |
— | ||
|
64742B
|
64742B
64720PA120MD
Emergency locking retractor assembly-lh
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64720PA120MD |
— | ||
|
64747
|
64747
64700PA120
Rail assembly-automatic seat-belt,right
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA120 |
— | ||
|
64747
|
64747
64700PA120
Rail assembly-automatic seat-belt,right
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA120 |
— | ||
|
64747A
|
64747A
64700PA130
Rail assembly-automatic seat-belt,left
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA130 |
— | ||
|
64747A
|
64747A
64700PA130
Rail assembly-automatic seat-belt,left
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA130 |
— | ||
|
64747B
|
64747B
64700PA100MD
Rail & motor assembly-auto seat belt,rh
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64700PA100MD |
— | ||
|
64747C
|
64747C
64700PA110MD
Rail & motor assembly-auto seat belt,lh
1993-08-01 ~ 1994-06-01; GRAY; 2C.LE |
64700PA110MD |
— | ||
|
64754
|
64754
64790PA100
E-ring automatic shoulder belt
1993-08-01 ~ 1994-06-01; 2C.LE |
64790PA100 |
— | ||
|
64764
|
64764
64700PA200
Limit switch
1993-08-01 ~ 1994-06-01; 2C.LE |
64700PA200 |
— | ||
|
64785A
|
64785A
64790PA110
Pin-automatic shoulder belt
1993-08-01 ~ 1994-06-01; 2C.LE |
64790PA110 |
— | ||
|
64786B
|
64786B
64790PA080
Bolt & washer assembly-belt,front
1993-08-01 ~ 1994-06-01; 2C.LE |
64790PA080 |
— | ||
|
64786B
|
64786B
64790PA080
Bolt & washer assembly-belt,front
1993-08-01 ~ 1994-06-01; 2C.LE |
64790PA080 |
— | ||
|
64786C
|
64786C
64790PA070 BOLT ELR1993-08-01 ~ 1994-06-01; 2C.LE |
64790PA070 |
US $1.27 |
||
|
64786C
|
64786C
64790PA070 BOLT ELR1993-08-01 ~ 1994-06-01; 2C.LE |
64790PA070 |
US $1.27 |
||
|
64786F
|
64786F
64790PA090
Screw
1993-08-01 ~ 1994-06-01; 2C.LE |
64790PA090 |
— | ||
|
64788A
|
64788A
64789AA060 ANCHOR NUT 4D1993-08-01 ~ 1994-06-01; 2C.LE |
64789AA060 |
US $2.97 |
||
|
045005123
|
045005123
045005123 TAPPING SCREW |
045005123 |
US $0.14 |
||
|
047406160
|
047406160
047406160 FT TAPPING SCREW |
047406160 |
US $0.28 |
