Component List SVX
At, high clutch (2C; 1992-03-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
31521	31521 31521AA020 SPRRTN PISTON 1992-03-01 ~ 1994-01-01; 2C	31521AA020	US $0.57
31532	31532 31532AA050 PLATE ASSYDRIVE 1992-03-01 ~ 1994-01-01; 2C	31532AA050	US $20.53
31536	31536 31536AA040 PLATEDRIVEN 1992-03-01 ~ 1994-01-01; 2C	31536AA040	US $18.55
31537	31537 31537AA000 PISTON AYCLUTCHHI 1992-03-01 ~ 1994-01-01; 2C	31537AA000	US $60.60
31540	31540 31540AA011 CLUTCH ASSYHIGH 1992-03-01 ~ 1992-09-01; 2C; -27	31540AA011	—
31540	31540 31540AA012 CLUTCH ASSYHIGH 1992-03-01 ~ 1994-01-01; 2C; 27- M/#463970-	31540AA012	US $337.01
31541	31541 31541AA001 DRUM AYCCH HIGH 1992-03-01 ~ 1992-09-01; 2C; -27	31541AA001	US $250.63
31541	31541 31541AA030 DRUM AYCCH HI 1992-03-01 ~ 1994-01-01; 2C; 27- M/#463970-	31541AA030	US $250.63
31550	31550 31550AA000 HUB ASSYCLUTCH HI 1992-03-01 ~ 1994-01-01; 2C; -37	31550AA000	US $305.86
31550	31550 31550AA020 HUB AYCLUTCHHI 1992-10-01 ~ 1994-01-01; 2C; 38- M/#633658-	31550AA020	US $337.01
31552	31552 31552AA030 RETSPR 1992-03-01 ~ 1994-01-01; 2C	31552AA030	US $5.81
31567	31567 31567AA190 PLATERET 1992-03-01 ~ 1994-01-01; 2C; T=3.6MM; T=3.6	31567AA190	US $51.54
31567	31567 31567AA200 PLATERET 1992-03-01 ~ 1994-01-01; 2C; T=3.8MM; T=3.8	31567AA200	US $51.54
31567	31567 31567AA210 PLATERET 1992-03-01 ~ 1994-01-01; 2C; T=4.0MM; T=4.0	31567AA210	US $51.54
31567	31567 31567AA220 PLATERET 1992-03-01 ~ 1994-01-01; 2C; T=4.2MM; T=4.2	31567AA220	US $51.54
31567	31567 31567AA230 PLATERET 1992-03-01 ~ 1994-01-01; 2C; T=4.4MM; T=4.4	31567AA230	US $51.54
31567	31567 31567AA240 PLATERET 1992-03-01 ~ 1994-01-01; 2C; T=4.6MM; T=4.6	31567AA240	US $51.54
31567	31567 31567AA250 PLATERET 1992-03-01 ~ 1994-01-01; 2C; T=4.8MM; T=4.8	31567AA250	US $51.54
31567	31567 31567AA340 PLATERET 1992-03-01 ~ 1994-01-01; 2C; T=3.4MM; T=3.4	31567AA340	US $47.01
31616A	31616A 31516AA010 SEALLATHE CUT RING 1992-03-01 ~ 1994-01-01; 2C	31516AA010	US $9.63
31616D	31616D 31516AA040 SEALLATHE CUT RING 1992-03-01 ~ 1994-01-01; 2C	31516AA040	US $4.96
F05401	F05401 805054010 SNAPRINGOTR 545 1992-03-01 ~ 1994-01-01; 2C	805054010	US $3.54
F10012	F10012 805100120 SNAPRINGINR D 1992-03-01 ~ 1994-01-01; 2C	805100120	US $6.66
G53602	G53602 806536020 CYLINDRICAL RLR BRG 1992-03-01 ~ 1994-01-01; 2C; -37; T=3.8; BG	806536020	from US $8.29
G53701	G53701 806537010 CYLINDRICAL RLR BRG 1992-10-01 ~ 1994-01-01; 2C; 38- M/#633658-	806537010	US $20.25

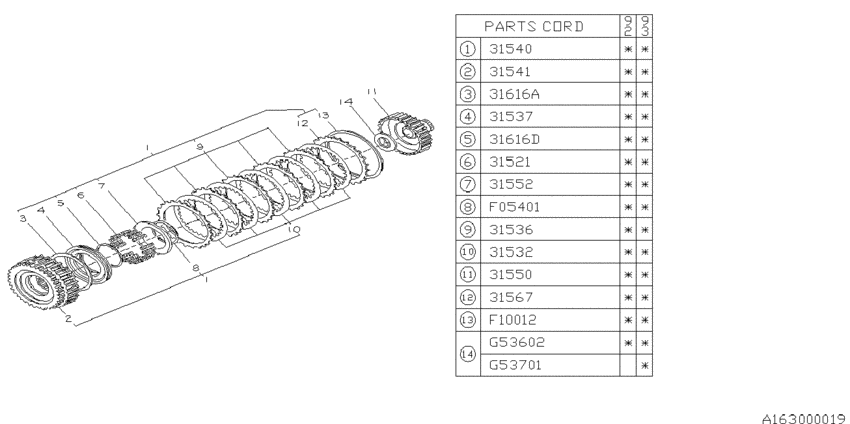

At, high clutch (2C; 1992-03-01~) Diagram Subaru SVX Europe 1089085-119032

At, high clutch (2C; 1992-03-01~) Diagram Subaru SVX Europe 1089085-119032
