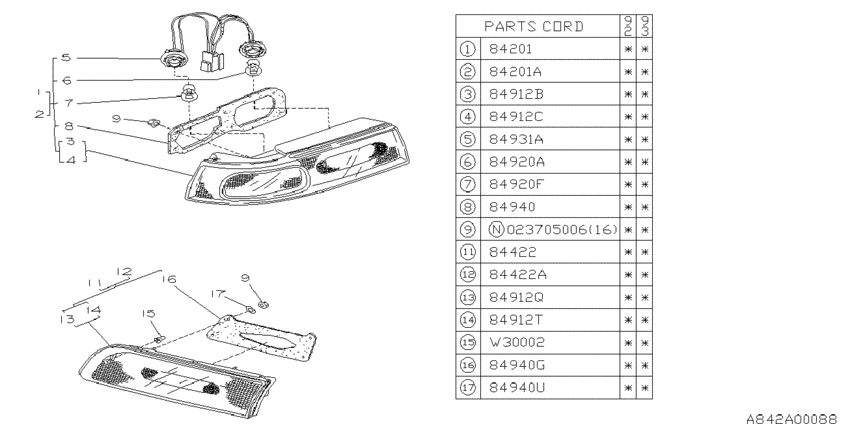

Lamp (rear) (REAR COMBI LAMP & SIDE COVER; 2C.(LHD+RHD+AUST); 1992-03-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- drive
- 4WD
- body
- 2C
- Destinat
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84201
|
84201
84201PA040
Lamp assembly-rear combination right
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84201PA040 |
— | ||
|
84201A
|
84201A
84201PA050
Lamp assembly-rear combination left
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84201PA050 |
— | ||
|
84422
|
84422
84421PA040
Side cover assembly,rear right
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84421PA040 |
— | ||
|
84422A
|
84422A
84421PA050
Side cover assembly,rearleft
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84421PA050 |
— | ||
|
84912B
|
84912B
84912PA320
Lens & body-rear combination lamp right
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84912PA320 |
— | ||
|
84912C
|
84912C
84912PA330
Lens & body-rear combination lamp left
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84912PA330 |
— | ||
|
84912Q
|
84912Q
84912PA350
Lens & body-rear side marker right
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84912PA350 |
— | ||
|
84912T
|
84912T
84912PA360
Lens & body-rear side marker left
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84912PA360 |
— | ||
|
84920A
|
84920A
684102420 BULB12V21W F COMB1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST); TAIL=2,FOG=2; 12V-21W |
684102420 |
from US $3.05 |
||
|
84920A
|
84920A
784920080 BULB1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST); LICENSE LAMP; 12V-5W |
784920080 |
from US $1.20 |
||
|
84920F
|
84920F
684102430 BULB12V215W1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST); STOP&TAIL; 12V-21/5W |
684102430 |
from US $2.89 |
||
|
84931A
|
84931A
84931PA000 SOCKET COMPL1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84931PA000 |
US $5.81 |
||
|
84940
|
84940
84940PA000 PACKING1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84940PA000 |
US $7.93 |
||
|
84940G
|
84940G
84940PA010 PACKIGN1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84940PA010 |
US $14.02 |
||
|
84940U
|
84940U
84940PA020 SHEET PACKING1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84940PA020 |
US $0.28 |
||
|
W30002
|
W30002
909300020 GROMMET1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
909300020 |
US $1.56 |
||
|
023705006
|
023705006
023705006 FLANGE NUT |
023705006 |
US $0.28 |
