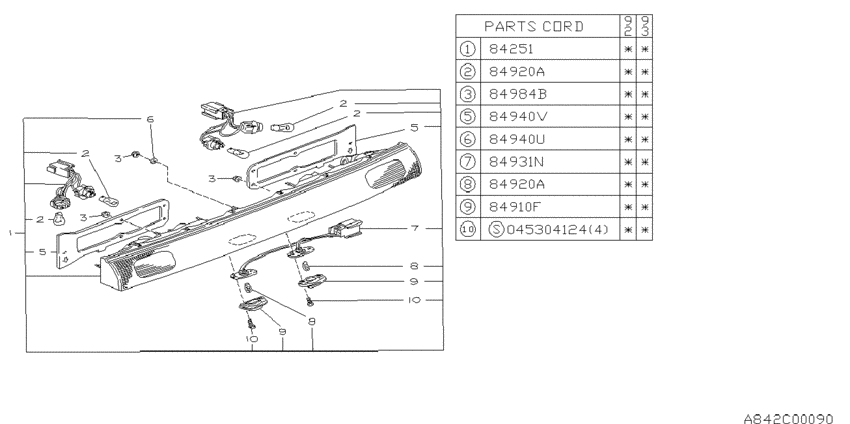

Lamp (rear) (2C.(LHD+RHD+AUST); 1992-03-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- drive
- 4WD
- body
- 2C
- Destinat
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84251
|
84251
84251PA020
Lamp assembly-rear finisher
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD); EUR. |
84251PA020 |
— | ||
|
84251
|
84251
84251PA030
Lamp assembly-rear finisher
1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST); GEN.&AUST. |
84251PA030 |
— | ||
|
84910F
|
84910F
84910PA010 LENSLL1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84910PA010 |
US $6.09 |
||
|
84920A
|
84920A
684102420 BULB12V21W F COMB1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST); TAIL=2,FOG=2; 12V-21W |
684102420 |
from US $3.05 |
||
|
84920A
|
84920A
784920080 BULB1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST); LICENSE LAMP; 12V-5W |
784920080 |
from US $1.20 |
||
|
84920A
|
84920A
684102420 BULB12V21W F COMB1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST); TAIL=2,FOG=2; 12V-21W |
684102420 |
from US $3.05 |
||
|
84920A
|
84920A
784920080 BULB1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST); LICENSE LAMP; 12V-5W |
784920080 |
from US $1.20 |
||
|
84931N
|
84931N
84931PA080 SOCKET COMPLL1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84931PA080 |
US $8.50 |
||
|
84940U
|
84940U
84940PA020 SHEET PACKING1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84940PA020 |
US $0.28 |
||
|
84940V
|
84940V
84940PA040 PACKING1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84940PA040 |
US $6.66 |
||
|
84984B
|
84984B
84958PA000 FLANGE NUT1992-03-01 ~ 1994-01-01; 2C.(LHD+RHD+AUST) |
84958PA000 |
US $0.42 |
||
|
045304124
|
045304124
045304124 TAPPING SCREW |
045304124 |
US $0.14 |
