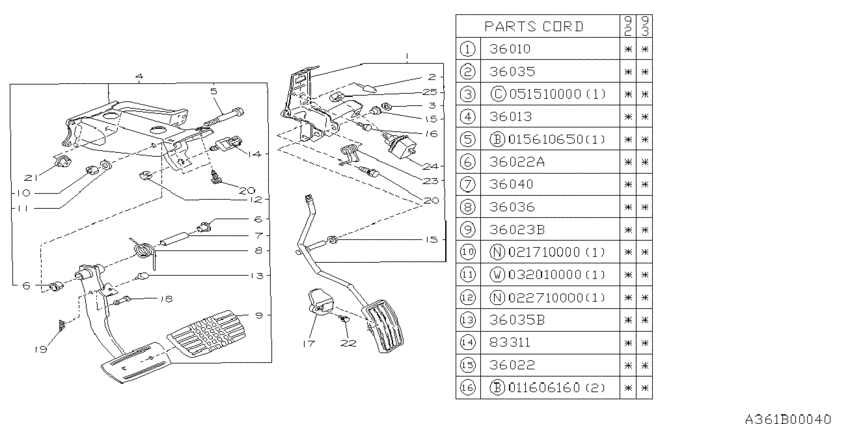

Pedal system (at) (LH; 2C.(LHD+GCC); 1992-03-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- drive
- 4WD
- body
- 2C
- Destinat
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36010
|
36010
36010PA050
Pedal assembly-accelerator
1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC); K0&G.C.C. |
36010PA050 |
— | ||
|
36010
|
36010
36010PA060
Pedal assembly-accelerator
1992-03-01 ~ 1994-01-01; <LH>2C.LHD; EC.E2&E5 |
36010PA060 |
— | ||
|
36013
|
36013
36004PA080
Pedal complete-brake
1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC); -2Z |
36004PA080 |
— | ||
|
36013
|
36013
36004PA081
Pedal complete-brake
1992-10-01 ~ 1994-01-01; <LH>2C.(LHD+GCC); 31- |
36004PA081 |
— | ||
|
36022
|
36022
36023AA000
BUSHING ACCEL
1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC) |
36023AA000 |
— | ||
|
36022A
|
36022A
736013000 BUSHING PEDAL1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC) |
736013000 |
from US $1.27 |
||
|
36023B
|
36023B
36024AA010 PAD AT PEDAL1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC) |
36024AA010 |
from US $2.59 |
||
|
36035
|
36035
36035KA010 ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ A1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC) |
36035KA010 |
US $2.55 |
||
|
36035B
|
36035B
36036AA050
ｽﾄﾂﾊﾟ,ﾍﾟﾀﾞﾙ C
1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC) |
36036AA050 |
— | ||
| replacement | |||||
|
36035B
|
36035B
36036AA080 Stopper-pedal, C1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC) |
36036AA080 |
from US $0.44 |
||
|
36036
|
36036
36037AA000 SPRING BRAKE1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC) |
36037AA000 |
US $3.68 |
||
|
36040
|
36040
36041AA000 SPACER PEDAL1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC) |
36041AA000 |
US $6.80 |
||
|
83311
|
83311
83370AA000 STOP BRAKE SW1992-03-01 ~ 1994-01-01; <LH>2C.(LHD+GCC) |
83370AA000 |
US $38.80 |
||
|
011606160
|
011606160
011606160 BOLTWASHER AY |
011606160 |
US $0.14 |
||
|
015610650
|
015610650
015610650 BOLT |
015610650 |
US $1.56 |
||
|
021710000
|
021710000
021710000 NUT |
021710000 |
US $0.28 |
||
|
022710000
|
022710000
022710000
NUT
|
022710000 |
— | ||
| replacement | |||||
|
022710000
|
022710000
022810000 NUT |
022810000 |
from US $0.42 |
||
|
032010000
|
032010000
032010000 SPRING WASHER |
032010000 |
US $0.14 |
||
|
051510000
|
051510000
051510000 CLIP |
051510000 |
US $0.14 |
||
