Component List SVX
Cooling unit (2C.(LH+S0); 1993-09-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
73176	73176 73039AA080 Seal O-ring 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/596193-8800; ZX	73039AA080	from US $0.85
73182	73182 73056PA040 CLAMP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.1; ZXL/580524-0801; ZX	73056PA040	US $0.85
73182	73182 73056PA070 CLAMP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.2; ZXL/594113-0800; ZX	73056PA070	US $0.57
73182	73182 73056PA040 CLAMP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.1; ZXL/580524-0801; ZX	73056PA040	US $0.85
73182	73182 73056PA070 CLAMP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.2; ZXL/594113-0800; ZX	73056PA070	US $0.57
73431Q	73431Q 73052PA180 Pipe-expansion valve,cooling 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/534053-0520	73052PA180	—
73441	73441 73064PA020 Hose-drain 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	73064PA020	—
73485	73485 73091PA040 TAPPING SCREW 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/592022-3700; ZX	73091PA040	US $0.57
73510	73510 73060PA071 Cooling unit 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	73060PA071	—
73523	73523 73060PA090 Evaporator assembly-cooling 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/503702-1400	73060PA090	—
73525C	73525C 73062PA000 Case-cooling,upper 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	73062PA000	—
73525D	73525D 73062PA010 Case-cooling,lower 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	73062PA010	—
73531	73531 73068PA001 EXPANSION VALVE 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZX	73068PA001	US $72.22
73533	73533 73072PA000 POWER TRANSISTO 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/582670-1900; ZX	73072PA000	US $93.46
73542	73542 73069AA060 INSULATOR 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.1; ZXL/595324-2600; ZX	73069AA060	US $1.13
73542	73542 73069PA010 INSULATOR 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.2; ZXL/583032-2300; ZX	73069PA010	US $0.85
73542	73542 73069AA060 INSULATOR 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.1; ZXL/595324-2600; ZX	73069AA060	US $1.13
73542	73542 73069PA010 INSULATOR 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.2; ZXL/583032-2300; ZX	73069PA010	US $0.85
73548	73548 73069AA020 Seal-cooling 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	73069AA020	—
73548	73548 73069AA050 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZX	73069AA050	US $1.56
73548	73548 73069PA030 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/534230-9801; ZX	73069PA030	US $4.67
73548	73548 73069PA040 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/534230-9901; ZX	73069PA040	US $4.67
73548	73548 73069AA020 Seal-cooling 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	73069AA020	—
73548	73548 73069AA050 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZX	73069AA050	US $1.56
73548	73548 73069PA030 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/534230-9801; ZX	73069PA030	US $4.67
73548	73548 73069PA040 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/534230-9901; ZX	73069PA040	US $4.67
73548	73548 73069AA020 Seal-cooling 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	73069AA020	—
73548	73548 73069AA050 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZX	73069AA050	US $1.56
73548	73548 73069PA030 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/534230-9801; ZX	73069PA030	US $4.67
73548	73548 73069PA040 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/534230-9901; ZX	73069PA040	US $4.67
73548	73548 73069AA020 Seal-cooling 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	73069AA020	—
73548	73548 73069AA050 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZX	73069AA050	US $1.56
73548	73548 73069PA030 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/534230-9801; ZX	73069PA030	US $4.67
73548	73548 73069PA040 SEAL 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/534230-9901; ZX	73069PA040	US $4.67
73552	73552 73026PA110 BRACKET 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/537042-6401; ZX	73026PA110	US $3.12
73584	73584 73056AA100 CLIP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.1; ZXL/592024-6201; ZX	73056AA100	US $0.28
73584	73584 73056AA120 CLIP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.2; ZX	73056AA120	US $1.27
73584	73584 73056AA100 CLIP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.1; ZXL/592024-6201; ZX	73056AA100	US $0.28
73584	73584 73056AA120 CLIP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.2; ZX	73056AA120	US $1.27
73584	73584 73056AA100 CLIP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.1; ZXL/592024-6201; ZX	73056AA100	US $0.28
73584	73584 73056AA120 CLIP 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.2; ZX	73056AA120	US $1.27
73585	73585 73039PA000 GASKET 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/581510-1200; ZX	73039PA000	US $1.42
73587	73587 73065PA050 Grommet 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/580591-5400	73065PA050	—
73587A	73587A 73065PA020 GROMMET DRAIN 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZXL/580591-0100; ZX	73065PA020	US $1.98
73730C	73730C 73084PA020 SENSOR 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.1; ZXL/582621-5800; ZX	73084PA020	US $19.82
73730C	73730C 73084PA040 SENSOR 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.2; ZXL/582621-8900; ZX	73084PA040	US $24.07
73730C	73730C 73084PA020 SENSOR 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.1; ZXL/582621-5800; ZX	73084PA020	US $19.82
73730C	73730C 73084PA040 SENSOR 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); NO.2; ZXL/582621-8900; ZX	73084PA040	US $24.07
73772	73772 73090PA020 CAUTION PLATE 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); ZX	73090PA020	US $2.97
M000141	M000141 901000141 FLANGE BOLT 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	901000141	US $0.57
M000141	M000141 901000141 FLANGE BOLT 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	901000141	US $0.57
043105140	043105140 043105140 SCREW	043105140	US $0.14

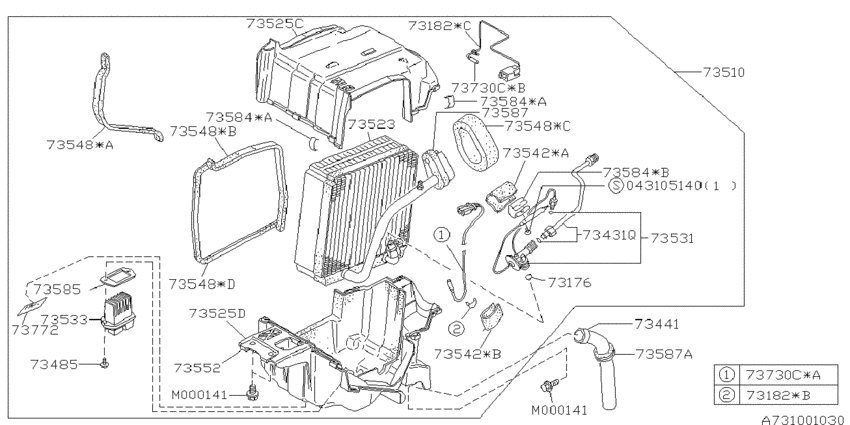

Cooling unit (2C.(LH+S0); 1993-09-01~) Diagram Subaru SVX Europe 1089624-119037

Cooling unit (2C.(LH+S0); 1993-09-01~) Diagram Subaru SVX Europe 1089624-119037
