Component List SVX
Front door parts (latch & handle) (2C; 1993-09-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
61057B	61057B 62166PA000 LINK KNOB SAFAYRH 1993-09-01 ~ 1994-10-01; 2C	62166PA000	US $9.49
61057C	61057C 62166PA010 LINK KNOB SAFAYLH 1993-09-01 ~ 1994-10-01; 2C	62166PA010	US $9.49
61066	61066 62153PA000 CLIP HARNESS 1993-09-01 ~ 1994-10-01; 2C; C	62153PA000	US $2.69
61066H	61066H 62151PA000 PANEL CLIP 1993-09-01 ~ 1994-10-01; 2C; C	62151PA000	US $6.09
61066H	61066H 62151PA000 PANEL CLIP 1993-09-01 ~ 1994-10-01; 2C; C	62151PA000	US $6.09
61134G	61134G 62180PA000ML ｶﾊﾞｰ,ﾉﾌﾞｾﾌﾃｲ 1993-09-01 ~ 1994-10-01; OFF BLACK; 2C	62180PA000ML	US $5.95
61160B	61160B 62150PA410RJ Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; RED; 2C.(LH+S0); C	62150PA410RJ	—
61160B	61160B 62150PA410RN Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; CRIMSON MICA; 2C.(LH+S0); C	62150PA410RN	—
61160B	61160B 62150PA410SG Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; LIGHT SILVER M; 2C.(LH+S0); C	62150PA410SG	—
61160B	61160B 62150PA410VE Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; BLACK MICA; 2C.(LH+S0); C	62150PA410VE	—
61160B	61160B 62150PA410WJ Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; WHITE MICA; 2C.(LH+S0); C	62150PA410WJ	—
61160B	61160B 62150PA410RJ Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; RED; 2C.(LH+S0); C	62150PA410RJ	—
61160B	61160B 62150PA410RN Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; CRIMSON MICA; 2C.(LH+S0); C	62150PA410RN	—
61160B	61160B 62150PA410SG Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; LIGHT SILVER M; 2C.(LH+S0); C	62150PA410SG	—
61160B	61160B 62150PA410VE Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; BLACK MICA; 2C.(LH+S0); C	62150PA410VE	—
61160B	61160B 62150PA410WJ Handle assembly-front door outer right 1993-09-01 ~ 1994-10-01; WHITE MICA; 2C.(LH+S0); C	62150PA410WJ	—
61160C	61160C 62150PA420RJ Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; RED; 2C.(LH+S0); C	62150PA420RJ	—
61160C	61160C 62150PA420RN Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; CRIMSON MICA; 2C.(LH+S0); C	62150PA420RN	—
61160C	61160C 62150PA420SG Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; LIGHT SILVER M; 2C.(LH+S0); C	62150PA420SG	—
61160C	61160C 62150PA420VE Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; BLACK MICA; 2C.(LH+S0); C	62150PA420VE	—
61160C	61160C 62150PA420WJ Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; WHITE MICA; 2C.(LH+S0); C	62150PA420WJ	—
61160C	61160C 62150PA420RJ Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; RED; 2C.(LH+S0); C	62150PA420RJ	—
61160C	61160C 62150PA420RN Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; CRIMSON MICA; 2C.(LH+S0); C	62150PA420RN	—
61160C	61160C 62150PA420SG Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; LIGHT SILVER M; 2C.(LH+S0); C	62150PA420SG	—
61160C	61160C 62150PA420VE Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; BLACK MICA; 2C.(LH+S0); C	62150PA420VE	—
61160C	61160C 62150PA420WJ Handle assembly-front door outer left 1993-09-01 ~ 1994-10-01; WHITE MICA; 2C.(LH+S0); C	62150PA420WJ	—
61174	61174 62164PA000ML KNOB SAF ASSY 1993-09-01 ~ 1994-10-01; OFF BLACK; 2C	62164PA000ML	US $9.91
61176D	61176D 62133PA120 Latch & switch assembly-front,right 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	62133PA120	—
61176E	61176E 62133PA150 Latch & switch assembly-front,left 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	62133PA150	—
61224	61224 62154PA000 Remote assembly-door,right 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	62154PA000	—
61224A	61224A 62154PA030 Remote assembly-door,left 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	62154PA030	—
61228B	61228B 62162PA000 Rod-remote,right 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	62162PA000	—
61228C	61228C 62162PA030 Rod-remote,left 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	62162PA030	—
61264	61264 62135PA000 STRIKER 1993-09-01 ~ 1994-10-01; 2C	62135PA000	US $18.55
63067A	63067A 760119000 SCREW GROMMET 1993-09-01 ~ 1994-10-01; 2C	760119000	US $0.57
63067A	63067A 760119000 SCREW GROMMET 1993-09-01 ~ 1994-10-01; 2C	760119000	US $0.57
63067A	63067A 760119000 SCREW GROMMET 1993-09-01 ~ 1994-10-01; 2C	760119000	US $0.57
88021	88021 88021PA010 Buzzer-key less entry 1993-09-01 ~ 1994-10-01; 2C.(LH+S0)	88021PA010	—
88035	88035 88035PA060 Switch-key less entry 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); C	88035PA060	—
88035C	88035C 88035PA080 Receiver-key less right 1993-09-01 ~ 1994-10-01; 2C.(LH+S0); C	88035PA080	—
Q100024	Q100024 904100024 ｽｸﾘﾕ,ｶｳﾝﾀｻﾝｸﾍﾂﾄﾞ 1993-09-01 ~ 1994-04-01; 2C	904100024	US $1.27
Q100028	Q100028 904100028 SCREW 1994-05-01 ~ 1994-10-01; 2C	904100028	US $0.42
Q21003	Q21003 904210030 ｽｸﾘﾕ,ｵｰﾊﾞﾙﾍﾂﾄﾞ 1993-09-01 ~ 1994-10-01; 2C	904210030	US $0.57
	replacement
Q21003	Q21003 904210036 SCREW OVAL M6X19 1993-09-01 ~ 1994-10-01; 2C	904210036	US $0.57
Q560005	Q560005 904560005 TAPPING SCREW 1993-09-01 ~ 1994-10-01; 2C; C	904560005	—
Q560005	Q560005 904560005 TAPPING SCREW 1993-09-01 ~ 1994-10-01; 2C; C	904560005	—
W205055	W205055 909205055 ROD HOLDERRMT 1993-09-01 ~ 1994-10-01; 2C	909205055	US $1.27
010106106	010106106 010106106 FLANGE BOLT	010106106	US $0.14
010106106	010106106 010106106 FLANGE BOLT	010106106	US $0.14
045006120	045006120 045006120 TAPPING SCREW	045006120	US $0.14
045006120	045006120 045006120 TAPPING SCREW	045006120	US $0.14
045106120	045106120 045106120 TAPPING SCREW	045106120	US $0.28
047406160	047406160 047406160 FT TAPPING SCREW	047406160	US $0.28

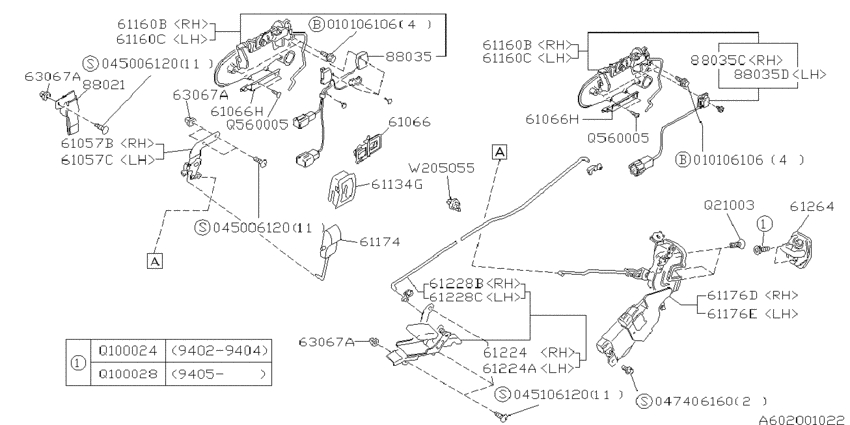

Front door parts (latch & handle) (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089581-119037

Front door parts (latch & handle) (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089581-119037
