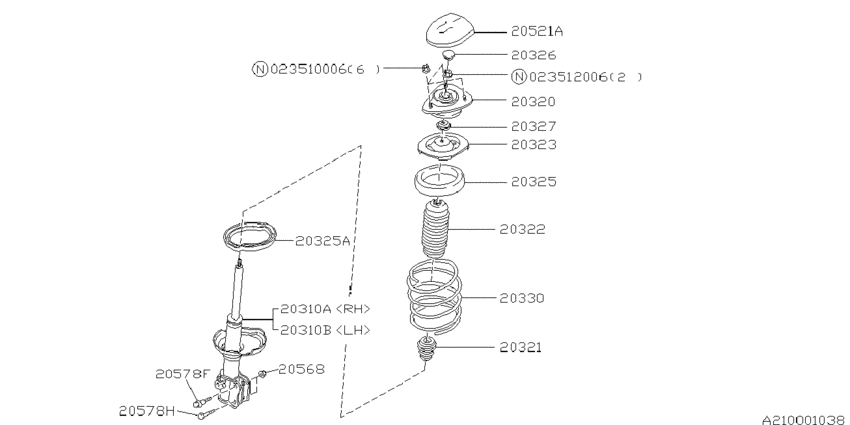

Front shock absorber (2C; 1993-09-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- Engine
- EG33D
- drive
- F4WD
- transmission
- AT
- body
- 2C
- Destinat
- S0
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20310A
|
20310A
20311PA001 STRUT COMPLETE-FRONT RIGHT1993-09-01 ~ 1994-10-01; 2C.(S0+A0) |
20311PA001 |
US $362.50 |
||
|
20310B
|
20310B
20311PA011 STRUT COMPLETE-FRONT LEFT1993-09-01 ~ 1994-10-01; 2C.(S0+A0) |
20311PA011 |
US $356.83 |
||
|
20320
|
20320
20320PA001 STRUTMTGCOMPLF1993-09-01 ~ 1994-09-01; 2C |
20320PA001 |
US $105.63 |
||
|
20320
|
20320
20320PA010 STRUT MTG COMPL F1994-10-01 ~ 1994-10-01; 2C |
20320PA010 |
US $105.63 |
||
|
20321
|
20321
20321PA010
HELPER F
1993-09-01 ~ 1994-10-01; 2C |
20321PA010 |
— | ||
|
20322
|
20322
20322PA000
DUST COVER F
1993-09-01 ~ 1994-10-01; 2C |
20322PA000 |
— | ||
|
20323
|
20323
20323PA000 SPRING SEAT UPR1993-09-01 ~ 1994-10-01; 2C |
20323PA000 |
US $19.68 |
||
|
20325
|
20325
20325PA000 RUBBER ST UPRF1993-09-01 ~ 1994-10-01; 2C |
20325PA000 |
US $15.43 |
||
|
20325A
|
20325A
20325PA100 RBBER ST LWRF1993-09-01 ~ 1994-10-01; 2C |
20325PA100 |
US $14.73 |
||
|
20326
|
20326
20326AA111 DUST SEAL F STRUT1993-09-01 ~ 1994-10-01; 2C |
20326AA111 |
US $4.96 |
||
|
20327
|
20327
20326AA000 SPACER STRUT F CIL1993-09-01 ~ 1994-10-01; 2C |
20326AA000 |
from US $2.55 |
||
|
20330
|
20330
20331PA000 COIL SPRING F 9331993-09-01 ~ 1994-10-01; 2C.(LH+RH+S0) |
20331PA000 |
US $158.45 |
||
|
20330
|
20330
20331PA020
Coil spring-front
1996-10-01 ~ 1996-12-01; 2C.A0 |
20331PA020 |
— | ||
|
20521A
|
20521A
20523PA000 CAP STRUT MTG F1993-09-01 ~ 1994-10-01; 2C |
20523PA000 |
US $6.80 |
||
|
20568
|
20568
20550AA010 SELF LOCK NUT M141993-09-01 ~ 1994-10-01; 2C |
20550AA010 |
from US $2 |
||
|
20578F
|
20578F
20540AA090 ADJUSTING BOLT M141993-09-01 ~ 1994-10-01; 2C |
20540AA090 |
from US $3.46 |
||
|
20578H
|
20578H
20540PA010 FLANGE BOLT STRT M141993-09-01 ~ 1994-10-01; 2C |
20540PA010 |
US $8.50 |
||
|
023510006
|
023510006
023510006 SELF LOCK NUT |
023510006 |
US $1.84 |
||
|
023512006
|
023512006
023512006 SELF LOCK NUT |
023512006 |
US $2.69 |
