Component List SVX
Fuel pipe (RETURN; EG33D; 1993-09-01~1995-10-01)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
14774	14774 14774AA271 VALVE ASSYSOL 1996-10-01 ~ 1996-12-01; EG33D.A0; NO.1,A0; ND	14774AA271	US $61.17
14774	14774 14774AA370 VALVE AY SOL 1993-09-01 ~ 1994-03-01; EG33D; NO.2; ND	14774AA370	US $67.26
14774	14774 14774AA371 VALVE ASSYSOL 1994-04-01 ~ 1994-10-01; EG33D; NO.2; ND	14774AA371	US $74.06
16102	16102 16102AA020 VLV AYDUTY SOL 1993-09-01 ~ 1994-10-01; EG33D	16102AA020	US $132.68
16103	16103 16103AA010 TANKSURGE 1993-09-01 ~ 1994-10-01; EG33D	16103AA010	US $44.75
16195	16195 16195AA030 VALVECHECK 1993-09-01 ~ 1994-10-01; EG33D	16195AA030	US $19.54
17543	17543 17543AA071 PIPE AYFUEL RET 1993-09-01 ~ 1994-10-01; EG33D	17543AA071	US $121.07
17595	17595 17595AA000 ｼｰﾙ O ﾘﾝｸﾞ,ﾌﾕｴﾙﾊﾟｲﾌﾟ 1993-09-01 ~ 1994-10-01; EG33D	17595AA000	from US $0.65
17595	17595 17595AA000 ｼｰﾙ O ﾘﾝｸﾞ,ﾌﾕｴﾙﾊﾟｲﾌﾟ 1993-09-01 ~ 1994-10-01; EG33D	17595AA000	from US $0.65
A50635	A50635 800506350 BOLT & WASHER ASSEMBLY (6X13X13) 1993-09-01 ~ 1994-10-01; EG33D; 6X13X13	800506350	US $0.42
H204221	H204221 807204221 HOSE4X9 1993-09-01 ~ 1994-10-01; EG33D	807204221	—
H503112	H503112 807503112 HOSE35X75 1993-09-01 ~ 1994-10-01; EG33D	807503112	—
H503211	H503211 807503211 HOSE35X75X32X3 1993-09-01 ~ 1994-10-01; EG33D	807503211	from US $3.35
H503211	H503211 807503211 HOSE35X75X32X3 1993-09-01 ~ 1994-10-01; EG33D	807503211	from US $3.35
H50336	H50336 807503360 HOSE35X75X37 1993-09-01 ~ 1994-10-01; EG33D	807503360	—
H50344	H50344 807503440 HOSE35X75X170 1993-09-01 ~ 1994-10-01; EG33D	807503440	US $12.04
H504442	H504442 807504442 HOSE4X9 1993-09-01 ~ 1994-10-01; EG33D	807504442	—
01040812G	01040812G 01040812G FLANGE BOLT	01040812G	US $0.42
01100620A	01100620A 01100620A BOLT WASHER ASSY	01100620A	US $0.28
01160514A	01160514A 01160514A BOLT WASH AY	01160514A	—
01160514A	01160514A 01160514A BOLT WASH AY	01160514A	—

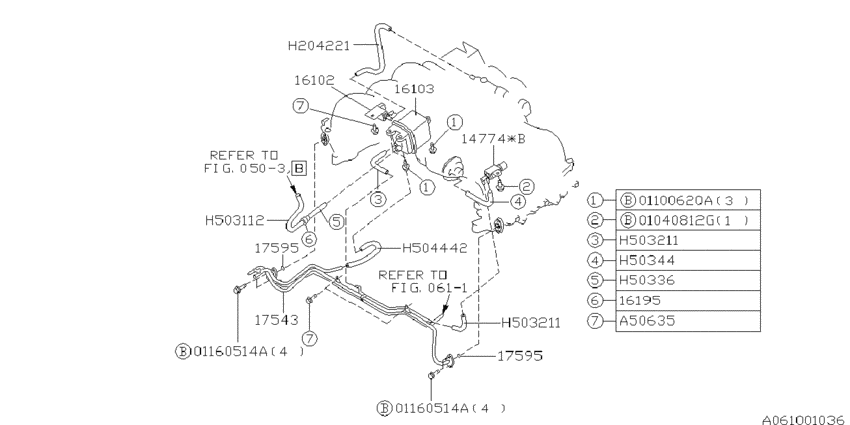

Fuel pipe (RETURN; EG33D; 1993-09-01~1995-10-01) Diagram Subaru SVX Europe 1089442-119037

Fuel pipe (RETURN; EG33D; 1993-09-01~1995-10-01) Diagram Subaru SVX Europe 1089442-119037
