Component List SVX
Rear brake (2C; 1993-09-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
26238	26238 26239AA000 BLEEDER SCREW 1993-09-01 ~ 1994-10-01; 2C.(S0+A0)	26239AA000	US $6.80
26241	26241 625205070 CAPBLDR 1993-09-01 ~ 1994-10-01; 2C.(S0+A0)	625205070	US $0.99
26625	26625 26226PA020 SUPPORT 1993-09-01 ~ 1994-10-01; 2C; I*	26226PA020	US $63.15
26631	26631 26231AA000 LOCK PIN SLEEVE 1993-09-01 ~ 1994-10-01; 2C	26231AA000	US $14.02
26632	26632 26232AA020 PAD CLIP 1993-09-01 ~ 1994-10-01; 2C; I*	26232AA020	US $4.11
26632A	26632A 625304000 ﾘﾃｰﾅ,ﾘﾔﾌﾞﾚｰｷ 1993-09-01 ~ 1994-10-01; 2C	625304000	—
	replacement
26632A	26632A 625304001 RETAINER 1993-09-01 ~ 1994-10-01; 2C	625304001	from US $0.42
26633	26633 26233AA020 Shim, disc brake, rear outer and inner 1993-09-01 ~ 1994-10-01; 2C	26233AA020	US $5.38
26633	26633 26233AA020 Shim, disc brake, rear outer and inner 1993-09-01 ~ 1994-10-01; 2C	26233AA020	US $5.38
26633A	26633A 26233AA030 SHIM 1993-09-01 ~ 1994-10-01; 2C	26233AA030	US $5.38
26688	26688 26228AA010 LOCK PIN 1993-09-01 ~ 1994-10-01; 2C	26228AA010	—
	replacement
26688	26688 26228AA011 LOCK PIN 1993-09-01 ~ 1994-10-01; 2C	26228AA011	US $6.09
26688A	26688A 26228AA020 GUIDE PIN 1993-09-01 ~ 1994-10-01; 2C	26228AA020	from US $2.61
26692	26692 26291AA080 DISC BRAKE KIT R RH 1993-09-01 ~ 1994-10-01; 2C; I*; D=38	26291AA080	US $392.23
26692A	26692A 26291AA090 DISC BRAKE KIT R LH 1993-09-01 ~ 1994-10-01; 2C; I*; D=38	26291AA090	US $392.23
26696A	26696A 26296PA040 Pad kit-rear disk brake 1993-09-01 ~ 1994-10-01; 2C; I*	26296PA040	—
26697	26697 26297AA040 SEAL KIT 1993-09-01 ~ 1994-10-01; 2C; D=38	26297AA040	from US $14.39
26700	26700 26310PA061 Brake disk-rear 1993-09-01 ~ 1994-10-01; 2C; I*	26310PA061	—
26704A	26704A 26255PA020 BACK PL COMPL R 1993-09-01 ~ 1994-10-01; 2C	26255PA020	—
26704B	26704B 26255PA030 BACK PL COMPL L 1993-09-01 ~ 1994-10-01; 2C	26255PA030	US $134.52
26706A	26706A 26257PA020 BRAKE SHOE P 1993-09-01 ~ 1994-10-01; 2C	26257PA020	—
26706B	26706B 26257PA000 BRAKE SHOE S RH 1993-09-01 ~ 1994-10-01; 2C	26257PA000	US $26.20
26706C	26706C 26257PA010 BRAKE SHOE S LH 1993-09-01 ~ 1994-10-01; 2C	26257PA010	US $25.77
26707	26707 26258AA020 ADJUSTER ASSY 1993-09-01 ~ 1994-10-01; 2C	26258AA020	US $21.81
26708	26708 26259PA000 LEVER RH 1993-09-01 ~ 1994-10-01; 2C	26259PA000	—
	replacement
26708	26708 26708FE021 PARKING LEVER RH 1993-09-01 ~ 1994-10-01; 2C	26708FE021	US $16.57
26708A	26708A 26259PA010 LEVER LH 1993-09-01 ~ 1994-10-01; 2C	26259PA010	—
	replacement
26708A	26708A 26708FE031 PARKING LEVER LH 1993-09-01 ~ 1994-10-01; 2C	26708FE031	US $16.57
26714C	26714C 26265AA040 SPRING BK SHOE 1993-09-01 ~ 1994-10-01; 2C	26265AA040	from US $2
26714D	26714D 26265AA060 SPRING 1993-09-01 ~ 1994-10-01; 2C	26265AA060	from US $2.15
26714E	26714E 26265AA071 SPRING ADJ 1993-09-01 ~ 1994-10-01; 2C	26265AA071	from US $2.92
26714O	26714O 26265PA000 ｽﾌﾟﾘﾝｸﾞ,P ｼﾕｰﾘﾀｰﾝ 1993-09-01 ~ 1994-10-01; 2C	26265PA000	—
	replacement
26714O	26714O 26265PA010 SPRING S 1993-09-01 ~ 1994-10-01; 2C	26265PA010	from US $2.92
26714P	26714P 26265PA010 SPRING S 1993-09-01 ~ 1994-10-01; 2C	26265PA010	from US $2.92
26714P	26714P 26265PA010 SPRING S 1993-09-01 ~ 1994-10-01; 2C	26265PA010	from US $2.92
26716	26716 26267AA010 PIN 1993-09-01 ~ 1994-10-01; 2C	26267AA010	US $2.69
	replacement
26716	26716 26267AA011 PIN 1993-09-01 ~ 1994-10-01; 2C	26267AA011	from US $1.92
26717	26717 26268PA000 PLATE 1993-09-01 ~ 1994-10-01; 2C	26268PA000	—
	replacement
26717	26717 26268PA001 PLATE 1993-09-01 ~ 1994-10-01; 2C	26268PA001	from US $4.46
26718	26718 26269PA000 STRUT RH 1993-09-01 ~ 1994-10-01; 2C	26269PA000	—
	replacement
26718	26718 26718FE001 STRUTBRAKE RIGHT 1993-09-01 ~ 1994-10-01; 2C	26718FE001	US $9.49
26718A	26718A 26269PA010 STRUT LH 1993-09-01 ~ 1994-10-01; 2C	26269PA010	—
	replacement
26718A	26718A 26718FE011 STRUT LH 1993-09-01 ~ 1994-10-01; 2C	26718FE011	from US $5.05
26721	26721 26271AA000 COVER 1993-09-01 ~ 1994-10-01; 2C	26271AA000	US $1.27
26722	26722 625006000 ｶﾂﾌﾟ,ｼﾕｰﾎｰﾙﾄﾞﾀﾞｳﾝ 1993-09-01 ~ 1994-10-01; 2C	625006000	—
	replacement
26722	26722 26722AE001 CUPSHOE HOLD DOWN 1993-09-01 ~ 1994-10-01; 2C	26722AE001	US $1.13
26788A	26788A 625303000 ｳｴｰﾌﾞﾜﾂｼﾔ,ﾌﾞﾚｰｷ 1993-09-01 ~ 1994-10-01; 2C	625303000	—
	replacement
26788A	26788A 625303001 SPRING WASHER 1993-09-01 ~ 1994-10-01; 2C	625303001	from US $0.42
M120036	M120036 901120036 BOLT ASSY 1993-09-01 ~ 1994-10-01; 2C	901120036	from US $0.50

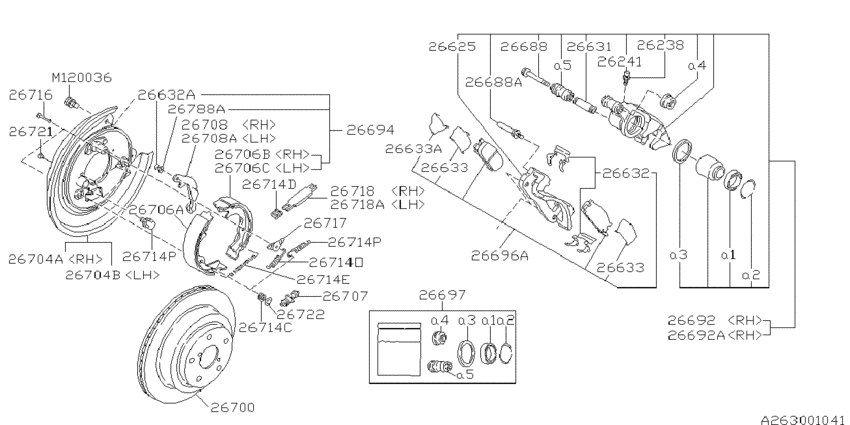

Rear brake (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089495-119037

Rear brake (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089495-119037
