Component List SVX
Side body outer (2C; 1993-09-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
50813C	50813C 50842PA020 BKT JACK UP POINT 1993-09-01 ~ 1994-10-01; 2C	50842PA020	US $13.59
51410	51410 51410PA080 RQ PNL OUT COMPL RH 1993-09-01 ~ 1994-10-01; 2C	51410PA080	US $785.88
51410A	51410A 51410PA090 RQ PNL OUT COMPL LH 1993-09-01 ~ 1994-10-01; 2C	51410PA090	US $785.88
51410B	51410B 51410PA060 RQ END COMPL RH 1993-09-01 ~ 1994-10-01; 2C	51410PA060	US $188.33
51410C	51410C 51410PA070 RQ END COMPL LH 1993-09-01 ~ 1994-10-01; 2C	51410PA070	US $188.33
51415	51415 51415PA000 SD SILL OUT COMPL RH 1993-09-01 ~ 1994-10-01; 2C	51415PA000	US $171.34
51415A	51415A 51415PA010 SD SILL OUT COMPL LH 1993-09-01 ~ 1994-10-01; 2C	51415PA010	US $171.34
51420	51420 51420PA060 F PLR OUT COMPL RH 1993-09-01 ~ 1994-10-01; 2C	51420PA060	US $481.44
51420A	51420A 51420PA070 F PLR OUT COMPL LH 1993-09-01 ~ 1994-10-01; 2C	51420PA070	US $481.44
51425	51425 51425PA000 SIDE RAIL OUT RH 1993-09-01 ~ 1994-10-01; 2C	51425PA000	US $87.37
51425A	51425A 51425PA010 SIDE RAIL OUT LH 1993-09-01 ~ 1994-10-01; 2C	51425PA010	US $87.37
51466	51466 51494PA010 COVER DRAIN 1993-09-01 ~ 1994-10-01; 2C	51494PA010	US $5.66
51472B	51472B 51472PA250 REINF F PL LWR CPRH 1993-09-01 ~ 1994-10-01; 2C	51472PA250	US $208.15
51472C	51472C 51472PA260 REINF F PL LWR CPLH 1993-09-01 ~ 1994-10-01; 2C	51472PA260	US $208.15
51475F	51475F 51358PA060 EXT R SKIRT CP RH 1993-09-01 ~ 1994-10-01; 2C	51358PA060	US $100.68
51475G	51475G 51358PA070 EXT R SKIRT CP LH 1993-09-01 ~ 1994-10-01; 2C	51358PA070	US $100.68
010006160	010006160 010006160 FLANG BOLT	010006160	from US $0.15
010106166	010106166 010106166 FLANGE BOLT	010106166	—
	replacement
010106166	010106166 010106160 FLANGE BOLT-PILOT	010106160	US $0.28

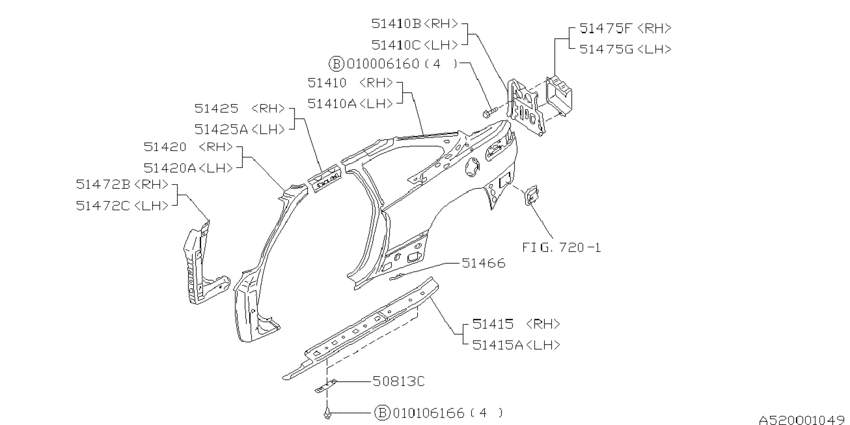

Side body outer (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089555-119037

Side body outer (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089555-119037
