	Description	OEM Part #	Price
57501	57501 57501PA020 Trunk lid complete 1993-09-01 ~ 1994-10-01; 2C.(LH+RH+S0)	57501PA020	—
57501	57501 57501PA040 Trunk lid complete 1996-10-01 ~ 1996-12-01; 2C.A0	57501PA040	—
57520A	57520A 57520PA000 HING CP TRK LIDRH 1993-09-01 ~ 1994-10-01; 2C	57520PA000	US $62.87
57520B	57520B 57520PA010 HING CP TRK LIDLH 1993-09-01 ~ 1994-10-01; 2C	57520PA010	US $62.87
57522	57522 57521PA000 STAY ASSY TRUNK RH 1993-09-01 ~ 1994-10-01; 2C	57521PA000	US $105.63
57522A	57522A 57521PA010 STAY ASSY TRUNK LH 1993-09-01 ~ 1994-10-01; 2C	57521PA010	US $105.63
57530	57530 57530PA000 LOCK ASSY TRUNK 1993-09-01 ~ 1994-10-01; 2C	57530PA000	US $34.83
57531	57531 57531PA000 ASSY STRIKER 1993-09-01 ~ 1994-10-01; 2C	57531PA000	US $24.50
57532	57532 57532PA000 WS TRUNK 1993-09-01 ~ 1994-10-01; 2C	57532PA000	US $73.92
57533	57533 57533PA000 STOPPER A TRUNK 1993-09-01 ~ 1994-10-01; 2C	57533PA000	US $2.97
57534	57534 57534PA010 COVER LOCK A 1993-09-01 ~ 1994-10-01; 2C	57534PA010	US $7.22
57543	57543 57523PA000 SPACER HINGTRNK 1993-09-01 ~ 1994-10-01; 2C; T=1.0MM	57523PA000	US $2.97
57543	57543 57523PA010 57523PA010 1993-09-01 ~ 1994-10-01; 2C; T=0.6MM	57523PA010	US $2.97
57543A	57543A 57523PA020 SPACER LOCK TRK 1993-09-01 ~ 1994-10-01; 2C; T=0.7MM	57523PA020	US $2.97
57544	57544 57513PA010 BLACK TAPE RH 1993-09-01 ~ 1994-10-01; 2C; C	57513PA010	US $7.93
57544A	57544A 57513PA020 BLACK TAPE LH 1993-09-01 ~ 1994-10-01; 2C; C	57513PA020	US $7.93
57547	57547 57535AA031 PROTECTOR 1993-09-01 ~ 1994-10-01; 2C	57535AA031	US $0.28
57586A	57586A 57545PA000 FLANGE BOLT 1993-09-01 ~ 1994-10-01; 2C	57545PA000	US $2.12
57586A	57586A 57545PA000 FLANGE BOLT 1993-09-01 ~ 1994-10-01; 2C	57545PA000	US $2.12
61066I	61066I 760122110 CLIP KEY LOCK 1993-09-01 ~ 1994-10-01; 2C	760122110	—
M060003	M060003 901060003 FLANGE BOLT 1993-09-01 ~ 1994-10-01; 2C	901060003	US $0.57
W230011	W230011 909230011 ｸﾞﾛﾒﾂﾄｼｰﾄ 1993-09-01 ~ 1994-10-01; 2C; D=20	909230011	—
	replacement
W230011	W230011 909230044 GROMMET SHEET D20 1993-09-01 ~ 1994-10-01; 2C; D=20	909230044	US $0.99
010008206	010008206 010008206 FLANGE BOLT	010008206	—
	replacement
010008206	010008206 010008200 FLANGE BOLTPLT	010008200	US $1.56
010008206	010008206 010008206 FLANGE BOLT	010008206	—
	replacement
010008206	010008206 010008200 FLANGE BOLTPLT	010008200	US $1.56
010008206	010008206 010008206 FLANGE BOLT	010008206	—
	replacement
010008206	010008206 010008200 FLANGE BOLTPLT	010008200	US $1.56

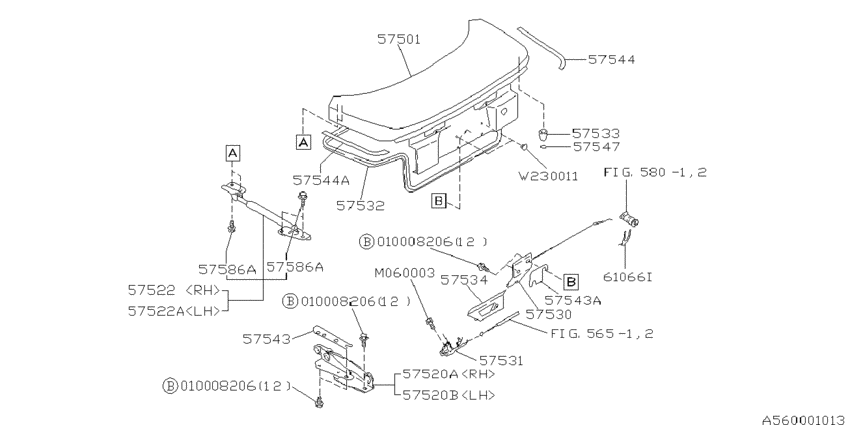

Trunk (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089565-119037

Trunk (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089565-119037
