Component List SVX
Windshield washer (2C; 1993-09-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
86611	86611 786621000 MOTOR PUMP 1994-11-01 ~ 1995-10-01; 2C; CND	786621000	US $70.23
86616	86616 86615PA020 COVER 1994-11-01 ~ 1995-10-01; 2C; CND	86615PA020	US $20.39
86623	86623 86623PA000 PACKING 1994-11-01 ~ 1995-10-01; 2C; CND	86623PA000	US $3.82
86631	86631 86631PA000 TANK 1996-10-01 ~ 1996-12-01; 2C.(S0+A0); CND	86631PA000	US $32.57
86631	86631 86631PA030 Tank-washer front 1994-11-01 ~ 1995-10-01; 2C.(LH+RH); C	86631PA030	—
86636D	86636D 86636PA030DF NOZZLE 1994-11-01 ~ 1995-10-01; BLUE MICA; 2C; CND	86636PA030DF	US $14.73
86636D	86636D 86636PA030FL NOZZLE 1994-11-01 ~ 1995-10-01; GREEN MICA; 2C; CND	86636PA030FL	US $14.73
86636D	86636D 86636PA030FV NOZZLE 1994-11-01 ~ 1995-10-01; BRIGHT GREEN MICA; 2C; CND	86636PA030FV	US $14.73
86636D	86636D 86636PA030HC NOZZLE 1994-11-01 ~ 1995-10-01; BRIGHT YELLOW; 2C; CND	86636PA030HC	US $14.73
86636D	86636D 86636PA030JA NOZZLE 1996-10-01 ~ 1996-12-01; SILVER M/GRAY M; 2C.A0; ND	86636PA030JA	US $14.73
86636D	86636D 86636PA030RG NOZZLE 1994-11-01 ~ 1995-10-01; DARK RED MICA; 2C; ND	86636PA030RG	US $14.73
86636D	86636D 86636PA030RJ NOZZLE 1994-11-01 ~ 1995-10-01; RED; 2C; CND	86636PA030RJ	US $14.73
86636D	86636D 86636PA030RN NOZZLE 1994-11-01 ~ 1995-10-01; CRIMSON MICA; 2C; CND	86636PA030RN	US $14.73
86636D	86636D 86636PA030SG NOZZLE 1994-11-01 ~ 1995-10-01; LIGHT SILVER M; 2C; CND	86636PA030SG	US $14.73
86636D	86636D 86636PA030UA NOZZLE 1994-11-01 ~ 1995-10-01; BRIGHT RED 2; 2C; CND	86636PA030UA	US $14.73
86636D	86636D 86636PA030VE NOZZLE 1994-11-01 ~ 1995-10-01; BLACK MICA; 2C; CND	86636PA030VE	US $14.73
86636D	86636D 86636PA030WJ NOZZLE 1994-11-01 ~ 1995-10-01; WHITE MICA; 2C; ND	86636PA030WJ	US $14.73
86636D	86636D 86636PA030DF NOZZLE 1994-11-01 ~ 1995-10-01; BLUE MICA; 2C; CND	86636PA030DF	US $14.73
86636D	86636D 86636PA030FL NOZZLE 1994-11-01 ~ 1995-10-01; GREEN MICA; 2C; CND	86636PA030FL	US $14.73
86636D	86636D 86636PA030FV NOZZLE 1994-11-01 ~ 1995-10-01; BRIGHT GREEN MICA; 2C; CND	86636PA030FV	US $14.73
86636D	86636D 86636PA030HC NOZZLE 1994-11-01 ~ 1995-10-01; BRIGHT YELLOW; 2C; CND	86636PA030HC	US $14.73
86636D	86636D 86636PA030JA NOZZLE 1996-10-01 ~ 1996-12-01; SILVER M/GRAY M; 2C.A0; ND	86636PA030JA	US $14.73
86636D	86636D 86636PA030RG NOZZLE 1994-11-01 ~ 1995-10-01; DARK RED MICA; 2C; ND	86636PA030RG	US $14.73
86636D	86636D 86636PA030RJ NOZZLE 1994-11-01 ~ 1995-10-01; RED; 2C; CND	86636PA030RJ	US $14.73
86636D	86636D 86636PA030RN NOZZLE 1994-11-01 ~ 1995-10-01; CRIMSON MICA; 2C; CND	86636PA030RN	US $14.73
86636D	86636D 86636PA030SG NOZZLE 1994-11-01 ~ 1995-10-01; LIGHT SILVER M; 2C; CND	86636PA030SG	US $14.73
86636D	86636D 86636PA030UA NOZZLE 1994-11-01 ~ 1995-10-01; BRIGHT RED 2; 2C; CND	86636PA030UA	US $14.73
86636D	86636D 86636PA030VE NOZZLE 1994-11-01 ~ 1995-10-01; BLACK MICA; 2C; CND	86636PA030VE	US $14.73
86636D	86636D 86636PA030WJ NOZZLE 1994-11-01 ~ 1995-10-01; WHITE MICA; 2C; ND	86636PA030WJ	US $14.73
86638	86638 86639PA000 ｼﾞﾖｲﾝﾄ Y,ｳｲﾝﾄﾞｼｰﾙﾄﾞｳｵﾂｼﾔ 1994-11-01 ~ 1995-10-01; 2C; NO.1; CND	86639PA000	US $1.13
86638	86638 86639PA020 ｼﾞﾖｲﾝﾄ Y,ｳｲﾝﾄﾞｼｰﾙﾄﾞｳｵﾂｼﾔ 1994-11-01 ~ 1995-10-01; 2C; NO.2; CND	86639PA020	US $1.27
86638	86638 86639PA000 ｼﾞﾖｲﾝﾄ Y,ｳｲﾝﾄﾞｼｰﾙﾄﾞｳｵﾂｼﾔ 1994-11-01 ~ 1995-10-01; 2C; NO.1; CND	86639PA000	US $1.13
86638	86638 86639PA020 ｼﾞﾖｲﾝﾄ Y,ｳｲﾝﾄﾞｼｰﾙﾄﾞｳｵﾂｼﾔ 1994-11-01 ~ 1995-10-01; 2C; NO.2; CND	86639PA020	US $1.27
86638B	86638B 86639GA160 ｼﾞﾖｲﾝﾄ I,ｳｲﾝﾄﾞｼｰﾙﾄﾞｳｵﾂｼﾔ 1994-11-01 ~ 1995-10-01; 2C; CND	86639GA160	US $1.27
86638C	86638C 786639100 New Genuine Part 1994-11-01 ~ 1995-10-01; 2C; CND	786639100	US $0.99
86638D	86638D 786206030 ｼﾞﾖｲﾝﾄ,ｳｵﾂｼﾔ 1994-11-01 ~ 1995-10-01; 2C; CND	786206030	US $2.27
86638D	86638D 786206030 ｼﾞﾖｲﾝﾄ,ｳｵﾂｼﾔ 1994-11-01 ~ 1995-10-01; 2C; CND	786206030	US $2.27
86644	86644 86644PA000 BRKT 1994-11-01 ~ 1995-10-01; 2C; CND	86644PA000	US $9.35
86655	86655 86655PA000 HOSE ASSY 1994-11-01 ~ 1995-10-01; 2C; NO.1; CND	86655PA000	US $5.24
86655	86655 86655PA190 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.2; CND	86655PA190	US $0.28
86655	86655 86655PA000 HOSE ASSY 1994-11-01 ~ 1995-10-01; 2C; NO.1; CND	86655PA000	US $5.24
86655	86655 86655PA190 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.2; CND	86655PA190	US $0.28
86655	86655 86655PA000 HOSE ASSY 1994-11-01 ~ 1995-10-01; 2C; NO.1; CND	86655PA000	US $5.24
86655	86655 86655PA190 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.2; CND	86655PA190	US $0.28
86655B	86655B 86655PA030 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.3; CND	86655PA030	—
86655B	86655B 86655PA040 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.4; CND	86655PA040	US $0.28
86655B	86655B 86655PA050 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.2; CND	86655PA050	US $1.56
86655B	86655B 86655PA060 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.1; CND	86655PA060	US $0.57
86655B	86655B 86655PA030 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.3; CND	86655PA030	—
86655B	86655B 86655PA040 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.4; CND	86655PA040	US $0.28
86655B	86655B 86655PA050 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.2; CND	86655PA050	US $1.56
86655B	86655B 86655PA060 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.1; CND	86655PA060	US $0.57
86655B	86655B 86655PA030 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.3; CND	86655PA030	—
86655B	86655B 86655PA040 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.4; CND	86655PA040	US $0.28
86655B	86655B 86655PA050 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.2; CND	86655PA050	US $1.56
86655B	86655B 86655PA060 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.1; CND	86655PA060	US $0.57
86655B	86655B 86655PA030 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.3; CND	86655PA030	—
86655B	86655B 86655PA040 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.4; CND	86655PA040	US $0.28
86655B	86655B 86655PA050 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.2; CND	86655PA050	US $1.56
86655B	86655B 86655PA060 HOSE 1994-11-01 ~ 1995-10-01; 2C; NO.1; CND	86655PA060	US $0.57
86686	86686 86617AA060 CLIP F WASHER 1994-11-01 ~ 1995-10-01; 2C; NO.1; C	86617AA060	US $0.99
86686	86686 86617PA010 CLIP 1994-11-01 ~ 1995-10-01; 2C; NO.2; C	86617PA010	US $1.56
86686	86686 86617AA060 CLIP F WASHER 1994-11-01 ~ 1995-10-01; 2C; NO.1; C	86617AA060	US $0.99
86686	86686 86617PA010 CLIP 1994-11-01 ~ 1995-10-01; 2C; NO.2; C	86617PA010	US $1.56
86688	86688 686223030 GROMMETWS WASH 1994-11-01 ~ 1995-10-01; 2C; CND	686223030	—
	replacement
86688	86688 86623KG010 PACKING MOTOR 1994-11-01 ~ 1995-10-01; 2C; CND	86623KG010	from US $1
M120062	M120062 901120062 BOLT 1994-11-01 ~ 1995-10-01; 2C; C	901120062	US $1.56
047406166	047406166 047406166 FT TAPPINGS SCR	047406166	—
	replacement
047406166	047406166 904740012 SCREW TAP FT M6	904740012	US $0.42

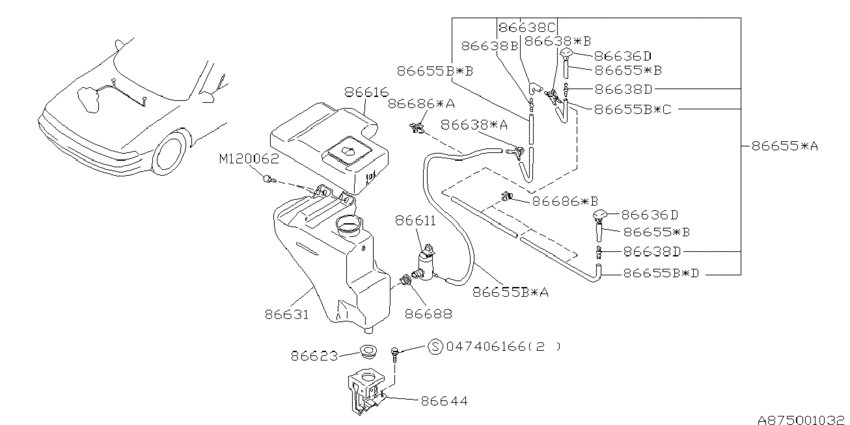

Windshield washer (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089668-119039

Windshield washer (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089668-119039
