Component List SVX
At, transmission case (TRANSMISSION CASE; AT; 1993-09-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
21619	21619 21619AA011 New Genuine Part 1994-11-01 ~ 1995-10-01; AT	21619AA011	US $33.70
21620	21620 21620AA040 Pipe complete-oil cooler,outlet 1994-11-01 ~ 1995-10-01; AT	21620AA040	—
21667	21667 21667AA000 SPROIL COOLER 1994-11-01 ~ 1995-10-01; AT	21667AA000	US $1.27
31080	31080 31080AA051 PIPE AYOIL CHRG 1994-11-01 ~ 1995-10-01; AT	31080AA051	US $40.64
31088	31088 31088AA050 GAUGE AYATF LVL 1994-11-01 ~ 1995-10-01; AT	31088AA050	—
31259	31259 31259AA001 BODY CPRLF VLV 1994-11-01 ~ 1995-10-01; AT	31259AA001	US $48.43
31262	31262 31262AA020 GSKTRELIEF VLV 1994-11-01 ~ 1995-10-01; AT	31262AA020	US $1.70
31267	31267 31267AA000 PIPE CPTRF CONT 1994-11-01 ~ 1995-10-01; AT	31267AA000	US $16.14
31292	31292 31292AA000 ﾕﾆｵﾝｽｸﾘﾕ,ｵｲﾙｸｰﾗ 1994-11-01 ~ 1995-10-01; AT	31292AA000	US $14.30
31298	31298 31298AA011 PLUGOIL PUMP 1994-11-01 ~ 1995-10-01; AT	31298AA011	US $8.92
31298	31298 31298AA011 PLUGOIL PUMP 1994-11-01 ~ 1995-10-01; AT	31298AA011	US $8.92
31311	31311 31311AA173 ｹｰｽｺﾝﾌﾟﾘｰﾄ,ﾄﾗﾝｽﾐﾂｼﾖﾝｵｰﾄﾏﾁﾂｸ 1994-11-01 ~ 1995-03-01; AT	31311AA173	US $1,278.65
31311	31311 31311AA281 CASE CPTRANSAT 1995-04-01 ~ 1995-05-01; AT	31311AA281	US $1,278.65
31311	31311 31311AA310 CASE CPTRANSAT 1995-05-01 ~ 1995-10-01; AT; M/#920972-	31311AA310	US $1,278.65
31311	31311 31311AA173 ｹｰｽｺﾝﾌﾟﾘｰﾄ,ﾄﾗﾝｽﾐﾂｼﾖﾝｵｰﾄﾏﾁﾂｸ 1994-11-01 ~ 1995-03-01; AT	31311AA173	US $1,278.65
31311	31311 31311AA281 CASE CPTRANSAT 1995-04-01 ~ 1995-05-01; AT	31311AA281	US $1,278.65
31311	31311 31311AA310 CASE CPTRANSAT 1995-05-01 ~ 1995-10-01; AT; M/#920972-	31311AA310	US $1,278.65
31311	31311 31311AA173 ｹｰｽｺﾝﾌﾟﾘｰﾄ,ﾄﾗﾝｽﾐﾂｼﾖﾝｵｰﾄﾏﾁﾂｸ 1994-11-01 ~ 1995-03-01; AT	31311AA173	US $1,278.65
31311	31311 31311AA281 CASE CPTRANSAT 1995-04-01 ~ 1995-05-01; AT	31311AA281	US $1,278.65
31311	31311 31311AA310 CASE CPTRANSAT 1995-05-01 ~ 1995-10-01; AT; M/#920972-	31311AA310	US $1,278.65
31325	31325 31325KA080 BOLT ASSYSEAL 1994-11-01 ~ 1995-10-01; AT	31325KA080	from US $5.08
31325	31325 31325KA080 BOLT ASSYSEAL 1994-11-01 ~ 1995-10-01; AT	31325KA080	from US $5.08
31557	31557 31557AA001 PIPE CPOVR CCH 1994-11-01 ~ 1995-10-01; AT	31557AA001	US $18.69
A50632	A50632 800506320 B W AY6X13X13 1994-11-01 ~ 1995-10-01; AT	800506320	—
	replacement
A50632	A50632 800506830 B W AY6X13X13 1994-11-01 ~ 1995-10-01; AT	800506830	US $0.42
A91036	A91036 800910360 STUD10XLX15 1994-11-01 ~ 1995-10-01; AT	800910360	US $1.27
A91037	A91037 800910370 STUD10XLX15 1994-11-01 ~ 1995-10-01; AT	800910370	from US $1.59
B91401X	B91401X 801914010 UNIONSCREW 1994-11-01 ~ 1995-10-01; AT	801914010	US $6.80
D91406	D91406 803914060 GSKT142X21X2 1994-11-01 ~ 1995-10-01; AT; 14.2X21X2	803914060	from US $0.42
E00802	E00802 804008020 STRAIGHT PIN8X18 1994-11-01 ~ 1995-10-01; AT; 8X18	804008020	US $0.85
G01102	G01102 806011020 BALL111125 1994-11-01 ~ 1995-10-01; AT	806011020	from US $0.42
G33901	G33901 806339010 CYLINDRICAL RLR BRG 1994-11-01 ~ 1995-10-01; AT	806339010	US $33.70
G71604	G71604 806716040 ｵｲﾙｼｰﾙ 1994-11-01 ~ 1995-10-01; AT	806716040	US $5.24
G90807	G90807 806908070 Seal O-ring 1994-11-01 ~ 1995-10-01; AT; 8.15X1.78	806908070	—
	replacement
G90807	G90807 806908150 Seal O-ring 1994-11-01 ~ 1995-10-01; AT; 8.15X1.78	806908150	from US $0.39
G91003	G91003 806910030 RING108X19 1994-11-01 ~ 1995-10-01; AT; 10.8X1.9	806910030	from US $0.28
G91601	G91601 806916010 Seal O-ring 1994-11-01 ~ 1995-10-01; AT	806916010	—
	replacement
G91601	G91601 806916050 RING16X24 1994-11-01 ~ 1995-10-01; AT	806916050	from US $0.57
G92406	G92406 806924060 Seal O-ring 1994-11-01 ~ 1995-10-01; AT	806924060	US $1.98
H506102	H506102 807506102 HOSE6X12 1994-11-01 ~ 1995-10-01; AT	807506102	—
010406180	010406180 010406180 FLANGE BOLT	010406180	US $0.28
031430000	031430000 031430000 SNAP RING	031430000	US $0.85
037016200	037016200 037016200 GSKT165X22X2	037016200	US $0.42

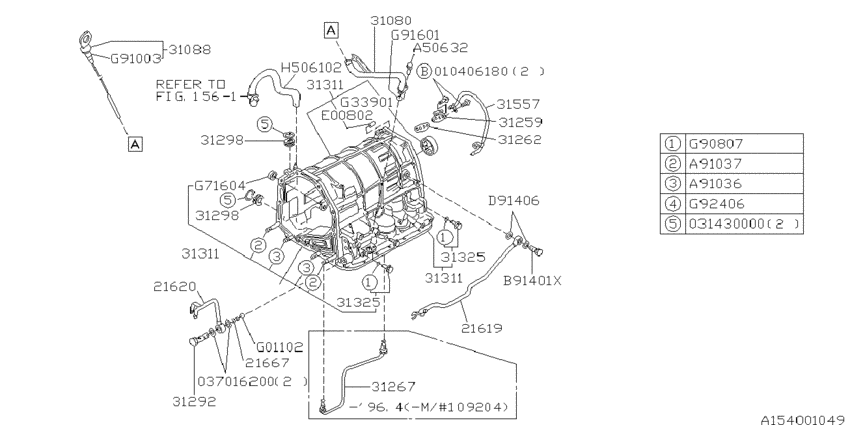

At, transmission case (TRANSMISSION CASE; AT; 1993-09-01~) Diagram Subaru SVX Europe 1089463-119041

At, transmission case (TRANSMISSION CASE; AT; 1993-09-01~) Diagram Subaru SVX Europe 1089463-119041
