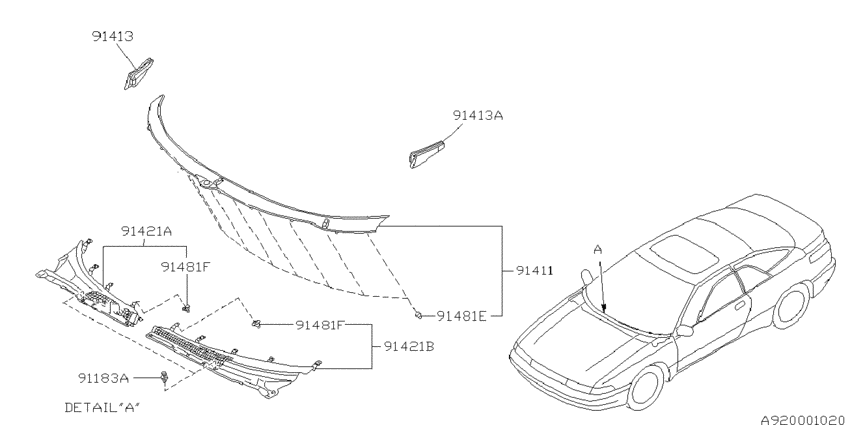

Cowl panel (2C.(LH+S0); 1993-09-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- Engine
- EG33D
- drive
- F4WD
- transmission
- AT
- body
- 2C
- Destinat
- S0
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
91183A
|
91183A
791017380 ｽｸﾘﾕ ﾘﾍﾞﾂﾄ1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
791017380 |
US $2.12 |
||
|
91411
|
91411
91151PA010
Cowl panel assembly
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
91151PA010 |
— | ||
|
91413
|
91413
91164PA000 COWL PANEL SIDE RH1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
91164PA000 |
US $76.04 |
||
|
91413A
|
91413A
91164PA010
COWL PANEL SIDE LH
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
91164PA010 |
— | ||
|
91421A
|
91421A
91168PA000
Net-cowl panel,right
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
91168PA000 |
— | ||
|
91421B
|
91421B
91168PA010
Net-cowl panel,left
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
91168PA010 |
— | ||
|
91481E
|
91481E
91167PA000 CLIP PIN1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
91167PA000 |
US $1.56 |
||
|
91481F
|
91481F
91167PA010
ｸﾘﾂﾌﾟ ｷﾔﾂﾌﾟ,ｶｳﾙ ﾊﾟﾈﾙ
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
91167PA010 |
— | ||
|
91481F
|
91481F
91167PA010
ｸﾘﾂﾌﾟ ｷﾔﾂﾌﾟ,ｶｳﾙ ﾊﾟﾈﾙ
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
91167PA010 |
— |
