Component List SVX
Head lamp (GEN. & AUST.; 2C; 1993-09-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
84001A	84001A 84001PA020 Lamp assembly-head right 1994-11-01 ~ 1995-10-01; 2C.S0; NO.2 G.C.C.	84001PA020	—
84001A	84001A 84001PA100 Lamp assembly-head right 1993-09-01 ~ 1994-10-01; 2C.RH; NO.1 WITH LEVERING	84001PA100	—
84001B	84001B 84001PA030 Lamp assembly-head left 1994-11-01 ~ 1995-10-01; 2C.S0; NO.2 G.C.C.	84001PA030	—
84001B	84001B 84001PA110 Lamp assembly-head left 1993-09-01 ~ 1994-10-01; 2C.RH; NO.1 WITH LEVERING	84001PA110	—
84071	84071 84071PA000 LABEL CAUTION 1994-11-01 ~ 1995-10-01; 2C.S0	84071PA000	US $2.27
84912	84912 84912PA090 Lens & body-head lamp right 1994-11-01 ~ 1995-10-01; 2C.S0; NO.2	84912PA090	—
84912	84912 84912PA390 Lens & body-head lamp right 1993-09-01 ~ 1994-10-01; 2C.RH; NO.1 WITH LEVERING	84912PA390	—
84912A	84912A 84912PA100 Lens & body-head lamp left 1994-11-01 ~ 1995-10-01; 2C.S0; NO.2 G.C.C.	84912PA100	—
84912A	84912A 84912PA400 Lens & body-head lamp left 1993-09-01 ~ 1994-10-01; 2C.RH; NO.1 WITH LEVERING	84912PA400	—
84920	84920 84920GA400 BULB 1994-11-01 ~ 1995-10-01; 2C; 12V-55W; H3 12V55W	84920GA400	US $16.99
84920	84920 84920PA000 BULB 9005 1994-11-01 ~ 1995-10-01; 2C.S0; 12V-65W; #9005 12V-55W HB3	84920PA000	from US $15.58
84920	84920 84920PA010 BULB 9006 1994-11-01 ~ 1995-10-01; 2C.S0; 12V-55W; 55W SYLVANIA #9006	84920PA010	from US $16.43
84920	84920 84920GA400 BULB 1994-11-01 ~ 1995-10-01; 2C; 12V-55W; H3 12V55W	84920GA400	US $16.99
84920	84920 84920PA000 BULB 9005 1994-11-01 ~ 1995-10-01; 2C.S0; 12V-65W; #9005 12V-55W HB3	84920PA000	from US $15.58
84920	84920 84920PA010 BULB 9006 1994-11-01 ~ 1995-10-01; 2C.S0; 12V-55W; 55W SYLVANIA #9006	84920PA010	from US $16.43
84927	84927 84927PA000 BRACKET 1994-11-01 ~ 1995-10-01; 2C	84927PA000	US $4.25
84940P	84940P 84940PA070 PACKING 9005 1994-11-01 ~ 1995-10-01; 2C; NO.1	84940PA070	US $3.68
84940P	84940P 84940PA080 PACKING FOG 1994-11-01 ~ 1995-10-01; 2C; NO.2	84940PA080	US $3.68
84940P	84940P 84940PA070 PACKING 9005 1994-11-01 ~ 1995-10-01; 2C; NO.1	84940PA070	US $3.68
84940P	84940P 84940PA080 PACKING FOG 1994-11-01 ~ 1995-10-01; 2C; NO.2	84940PA080	US $3.68
84940Q	84940Q 84940PA110 PACKING 9006 1994-11-01 ~ 1995-10-01; 2C	84940PA110	US $3.68
84953H	84953H 84953PA010 Cover-fog light 1994-11-01 ~ 1995-10-01; 2C.S0; NO.1	84953PA010	—
84953H	84953H 84953PA020 Cover-fog light 1994-11-01 ~ 1995-10-01; 2C.S0; NO.2	84953PA020	—
84953H	84953H 84953PA030 Cover-fog light 1994-11-01 ~ 1995-10-01; 2C.S0; NO.3	84953PA030	—
84953H	84953H 84953PA010 Cover-fog light 1994-11-01 ~ 1995-10-01; 2C.S0; NO.1	84953PA010	—
84953H	84953H 84953PA020 Cover-fog light 1994-11-01 ~ 1995-10-01; 2C.S0; NO.2	84953PA020	—
84953H	84953H 84953PA030 Cover-fog light 1994-11-01 ~ 1995-10-01; 2C.S0; NO.3	84953PA030	—
84983	84983 84922PA000 TAPPING SCREW 1994-11-01 ~ 1995-10-01; 2C	84922PA000	US $0.14
84983	84983 84922PA000 TAPPING SCREW 1994-11-01 ~ 1995-10-01; 2C	84922PA000	US $0.14
84984	84984 84944PA010 SPRING NUT 1994-11-01 ~ 1995-10-01; 2C	84944PA010	US $1.84
84985B	84985B 84966PA000 SCREW GROMMET 1994-11-01 ~ 1995-10-01; 2C	84966PA000	US $0.42
84986	84986 84965PA060 CLIP A 1994-11-01 ~ 1995-10-01; 2C	84965PA060	US $0.57
84986C	84986C 84965PA020 CLIP B 1994-11-01 ~ 1995-10-01; 2C; NO.1	84965PA020	US $1.56
84986C	84986C 84965PA050 CLIP 1994-11-01 ~ 1995-10-01; 2C.S0; NO.2	84965PA050	US $0.57
91181B	91181B 91033PA000 GROMET 1994-11-01 ~ 1995-10-01; 2C	91033PA000	US $3.54
M120069	M120069 901120069 BOLTWASHERASSY 1994-11-01 ~ 1995-10-01; 2C	901120069	from US $0.26
M120069	M120069 901120069 BOLTWASHERASSY 1994-11-01 ~ 1995-10-01; 2C	901120069	from US $0.26

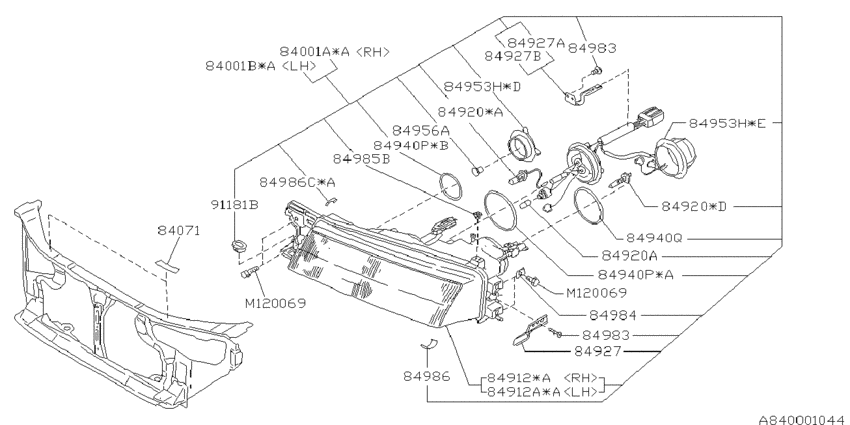

Head lamp (GEN. & AUST.; 2C; 1993-09-01~) Diagram Subaru SVX Europe 1089651-119041

Head lamp (GEN. & AUST.; 2C; 1993-09-01~) Diagram Subaru SVX Europe 1089651-119041
