Component List SVX
Starter (EG33D; 1993-09-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
23300	23300 23300AA300 MOTOR ASSYSTRT 1994-11-01 ~ 1995-10-01; EG33D; MI	23300AA300	US $1,011.02
23300	23300 23300AA390 MOTOR AYSTARTER 1994-11-01 ~ 1995-10-01; EG33D; MI	23300AA390	from US $659.67
23309	23309 23309AA120 YORK ASSYSTRTR 1994-11-01 ~ 1995-10-01; EG33D; MI	23309AA120	US $185.50
23309	23309 23309AA220 YOKE ASSYSTART 1994-11-01 ~ 1995-10-01; EG33D; MI	23309AA220	US $128.01
23310	23310 23310AA020 ARMATURE AUSTR 1994-11-01 ~ 1995-10-01; EG33D; MI	23310AA020	US $283.20
23310	23310 23310AA022 ARMATURE AYSTR 1994-11-01 ~ 1995-10-01; EG33D; MI	23310AA022	US $280.37
23310	23310 23310AA090 ARMATURE AYSTR 1994-11-01 ~ 1995-10-01; EG33D; MI	23310AA090	US $202.49
23312	23312 23312AA080 CCH CPOVER RUN 1994-11-01 ~ 1995-10-01; EG33D; MI	23312AA080	from US $57.21
23318	23318 23318AA010 BRACKET AYF 1994-11-01 ~ 1995-10-01; EG33D; MI	23318AA010	US $62.30
23319	23319 23319AA000 SLEEVE BRGF 1994-11-01 ~ 1995-10-01; EG33D; MI	23319AA000	from US $1.41
23320	23320 23320AA000 SLEEVE BRGSTRTR 1994-11-01 ~ 1995-10-01; EG33D; MI	23320AA000	from US $2.09
23322	23322 23322AA000 LEVER SET 1994-11-01 ~ 1995-10-01; EG33D; MI	23322AA000	US $6.09
23326	23326 23326AA000 BALL 1994-11-01 ~ 1995-10-01; EG33D; MI	23326AA000	US $0.42
23328	23328 23328AA040 SFT SETCLUTCH 1994-11-01 ~ 1995-10-01; EG33D; MI	23328AA040	US $270.46
23328	23328 23328AA080 SFT SETCLUTCH 1994-11-01 ~ 1995-10-01; EG33D; MI	23328AA080	US $220.90
23329	23329 23329AA000 SHAFT AYGEAR 1994-11-01 ~ 1995-10-01; EG33D; MI	23329AA000	US $208.15
23329	23329 23329AA030 SFT ASSYCLUTCH 1994-11-01 ~ 1995-10-01; EG33D; MI	23329AA030	US $171.34
23333	23333 23333AA000 SPRING BRUSH SET 1994-11-01 ~ 1995-10-01; EG33D; MI	23333AA000	US $3.82
23334	23334 23334AA010 GEAR AYINTERNL 1994-11-01 ~ 1995-10-01; EG33D; MI	23334AA010	US $16
23334	23334 23334AA040 GEAR AYINTERNA 1994-11-01 ~ 1995-10-01; EG33D; MI	23334AA040	US $13.17
23337	23337 23337AA020 BRACKETR 1994-11-01 ~ 1995-10-01; EG33D; MI	23337AA020	US $21.10
23339	23339 23339AA010 B0LT 1994-11-01 ~ 1995-10-01; EG33D; MI	23339AA010	US $3.54
23339	23339 23339AA110 BOLTTHROUGH 1994-11-01 ~ 1995-10-01; EG33D; MI	23339AA110	US $2.97
23343	23343 23343AA090 SW AYMAGNETIC 1994-11-01 ~ 1995-10-01; EG33D; MI	23343AA090	US $83.40
23343	23343 23343AA160 SW ASSYMAGNETI 1994-11-01 ~ 1995-10-01; EG33D; MI	23343AA160	US $75.90
23351	23351 23351AA000 GEAR AY 1994-11-01 ~ 1995-10-01; EG33D; MI	23351AA000	US $13.59
23378	23378 23378AA000 BRUSH H0LDER AY 1994-11-01 ~ 1995-10-01; EG33D; MI	23378AA000	US $29.59
23379	23379 23379AA000 BRUSH AY 1994-11-01 ~ 1995-10-01; EG33D; MI	23379AA000	from US $5.81
23383	23383 23383AA000 PACKING 1994-11-01 ~ 1995-10-01; EG33D; MI	23383AA000	—
23465	23465 23465AA000 STOPER SETPINN 1994-11-01 ~ 1995-10-01; EG33D; MI	23465AA000	from US $3.46
23480	23480 23480AA000 SCREW SET 1994-11-01 ~ 1995-10-01; EG33D; MI	23480AA000	US $1.56
23480	23480 23480AA000 SCREW SET 1994-11-01 ~ 1995-10-01; EG33D; MI	23480AA000	US $1.56
C01008	C01008 802010080 FLANGE NUT10X9 1994-11-01 ~ 1995-10-01; EG33D	802010080	US $0.99
031110006	031110006 031110006 WASHER	031110006	US $0.14

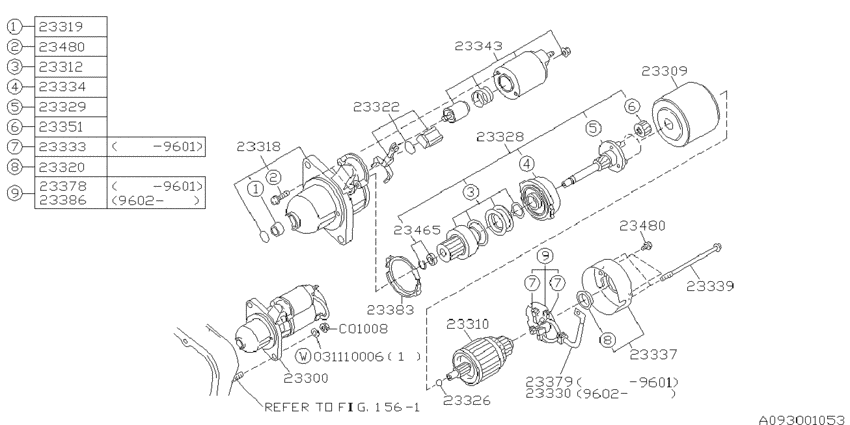

Starter (EG33D; 1993-09-01~) Diagram Subaru SVX Europe 1089457-119041

Starter (EG33D; 1993-09-01~) Diagram Subaru SVX Europe 1089457-119041
