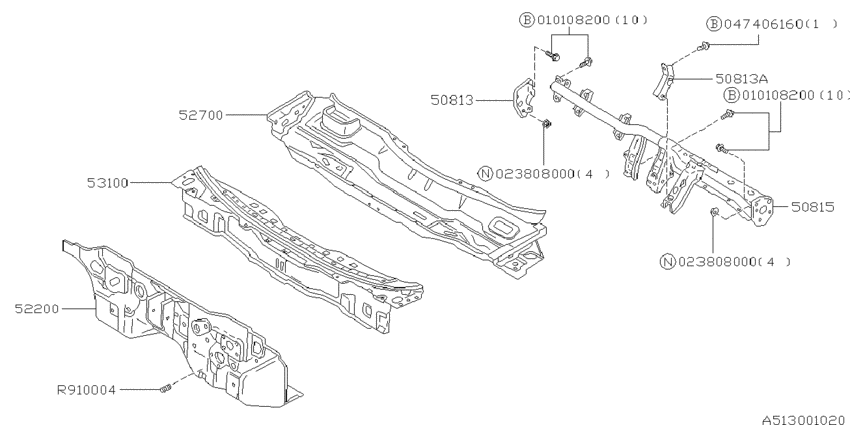

Toe board & front panel & steering beam (L.H.D.; 2C.(LH+S0); 1993-09-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- Engine
- EG33D
- drive
- F4WD
- transmission
- AT
- body
- 2C
- Destinat
- S0
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
50813
|
50813
50813PA010
Bracket-beam side a
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
50813PA010 |
— | ||
|
50813A
|
50813A
50813PA070
Bracket-steering a
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
50813PA070 |
— | ||
|
50815
|
50815
50815PA001
Beam complete-steering
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
50815PA001 |
— | ||
|
52200
|
52200
52200PA010
Toe board complete
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
52200PA010 |
— | ||
|
52700
|
52700
52700PA021
Bulkhead complete-front
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
52700PA021 |
— | ||
|
53100
|
53100
53100PA020
Panel complete-front
1994-11-01 ~ 1995-10-01; 2C.(LH+S0) |
53100PA020 |
— | ||
|
R910004
|
R910004
905910004 STUD BOLT INS1994-11-01 ~ 1995-10-01; 2C |
905910004 |
US $0.57 |
||
|
010108200
|
010108200
010108200 FLANGE BOLTPLT |
010108200 |
from US $0.35 |
||
|
010108200
|
010108200
010108200 FLANGE BOLTPLT |
010108200 |
from US $0.35 |
||
|
023808000
|
023808000
023808000 FLANGE NUT |
023808000 |
US $0.42 |
||
|
023808000
|
023808000
023808000 FLANGE NUT |
023808000 |
US $0.42 |
||
|
047406160
|
047406160
047406160 FT TAPPING SCREW |
047406160 |
US $0.28 |
