Component List SVX
Front door panel (2C; 1993-09-01~)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
57547	57547 57535AA031 PROTECTOR 1996-10-01 ~ 1996-12-01; 2C	57535AA031	US $0.28
60010	60010 61100PA020 DR PANEL ASSY RH 1996-10-01 ~ 1996-12-01; 2C	61100PA020	US $1,332.46
60010A	60010A 61100PA030 DR PANEL ASSY LH 1996-10-01 ~ 1996-12-01; 2C	61100PA030	US $1,332.46
60070D	60070D 61070PA000 HINGE ASSYDR A RH 1996-10-01 ~ 1996-12-01; 2C	61070PA000	US $158.59
60070E	60070E 61070PA010 HINGE ASSYDR A LH 1996-10-01 ~ 1996-12-01; 2C	61070PA010	US $158.59
60070G	60070G 61070PA020 HINGE ASSYDR B RH 1996-10-01 ~ 1996-12-01; 2C	61070PA020	US $151.51
60070H	60070H 61070PA030 HINGE ASSYDR B LH 1996-10-01 ~ 1996-12-01; 2C	61070PA030	US $151.51
61067A	61067A 62275PA010 GROMMET 1996-10-01 ~ 1996-12-01; 2C	62275PA010	US $1.56
61075A	61075A 62276PA010 PIN CTR 1996-10-01 ~ 1996-12-01; 2C	62276PA010	US $0.57
61124	61124 62090PA001 CHECKER ASSY DR 1996-10-01 ~ 1996-12-01; 2C	62090PA001	US $53.81
61134E	61134E 62370PA010 COVER WS DR RH 1996-10-01 ~ 1996-12-01; 2C	62370PA010	US $12.18
61134F	61134F 62370PA020 COVER WS DR LH 1996-10-01 ~ 1996-12-01; 2C	62370PA020	US $12.18
61218	61218 60035PA000 PROTECTOR 1996-10-01 ~ 1996-12-01; 2C; NO.1	60035PA000	US $0.57
61218	61218 661157040 PROTECTORDR 1996-10-01 ~ 1996-12-01; 2C; NO.2	661157040	US $0.42
61218	61218 60035PA000 PROTECTOR 1996-10-01 ~ 1996-12-01; 2C; NO.1	60035PA000	US $0.57
61218	61218 661157040 PROTECTORDR 1996-10-01 ~ 1996-12-01; 2C; NO.2	661157040	US $0.42
61242	61242 62345PA010 SEALDOOR B 1996-10-01 ~ 1996-12-01; 2C; C	62345PA010	US $2.27
61242A	61242A 62345PA020 ｼｰﾙ,ﾄﾞｱ C 1996-10-01 ~ 1996-12-01; 2C; C	62345PA020	US $1.98
61244	61244 62375PA000 COVER SEALING 1996-10-01 ~ 1996-12-01; 2C	62375PA000	US $36.67
61262B	61262B 62301PA010 STOPPER A DR SD 1996-10-01 ~ 1996-12-01; 2C	62301PA010	US $1.98
63075	63075 60152GA090 PIN 1996-10-01 ~ 1996-12-01; 2C	60152GA090	US $2.41
63216	63216 60157GA060 PLUGHOLE 1996-10-01 ~ 1996-12-01; 2C; NO.2	60157GA060	US $1.56
63216	63216 60157GA090 PLUGHOLE 1996-10-01 ~ 1996-12-01; 2C; NO.2; D=25	60157GA090	US $2.27
63216	63216 60157GA060 PLUGHOLE 1996-10-01 ~ 1996-12-01; 2C; NO.2	60157GA060	US $1.56
63216	63216 60157GA090 PLUGHOLE 1996-10-01 ~ 1996-12-01; 2C; NO.2; D=25	60157GA090	US $2.27
M270002	M270002 901270002 ﾎﾞﾙﾄｱﾝﾄﾞﾜﾂｼﾔｱｾﾝﾌﾞﾘ 1996-10-01 ~ 1996-12-01; 2C	901270002	US $1.27
M270002	M270002 901270002 ﾎﾞﾙﾄｱﾝﾄﾞﾜﾂｼﾔｱｾﾝﾌﾞﾘ 1996-10-01 ~ 1996-12-01; 2C	901270002	US $1.27
M280002	M280002 901280002 BOLTWASH ASSY 1996-10-01 ~ 1996-12-01; 2C	901280002	US $0.57
M280002	M280002 901280002 BOLTWASH ASSY 1996-10-01 ~ 1996-12-01; 2C	901280002	US $0.57
W230013	W230013 909230013 ｸﾞﾛﾒﾂﾄｼｰﾄ 1996-10-01 ~ 1996-12-01; 2C; D=30	909230013	—
	replacement
W230013	W230013 909230046 GROMMET SHEET D30 1996-10-01 ~ 1996-12-01; 2C; D=30	909230046	US $0.71
W230014	W230014 909230014 ｸﾞﾛﾒﾂﾄｼｰﾄ 1996-10-01 ~ 1996-12-01; 2C; D=40	909230014	US $0.28
023706006	023706006 023706006 FLANGE NUT	023706006	—
	replacement
023706006	023706006 902370049 Nut, M6	902370049	US $0.42
031306001	031306001 031306001 CLIP	031306001	US $0.28
031306001	031306001 031306001 CLIP	031306001	US $0.28

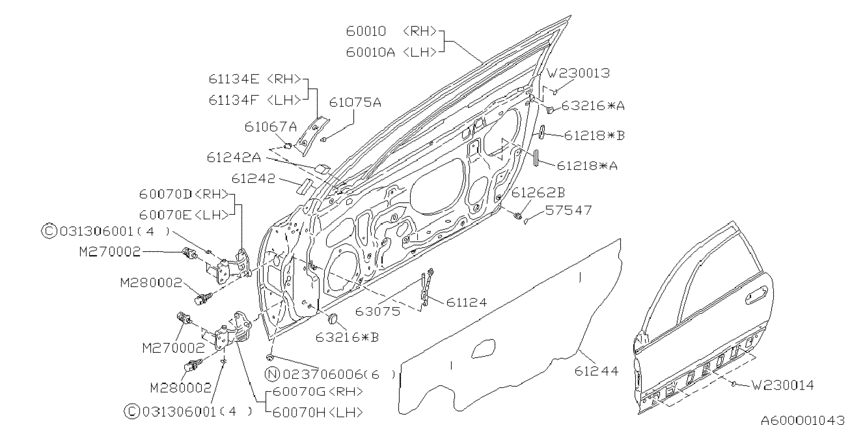

Front door panel (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089576-119048

Front door panel (2C; 1993-09-01~) Diagram Subaru SVX Europe 1089576-119048
