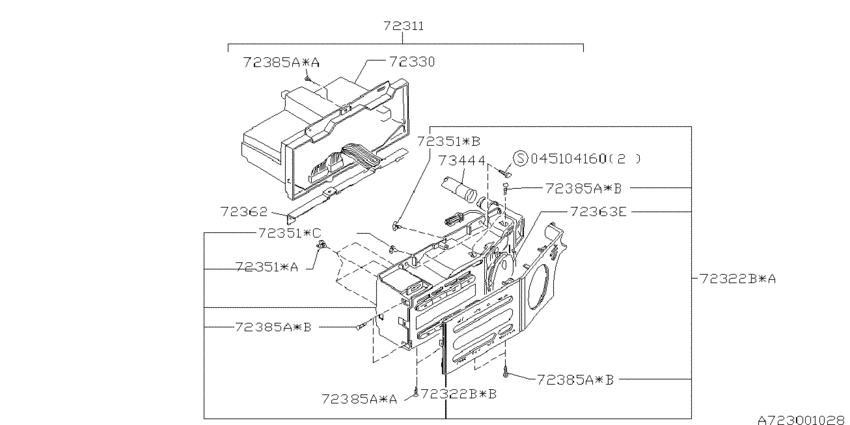

Heater control (2C.(RH+A0); 1993-09-01~) Diagram Subaru SVX
- Year
- 1992 - 2011
- Sales region
- Europe
- Engine
- EG33D
- drive
- F4WD
- transmission
- AT
- body
- 2C
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
72311
|
72311
72030PA090 ﾋｰﾀ ｺﾝﾄﾛｰﾙ ｱｾﾝﾌﾞﾘ1996-10-01 ~ 1996-12-01; 2C.(RH+A0); K0 |
72030PA090 |
US $1,962.58 |
||
|
72311
|
72311
72030PA120
Heater control assembly
1993-09-01 ~ 1994-10-01; 2C.RH; EK |
72030PA120 |
— | ||
|
72322B
|
72322B
72032PA090 ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ,ｵｰﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1 K0 |
72032PA090 |
US $1,156.87 |
||
|
72322B
|
72322B
72032PA120
Control panel-auto air conditioner
1993-09-01 ~ 1994-10-01; 2C.RH; NO.1 EK |
72032PA120 |
— | ||
|
72322B
|
72322B
72032PA140 ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ,ｵｰﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2 K0 |
72032PA140 |
US $233.64 |
||
|
72322B
|
72322B
72032PA170
Control panel-auto air conditioner
1993-09-01 ~ 1994-10-01; 2C.RH; NO.2 EK |
72032PA170 |
— | ||
|
72322B
|
72322B
72032PA090 ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ,ｵｰﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1 K0 |
72032PA090 |
US $1,156.87 |
||
|
72322B
|
72322B
72032PA120
Control panel-auto air conditioner
1993-09-01 ~ 1994-10-01; 2C.RH; NO.1 EK |
72032PA120 |
— | ||
|
72322B
|
72322B
72032PA140 ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ,ｵｰﾄ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2 K0 |
72032PA140 |
US $233.64 |
||
|
72322B
|
72322B
72032PA170
Control panel-auto air conditioner
1993-09-01 ~ 1994-10-01; 2C.RH; NO.2 EK |
72032PA170 |
— | ||
|
72330
|
72330
72030PA060 ｱﾝﾌﾟﾘﾌｱｲﾔ1996-10-01 ~ 1996-12-01; 2C.(RH+A0) |
72030PA060 |
US $920.40 |
||
|
72351
|
72351
72038PA000 LAMP A1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1; ZXL/526150-0020 |
72038PA000 |
US $5.52 |
||
|
72351
|
72351
72038PA010 LAMP B1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2; ZXL/583010-2400 |
72038PA010 |
US $5.52 |
||
|
72351
|
72351
72038PA020 LAMP C1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.3 |
72038PA020 |
US $5.52 |
||
|
72351
|
72351
72038PA000 LAMP A1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1; ZXL/526150-0020 |
72038PA000 |
US $5.52 |
||
|
72351
|
72351
72038PA010 LAMP B1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2; ZXL/583010-2400 |
72038PA010 |
US $5.52 |
||
|
72351
|
72351
72038PA020 LAMP C1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.3 |
72038PA020 |
US $5.52 |
||
|
72351
|
72351
72038PA000 LAMP A1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1; ZXL/526150-0020 |
72038PA000 |
US $5.52 |
||
|
72351
|
72351
72038PA010 LAMP B1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2; ZXL/583010-2400 |
72038PA010 |
US $5.52 |
||
|
72351
|
72351
72038PA020 LAMP C1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.3 |
72038PA020 |
US $5.52 |
||
|
72362
|
72362
72052PA040 BRKT1996-10-01 ~ 1996-12-01; 2C.(RH+A0) |
72052PA040 |
US $28.32 |
||
|
72363E
|
72363E
72034PA000 KNOB TEMP1996-10-01 ~ 1996-12-01; 2C.(RH+A0); ZXL/526190-5900 |
72034PA000 |
US $18.41 |
||
|
72385A
|
72385A
72094PA030 TAPPING SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1 |
72094PA030 |
US $0.57 |
||
|
72385A
|
72385A
72094PA070 SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2 |
72094PA070 |
US $0.57 |
||
|
72385A
|
72385A
72094PA030 TAPPING SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1 |
72094PA030 |
US $0.57 |
||
|
72385A
|
72385A
72094PA070 SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2 |
72094PA070 |
US $0.57 |
||
|
72385A
|
72385A
72094PA030 TAPPING SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1 |
72094PA030 |
US $0.57 |
||
|
72385A
|
72385A
72094PA070 SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2 |
72094PA070 |
US $0.57 |
||
|
72385A
|
72385A
72094PA030 TAPPING SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1 |
72094PA030 |
US $0.57 |
||
|
72385A
|
72385A
72094PA070 SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2 |
72094PA070 |
US $0.57 |
||
|
72385A
|
72385A
72094PA030 TAPPING SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.1 |
72094PA030 |
US $0.57 |
||
|
72385A
|
72385A
72094PA070 SCREW1996-10-01 ~ 1996-12-01; 2C.(RH+A0); NO.2 |
72094PA070 |
US $0.57 |
||
|
73444
|
73444
73054PA000 HOSE ASPILATOR1996-10-01 ~ 1996-12-01; 2C.(RH+A0); ZXL/525380-1000; ZX |
73054PA000 |
US $14.16 |
||
|
045104160
|
045104160
045104160 TAPPING SCREW |
045104160 |
US $0.14 |
