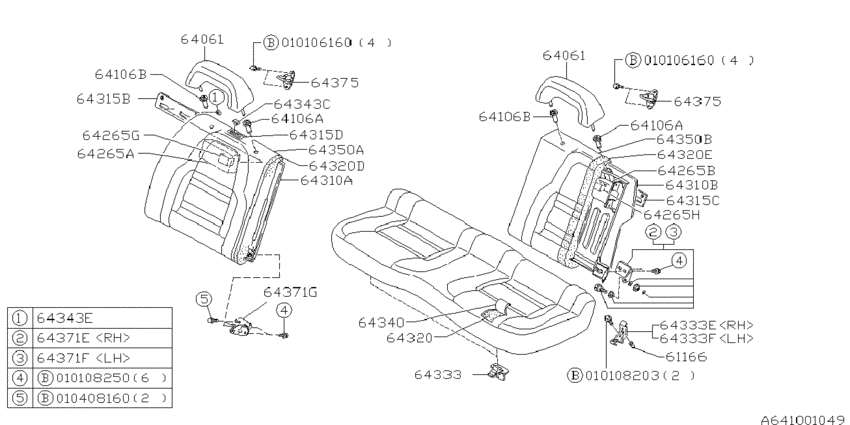

Rear seat (SEPARATE; 2C.LSI; 1993-08-01~) Diagram Subaru SVX
- Year
- 1993 - 2011
- Sales region
- U.S.A.
- Engine
- EG33D
- drive
- F4WD
- transmission
- AT
- grade
- LSI
- body
- 2C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61166
|
61166
62287PA000 HOLDER F1996-06-01 ~ 1996-11-01; 2C |
62287PA000 |
US $1.56 |
||
|
64061
|
64061
64260PA520EO
Head rest assembly-front
1996-06-01 ~ 1996-11-01; BEIGE; 2C.LSI; T |
64260PA520EO |
— | ||
|
64061
|
64061
64260PA520MD
Head rest assembly-front
1996-06-01 ~ 1996-11-01; GRAY; 2C.LSI; T |
64260PA520MD |
— | ||
|
64061
|
64061
64260PA520EO
Head rest assembly-front
1996-06-01 ~ 1996-11-01; BEIGE; 2C.LSI; T |
64260PA520EO |
— | ||
|
64061
|
64061
64260PA520MD
Head rest assembly-front
1996-06-01 ~ 1996-11-01; GRAY; 2C.LSI; T |
64260PA520MD |
— | ||
|
64106A
|
64106A
64286PA620 HEADREST BUSH1996-06-01 ~ 1996-11-01; 2C |
64286PA620 |
US $9.35 |
||
|
64106A
|
64106A
64286PA620 HEADREST BUSH1996-06-01 ~ 1996-11-01; 2C |
64286PA620 |
US $9.35 |
||
|
64106B
|
64106B
64286PA610 HEADREST BUSH1996-06-01 ~ 1996-11-01; 2C |
64286PA610 |
US $2.97 |
||
|
64106B
|
64106B
64286PA610 HEADREST BUSH1996-06-01 ~ 1996-11-01; 2C |
64286PA610 |
US $2.97 |
||
|
64265A
|
64265A
64470PA000 LOCK ASSY RB1996-06-01 ~ 1996-11-01; 2C |
64470PA000 |
US $53.81 |
||
|
64265B
|
64265B
64470PA010 LOCK ASSY RB1996-06-01 ~ 1996-11-01; 2C |
64470PA010 |
US $53.81 |
||
|
64265G
|
64265G
64470PA040 INTER LOCK AY R1996-06-01 ~ 1996-11-01; 2C.LSI |
64470PA040 |
US $73.92 |
||
|
64265H
|
64265H
64470PA050 INTER LOCK AY L1996-06-01 ~ 1996-11-01; 2C.LSI |
64470PA050 |
US $73.92 |
||
|
64310A
|
64310A
64471PA011 FRAME COMPL1996-06-01 ~ 1996-11-01; 2C.LSI |
64471PA011 |
US $215.23 |
||
|
64310B
|
64310B
64471PA021 FRAME COMPL1996-06-01 ~ 1996-11-01; 2C.LSI |
64471PA021 |
US $215.23 |
||
|
64315B
|
64315B
64581PA000MA COVERLOCK AYR1996-06-01 ~ 1996-11-01; GRAY; 2C; T |
64581PA000MA |
US $19.97 |
||
|
64315C
|
64315C
64581PA030MA COVER LOCK AY L1996-06-01 ~ 1996-11-01; GRAY; 2C.LSI; T |
64581PA030MA |
US $19.97 |
||
|
64315D
|
64315D
64581PA020EO KNOBRB1996-06-01 ~ 1996-11-01; BEIGE; 2C.LSI; T |
64581PA020EO |
US $2.97 |
||
|
64315D
|
64315D
64581PA020MD COVERKNOB1996-06-01 ~ 1996-11-01; GRAY; 2C; T |
64581PA020MD |
US $2.97 |
||
|
64320
|
64320
64400PA010 PADFRAME RC1996-06-01 ~ 1996-11-01; 2C |
64400PA010 |
US $349.75 |
||
|
64320D
|
64320D
64230PA520 PAD ASSY RH1996-06-01 ~ 1996-11-01; 2C.LSI |
64230PA520 |
US $101.10 |
||
|
64320E
|
64320E
64230PA530 PAD ASSY LH1996-06-01 ~ 1996-11-01; 2C.LSI |
64230PA530 |
US $101.10 |
||
|
64333
|
64333
64580PA100
HOOK R CUSHION
1996-06-01 ~ 1996-11-01; 2C |
64580PA100 |
— | ||
|
64333E
|
64333E
64590PA300 HOOK 20G RC RH1996-06-01 ~ 1996-11-01; 2C |
64590PA300 |
US $15.29 |
||
|
64333F
|
64333F
64590PA310 HOOK 20G RC LH1996-06-01 ~ 1996-11-01; 2C |
64590PA310 |
US $15.29 |
||
|
64340
|
64340
64440PA020EO
Cover-rear cushion
1996-06-01 ~ 1996-11-01; BEIGE; 2C.LSI; T |
64440PA020EO |
— | ||
|
64340
|
64340
64440PA020MD COVER ASSYRC1996-06-01 ~ 1996-11-01; GRAY; 2C.LSI; T |
64440PA020MD |
US $2,132.50 |
||
|
64343C
|
64343C
64581PA100EO KNOB RB1996-06-01 ~ 1996-11-01; BEIGE; 2C.LSI; T |
64581PA100EO |
US $1.98 |
||
|
64343C
|
64343C
64581PA100MD KNOB RB1996-06-01 ~ 1996-11-01; GRAY; 2C; T |
64581PA100MD |
US $1.98 |
||
|
64343E
|
64343E
64581PA110MA KNOBINTER LOCK1996-06-01 ~ 1996-11-01; GRAY; 2C; T |
64581PA110MA |
US $1.70 |
||
|
64350A
|
64350A
64490PA190EO
Cover complete-rear back rest,right
1996-06-01 ~ 1996-11-01; BEIGE; 2C.LSI; T |
64490PA190EO |
— | ||
|
64350A
|
64350A
64490PA190MD
Cover complete-rear back rest,right
1996-06-01 ~ 1996-11-01; GRAY; 2C.LSI; T |
64490PA190MD |
— | ||
|
64350B
|
64350B
64490PA200EO
Cover complete-rear back rest,left
1996-06-01 ~ 1996-11-01; BEIGE; 2C.LSI; T |
64490PA200EO |
— | ||
|
64350B
|
64350B
64490PA200MD
Cover complete-rear back rest,left
1996-06-01 ~ 1996-11-01; GRAY; 2C.LSI; T |
64490PA200MD |
— | ||
|
64371E
|
64371E
64590PA000 HINGE ASSY RB RH1996-06-01 ~ 1996-11-01; 2C |
64590PA000 |
US $56.07 |
||
|
64371F
|
64371F
64590PA010 HINGE ASSY RB LH1996-06-01 ~ 1996-11-01; 2C |
64590PA010 |
US $56.07 |
||
|
64371G
|
64371G
64590PA020 CTR HINGE ASSY1996-06-01 ~ 1996-11-01; 2C.LSI |
64590PA020 |
US $58.48 |
||
|
64375
|
64375
64590PA100 STRIKER RB1996-06-01 ~ 1996-11-01; 2C |
64590PA100 |
US $11.04 |
||
|
64375
|
64375
64590PA100 STRIKER RB1996-06-01 ~ 1996-11-01; 2C |
64590PA100 |
US $11.04 |
||
|
010106160
|
010106160
010106160 FLANGE BOLT-PILOT |
010106160 |
US $0.28 |
||
|
010106160
|
010106160
010106160 FLANGE BOLT-PILOT |
010106160 |
US $0.28 |
||
|
010108203
|
010108203
010108203
FLANGE BOLTPLT
|
010108203 |
— | ||
|
010108250
|
010108250
010108250
FLANGE BOLTPLT
|
010108250 |
— | ||
| replacement | |||||
|
010108250
|
010108250
010108257 FLANGE BOLT |
010108257 |
US $0.85 |
||
|
010408160
|
010408160
010408160 FLANGE BOLT |
010408160 |
US $0.42 |
||
