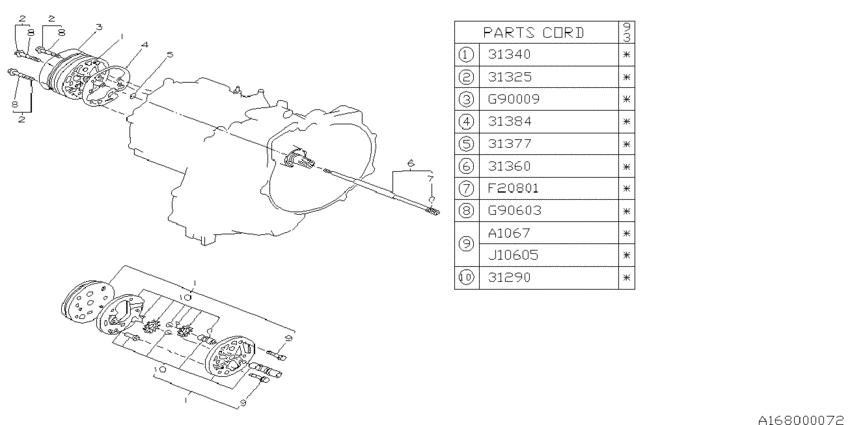

At,oil pump (GEN +EUR; 1992-08-01~) Diagram Subaru VIVIO
- Year
- 1992 - 1993
- Sales region
- Europe
- drive
- 2WD
- Number of doors
- 5D
- grade
- GLI
- Destinat
- GEN
- Steering
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31290
|
31290
31290KA000 ｷﾞﾔ ｾﾂﾄ,ｵｲﾙ ﾎﾟﾝﾌﾟ1992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
31290KA000 |
US $277.54 |
||
|
31325
|
31325
31325KA002 BOLT ASSYSEAL1992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
31325KA002 |
US $2.97 |
||
|
31340
|
31340
31340KA020 PUMP ASSYOIL1992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
31340KA020 |
US $397.90 |
||
|
31360
|
31360
31360KA050 ｼﾔﾌﾄ ｺﾝﾌﾟﾘｰﾄ,ｵｲﾙ ﾎﾟﾝﾌﾟ ﾄﾗﾝｽﾐﾂｼﾖﾝ1992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
31360KA050 |
US $42.76 |
||
|
31377
|
31377
31377KA000 RINGSEAL1992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
31377KA000 |
US $3.82 |
||
|
31384
|
31384
31384KA002 GSKTOIL PUMP1992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
31384KA002 |
US $2.97 |
||
|
A1067
|
A1067
800106700 BOLT6X30X801992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL#; 6X30X18 |
800106700 |
US $0.57 |
||
|
F20801
|
F20801
805208010 CIRCLIPOTR 91992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL# |
805208010 |
US $0.57 |
||
|
G90009
|
G90009
806900090 Seal O-ring1992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL#; 114X2 |
806900090 |
US $5.10 |
||
|
G90603
|
G90603
806906030 seal, O-ring1992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL#; 6.9X1.2 |
806906030 |
US $0.57 |
||
|
J10605
|
J10605
808106050 BOLT6X30X181992-08-01 ~ 1993-07-01; GEN.RHD.GL# +EUR.LHD.2WD +EUR.RHD.2WD.GL#; 6X30X18 |
808106050 |
US $0.42 |
